Piston Pump 250ml Liquid Juice Bottle Packaging Filling Machines Machine

Introduction:

It can fill liquid automatically, It is the ideal choice for packing juice, paste, drinks, cosmetics products, or skin care products. Automated packaging can help you reduce labor costs and errors, and improve working efficiency and production quality.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This liquid filling machine is suitable the following industries:

* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)

* Food Filling Machine Line (such as olive oil, honey, sauce, oil, chocolate, vinegar etc.)

* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc.)

* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc.)

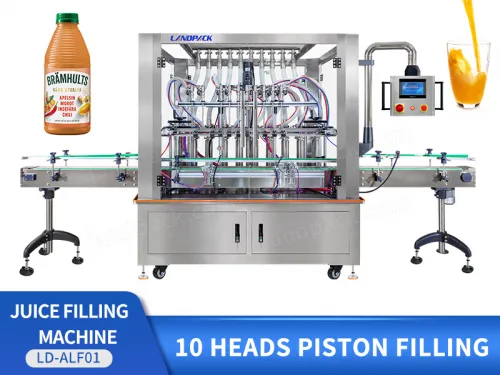

Piston Pump 250ml Liquid Juice Bottle Packaging Filling Machines Machine

FEATURES

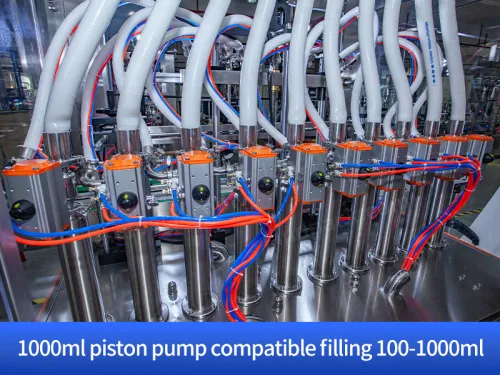

Piston-type linear filling with high precision filling, easy installation and commissioning, cleaning and maintenance is simple, no dripping

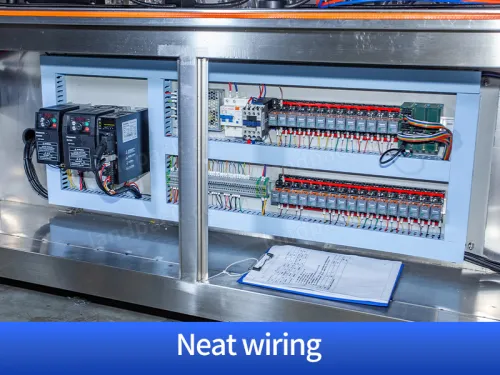

Adopt world-renowned brands of electrical and pneumatic components, with low failure rate, reliable performance and long service life.

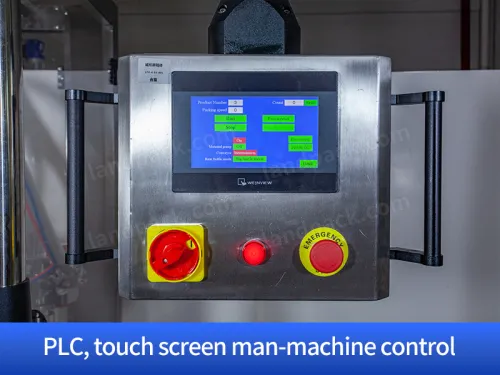

The filling volume and filling speed are easy to adjust, touch screen is easy to operate, and the appearance is beautiful.

It is widely used for food and beverage industry, chemical industry, cosmetic industry, pharmaceutical industry, and etc

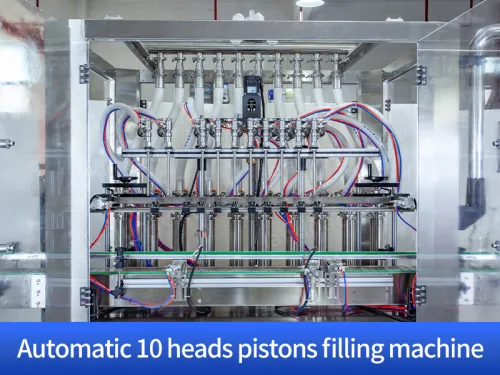

100ML-5000ML Automatic 10 Heads Piston Filling Olive Oil Filling Bottle Machine

WORKFLOW

Automatic Filling

PARAMETER

Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
