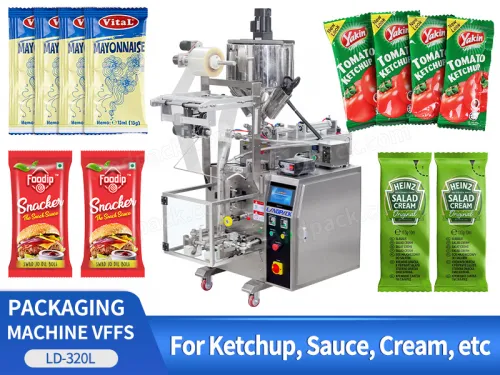

Automatic Plastic Bag Ketchup Tomato Sauce Sachet Filling Back Side Sealing Machine VFFS Packaging Equipment

Introduction:

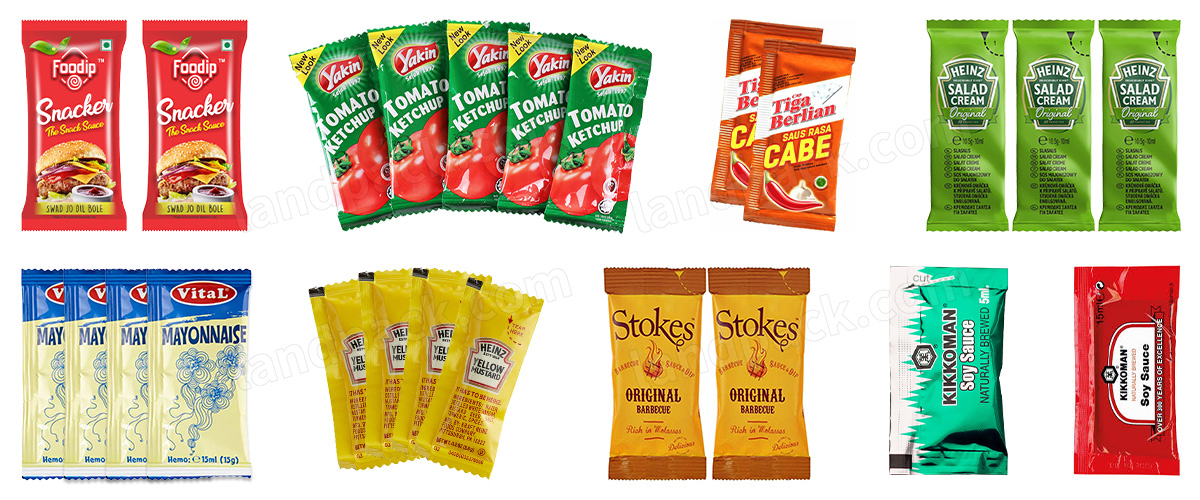

It is suitable for bagged liquid and paste. It is widely used in packaging food like honey, ketchup, and personal care products like shampoo.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

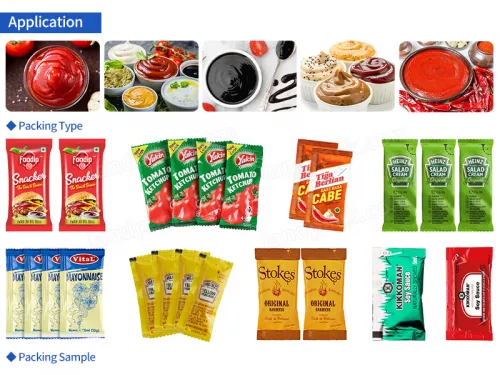

Application

It is suitable for bagged liquid and paste. It is widely used in packaging food like honey, ketchup, and personal care products like shampoo.

Automatic Plastic Bag Ketchup Tomato Sauce Sachet Filling Back Side Sealing Machine VFFS Packaging Equipment

FEATURES

1. Imported PLC touch type 7-inch large screen.

2. Packaging and sealing intelligent temperature control display, with temperature adjustable at will.

3. Use precise metering pumps/piston pumps for metering.

4. Installation and composition of imported components, with a service life of 8-10 years.

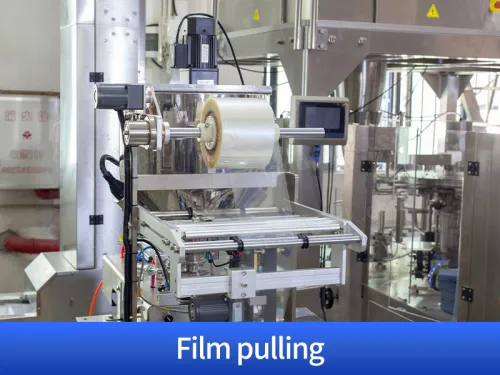

5. Intelligent film loading device adopts multiple film rolling shafts, ensuring stable film feeding, smooth film pulling, and no wrinkles.

Multifunction Liquid Sauce Sided Seal Sachet Packing Machine

WORKFLOW

Automatic Film Roll Making

Automatic Liquid Filling

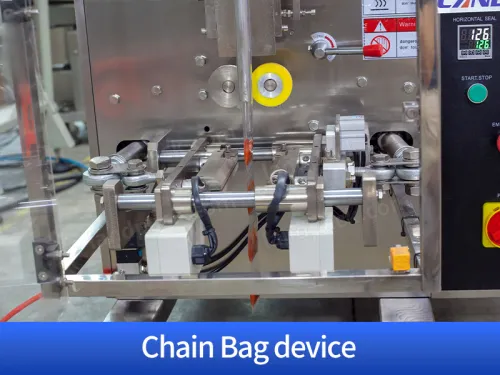

Automatic Sealing

PARAMETER

Vertical Vffs Packing Machine
Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
