Automatic Ketchup Pouch Liquid Doypack Packaging Machine Tomato Paste Premade Bag Packing Machine

Introduction:

Suitable for packing liquid products, such as compoundfruit and vegetable enzyme drink, tomato sauce, honey,sea-buckthorn puree, collagen peptide drink and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for packing liquid products, such as compoundfruit and vegetable enzyme drink, tomato sauce, honey,sea-buckthorn puree, collagen peptide drink and so on.

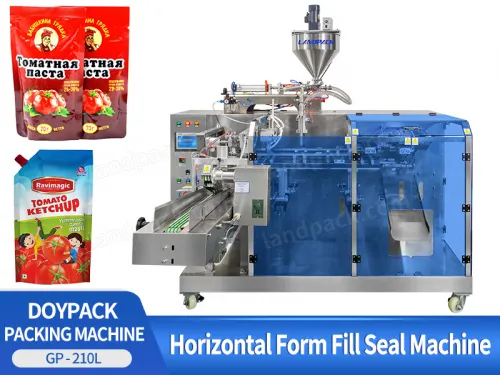

Automatic Ketchup Pouch Liquid Doypack Packaging Machine Tomato Paste Premade Bag Packing Machine

FEATURES

1.Automatic doypack packing machine adopt precision indexing device and PLC to control each action and working station to makesure the machine operates easily and does accurately.

2.The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

3.Automatic checking system can check bag situation, filling and sealing situation.

4.The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.

Automatic Detergent Horizontal Form Fill Seal Machine Premade Pouch Packing Machine

WORKFLOW

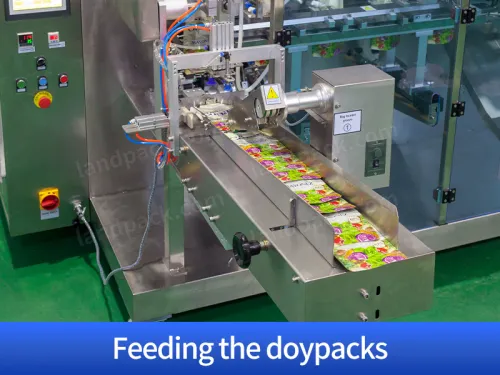

Automatic Bags Feeding

Automatic Bags Open

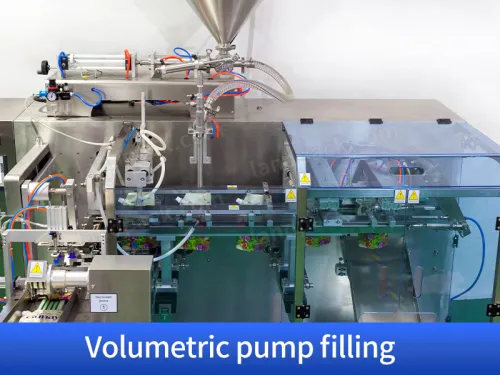

Automatic Filling

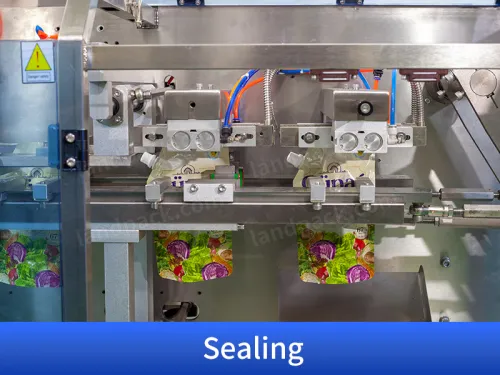

Automatic Bags Sealing

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
