Automatic Multilane Tomato Ketchup Sachet Counting Into Bag Packaging Line

Introduction:

Automatic multilane liquid sachet counting into bag packaging line is suitable for kinds of liquid products, such as ketchup, olive oil, shampoo, shower gel, fruit juice, honey, mayonnaise, miso, mouthwash, sauce, jam, jelly, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Automatic multilane liquid sachet counting into bag packaging line is suitable for kinds of liquid products, such as ketchup, olive oil, shampoo, shower gel, fruit juice, honey, mayonnaise, miso, mouthwash, sauce, jam, jelly, etc.

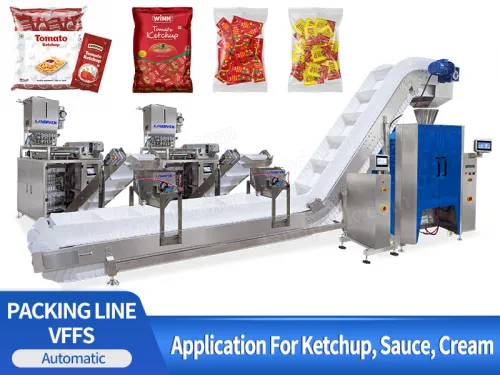

Automatic Multilane Tomato Ketchup Sachet Counting Into Bag Packaging Line

FEATURES

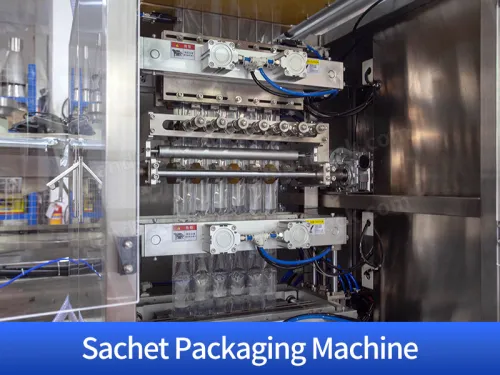

1. Enhanced Efficiency with Dual Liquid Multi-Channel Packaging Machines: The inclusion of two liquid multi-channel packaging machines significantly boosts your production and packaging capabilities.

2. Precise Counting and Collection: At the conveyor outlet, a counting sensor and collection device work in tandem. They accurately collect the desired number of small bags and seamlessly discharge them onto the chain conveyor.

3. High-Sensitivity Imported Counting Sensor: The counting sensor, sourced internationally, exhibits exceptional sensitivity. This ensures precise counting, meeting your target quantity consistently.

4. Servo Motor-Driven Inclined Conveyor: The inclined conveyor is powered by a servo motor. It remains stationary unless materials are present, optimizing efficiency and preventing unnecessary movement.

Automatic Multilane Tomato Ketchup Sachet Counting Into Bag Packaging Line

WORKFLOW

01

Bag Formation

02

Liquid Filling

03

Sealing

04

Cutting

05

Batch Coding

06

Counting into Bucket Elevator

07

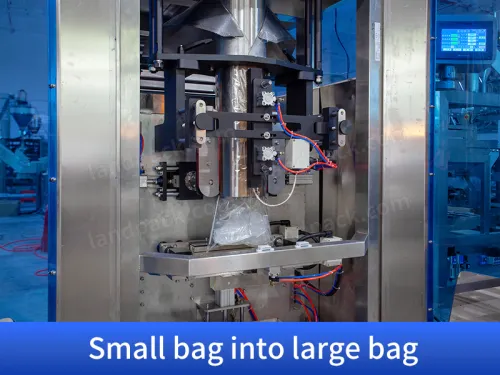

Packaging By VFFS

08

Finished Product Output

PARAMETER

Automatic Multilane Tomato Ketchup Sachet Counting Into Bag Packaging LineMulti-Channel Packaging Machines Parameter
ModelLD-480YLD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track
Filling Method1. Piston pump; 2. Peristaltic Pump
CapacityMax.40 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min, 2.8kw0.8 mpa, 0.8m³/min, 4.1kw0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg
Vertical Form Fill Seal Machine Parameter
ModelLD-420LD-520LD-720
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm
Pakaging Rate5-60 bags/min5-60 bags/min5-55 bags/min
Film WidthMax.420mmMax.520mm150-Max.720mm
Measurement Range150-1500ml5-2000ml4000ml
