Application:
Automatic Ghee Cooking Oil Sauce Jar Bottles Filling Capping Labeling Machine Line is suitable for liquid material: ketchup, ghee, hand sanitizer, liquid soap, syrup, peanut butter, shampoo, pizza sauce, honey, paste, olive oil, mayonnaise, laundry detergent, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Automatic Ghee Cooking Oil Sauce Jar Bottles Filling Capping Labeling Machine Line is suitable for liquid material: ketchup, ghee, hand sanitizer, liquid soap, syrup, peanut butter, shampoo, pizza sauce, honey, paste, olive oil, mayonnaise, laundry detergent, etc.
FEATURES
1. Piston-type metering cylinder, servo-driven, suitable for filling viscous, inviscid, and corrosive liquid;
2. The special anti-drip filling head and enlarged rotary valve will not block or leak when filling large-grain liquid;
3. The design of horizontal stirring and horizontal pushing improves the filling speed and solves the problem of uneven layering of oil;
4. The structures that are often disassembled and washed are all connected by easily disassembled parts, which is convenient for cleaning;
5. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as ghee, edible oil, sauce, daily necessities, medicine, etc;
6. Complete set, the whole line is fully automatic, saving labor.

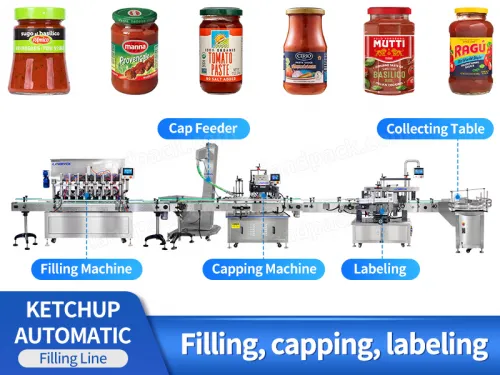

WORKFLOW

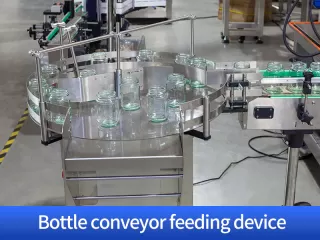

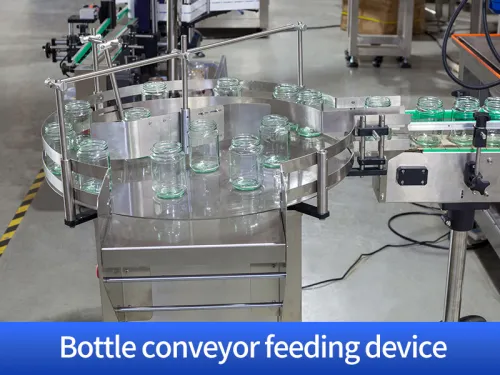

Automatic Bottle Feeder

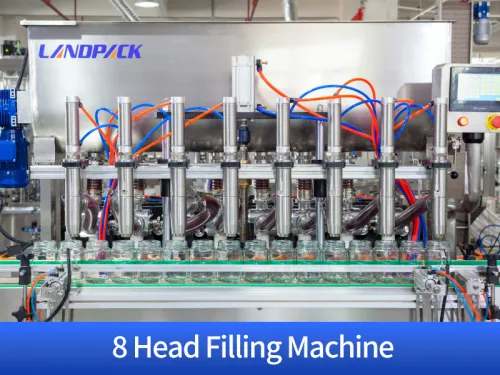

Automatic Pistons Filling

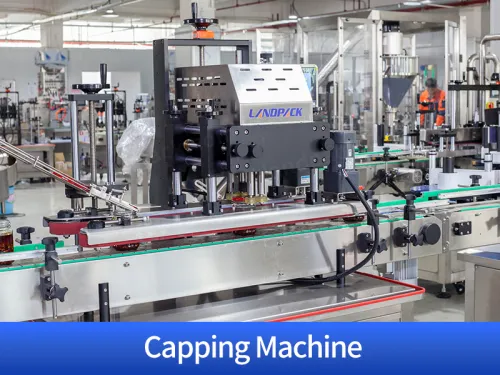

Automatic Bottle Capping

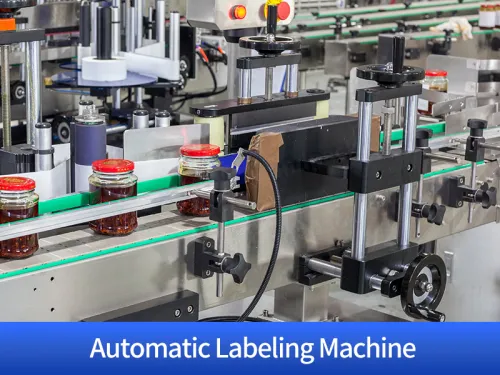

Automatic Bottle Labeling
Finished Product Output
PARAMETER
Automatic Bottle feeder | ||||
Machine Model | LD-LP800N | |||
Power Supply | 220V/110V, 50-60Hz, 200W | |||
Turntable Diameter | 800mm | |||
Suitable Bottle Diameter | 20-100mm | |||
Suitable Bottle Height | 30-320mm | |||
Working Speed | 40-60bottles/min(depending on bottle size) | |||
Package Size | 1230*1010*1260mm | |||
Gross Weight | 141kg |
Bottle Liquid filling machine | |||||||
Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 | |||
Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | |||
Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min | |||
Measurement Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW | |||
Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | |||
Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | |||
Weight | 600kg | 650kg | 800kg | 800kg | |||
Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
Autoamtic capping machine | ||||||
Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |||
Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min | |||
Bottle cap diameter | Φ22mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | |||
Bottle diameter | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | |||
Bottle sealing height | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | |||
Power | 1.5KW | 2KW | 1.5KW | |||
Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |||
Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa | |||
weight | 250kg | 350kg | 300kg | |||
Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |
Automatic Labeling Machine | |||||
Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |||
Label length | 20mm~300mm | 20mm~300mm | |||
Label width/height | 20mm~200mm(can be customized) | 20mm~200mm(can be customized) | |||
Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | |||
Roll Label outer diameter | 300mm | 300mm | |||
Roll Label inner diameter | 76mm | 76mm | |||
Accuracy | ±1mm | ±1mm | |||
Label speed | 40-100pcs/min | 60-120pcs/min | |||
Conveyor speed | 5~25m/min | 15~20m/min | |||
Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) | |||
Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |||
Voltage | 220V can be customized 4KW | 220V can be customized 4KW | |||
Weight | 350KG | 450KG | |||
Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
Want Customize Filling Canning Machine Line Solution?
