Applications

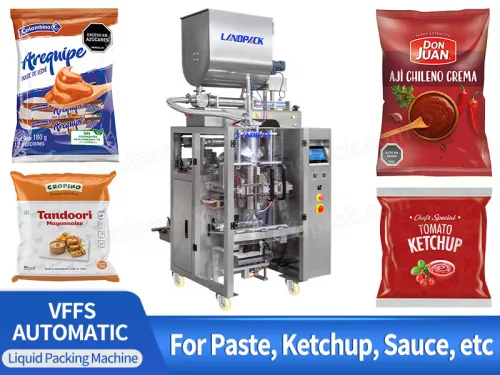

Automatic Tomato Sauce Bag Form Filling Packaging Machine

Introduction:

Suitable for normal type, high ropy type liquid items, such as ketchup, chili sauce, olive oil, mayonnaise, miso, ginger garlic paste, paste, peanut butter, shampoo, cream, jam, milk, juice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for normal type, high ropy type liquid items, such as ketchup, chili sauce, olive oil, mayonnaise, miso, ginger garlic paste, paste, peanut butter, shampoo, cream, jam, milk, juice, etc.

Automatic Tomato Sauce Bag Form Filling Packaging Machine

FEATURES

1. Horizontal Mixer: This mixer ensures thorough blending of the sauce, resulting in a consistent mixture.

2. Heating Device: Equipped with a heating mechanism, this feature prevents any clogs or blockages during the process.

3. Anti-Leak Valve: The system incorporates an anti-leak valve to prevent any unintended sauce leakage.

Automatic Tomato Sauce Bag Form Filling Packaging Machine

WORKFLOW

Stirring Device: Used to achieve uniformity in the sauce.

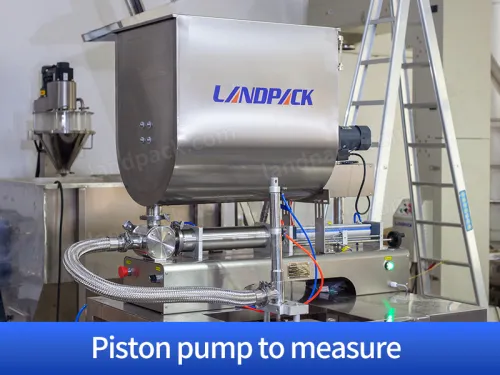

Piston Pump: Precisely measures and dispenses the sauce.

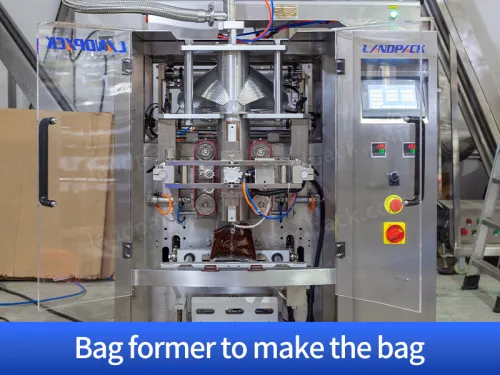

Bag Former: Shapes the bag for packaging.

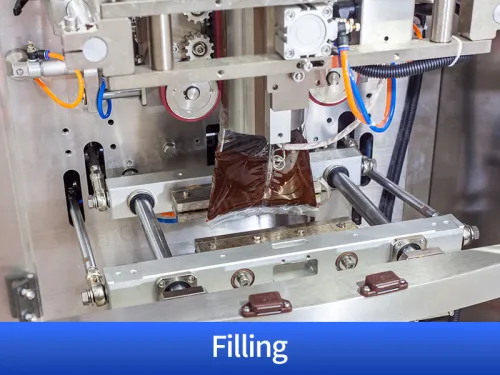

Filling: The sauce is filled into the bag.

Sealing: The bag is securely sealed to maintain freshness.

PARAMETER

Model	LD-420L	LD-520L	LD-720L
Film width	Max.420mm	Max.520mm	150-Max.720mm
Bag length	80-300mm	60-400mm	60-500mm
Bag width	60-200mm	100-250mm	65-350mm
Film roll diameter	Max.600mm	Max.600mm	Max.600mm
Packaging rate	5-60 bags/min	5-40 bags/min	5-30 bags/min
Range of measurement	1000ml	2000ml	5000ml
Film thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Power	220V, 50/60Hz, 3kw	220V, 50/60Hz, 3kw	220V, 50/60Hz, 3.5kw
*Machine size(LWH)*	121710151343mm	148810801490mm	178013502050mm
