Automatic Liquid Premade Pouch Doypack Packing Machine With Explosion-proof Device

Introduction:

This liquid filling packing machine suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as alcohol, honey, milk, oil, ketchup, paste, sauce, fruit  juice, hand wash, laundry liquid. After equipped with explosion-proof devices, it can be used for various flammable and explosive liquids, such as alcohol, spirits, disinfectant, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This liquid filling packing machine suitable for kinds of liquid products and can pack different premade bags. It is applied for various kinds of liquid such as alcohol, honey, milk, oil, ketchup, paste, sauce, fruit  juice, hand wash, laundry liquid. After equipped with explosion-proof devices, it can be used for various flammable and explosive liquids, such as alcohol, spirits, disinfectant, etc.

Automatic Liquid Premade Pouch Doypack Packing Machine With Explosion-proof Device

FEATURES

1. Different machine models available to meet a wide range premade bag size.

2. Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 3/ 4 side seal bag, spout pouch, stand up bag and irregular bag, ect.

3. With upgrade PLC control system, easy for operation on touch screen of parameter setting.

4. Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

Automatic Liquid Premade Pouch Doypack Packing Machine With Explosion-proof Device

WORKFLOW

01

Automatic Bags Feeding

02

Automatic Bags Open

03

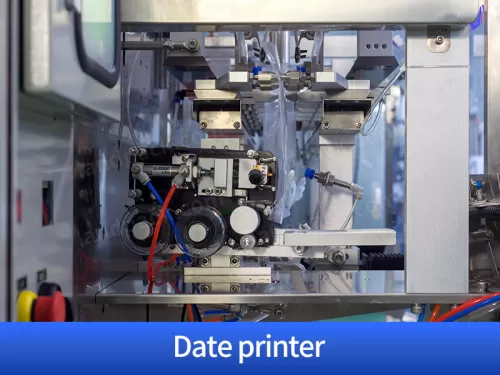

Automatic Coding

04

Automatic Filling

05

Automatic Bags Sealing

06

Product Outing

PARAMETER

Automatic Liquid Premade Pouch Doypack Packing Machine With Explosion-proof DeviceTypeLDSP-160LDSP-160YLDSP-210LDSP-260
Bag Type3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size110-230mm*80-160mm(L*W)70-100mm*110-230(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)
Filling Range10g-100g10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined 25-50bags/min(speed is determined 20-50bags/min (speed is determined20-50bags/min (speed is determined
by the product filling quantity)by the product filling quantity)by the product filling quantity)by the product filling quantity)
Machine weight800KG800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW2.0KW
Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling   5.Heating sealing 6.Output of product
Dimensions1750mm X 1285mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering,screw elevator

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
