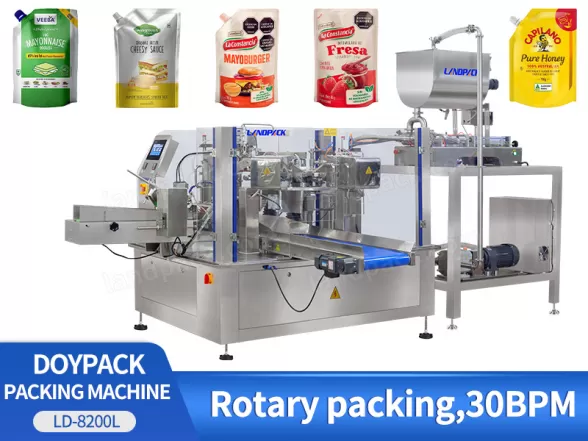

Automatic Rotary Stand Up Bag Packaging Machine Liquid Ketchup Premade Pouch Doypack Filling Machine

Introduction:

It is suitable for measuring packaging, such as tomato sauce, edible oil, honey, laundry detergent, chili sauce, cream, lotion, shampoo, juice, jam and other liquid products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for measuring packaging, such as tomato sauce, edible oil, honey, laundry detergent, chili sauce, cream, lotion, shampoo, juice, jam and other liquid products.

Automatic Rotary Stand Up Bag Packaging Machine Liquid Ketchup Premade Pouch Doypack Filling Machine

FEATURES

1.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2.Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

3.The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

4.Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.

5.Internal grooved cam design: The technology with high precision, suits for max. packing speed: 65 cycles/min with stable running.

Tomato Paste Rotary Stand Up Bag Doypack Packaging Machine Liquid Ketchup Premade Pouch Filling Machine

WORKFLOW

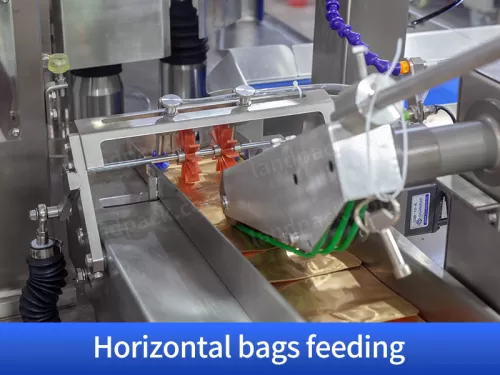

Automatic Bag Feeding

Automatic Bag Open

Bag Openning

Automatic Liquid Filling

Automatic Sealing

Date Printing

Finished Product Ouput

PARAMETER

	Automatic Rotary Doypack Liquid Packaging Machine
	Model	LD-8200D/ 8240D/ 8300D
	Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	size	W: 100-300mm L: 100-450mm
	Filling range	5-2500g (Depending on type of products)
	Packing speed	25-60 bags/min (The speed depends on type of products and packaging material used)
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
