Fully Automatic 6 Heads Piston Pump Filling Machine Line With Inject Printer

Application:

This machine is suitable for liquid filling in food, daily necessities, chemical and other industries, such as chili sauce, ketchup, jam, peanut butter, honey, face cream, laundry detergent, detergent, mayonnaise, shower gel, shampoo, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic 6 Heads Piston Pump Filling Machine Line With Inject Printer

FEATURES

1. According to the needs of different configurations of automatic equipment assembly;

2. All the machine structures are selected and designed according to the food hygiene standards;

3. The inner wall of the container in contact with the material is polished;

4. The structures that are often disassembled and washed are all connected by easily disassembled parts, which is convenient for cleaning;

5. The packing line is mainly suitable for packing all kinds of liquid, fluid, and paste material, such as juice, edible oil, sauce, daily necessities, medicine, etc;

6. Complete set, the whole line is fully automatic, saving labor.

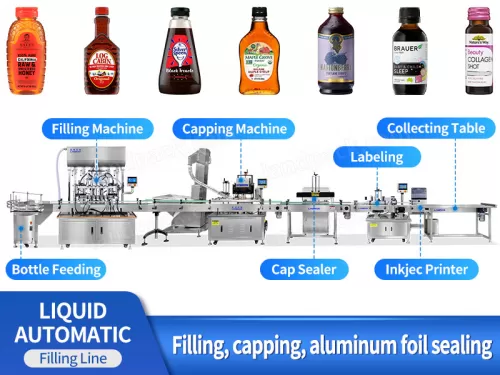

Fully Automatic 6 Heads Piston Pump Filling Machine Line With Inject Printer

VIDEOS

Automatic Bottle Feeder

Automatic 6 Heads Pistons Filling

Automatic Bottle Capping

Automatic Aluminum Foil Sealing

Automatic Bottle Labeling

Inkjet Printer

PARAMETER

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
