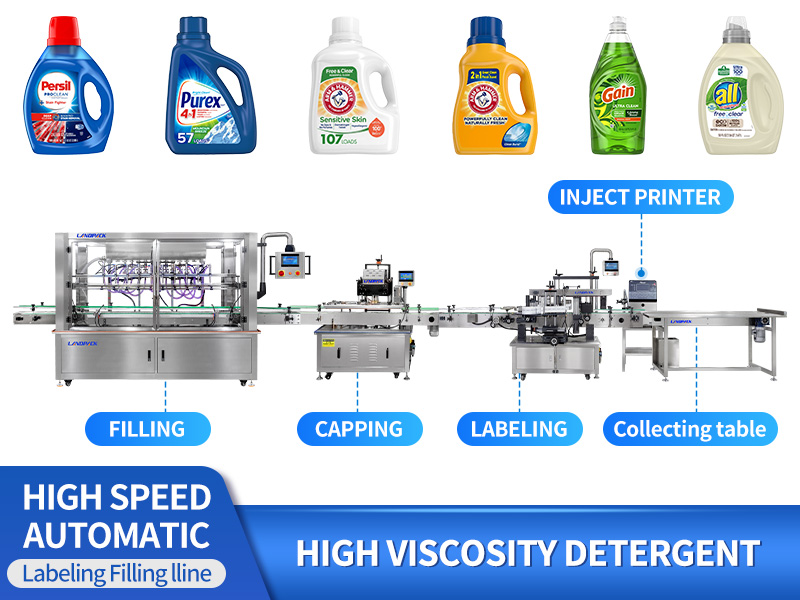

Automatic 4/6/8/10 Heads Gear Pump Liquid Filling Capping Labeling Machine Line

Application:
This liquid bottle filling line can be customized to fill various products, widely used in filling various thick liquids, such as edible oil, honey, cream, paste, sauce, lubricating oil, and viscous liquid products.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This liquid bottle filling line can be customized to fill various products, widely used in filling various thick liquids, such as edible oil, honey, cream, paste, sauce, lubricating oil, and viscous liquid products.

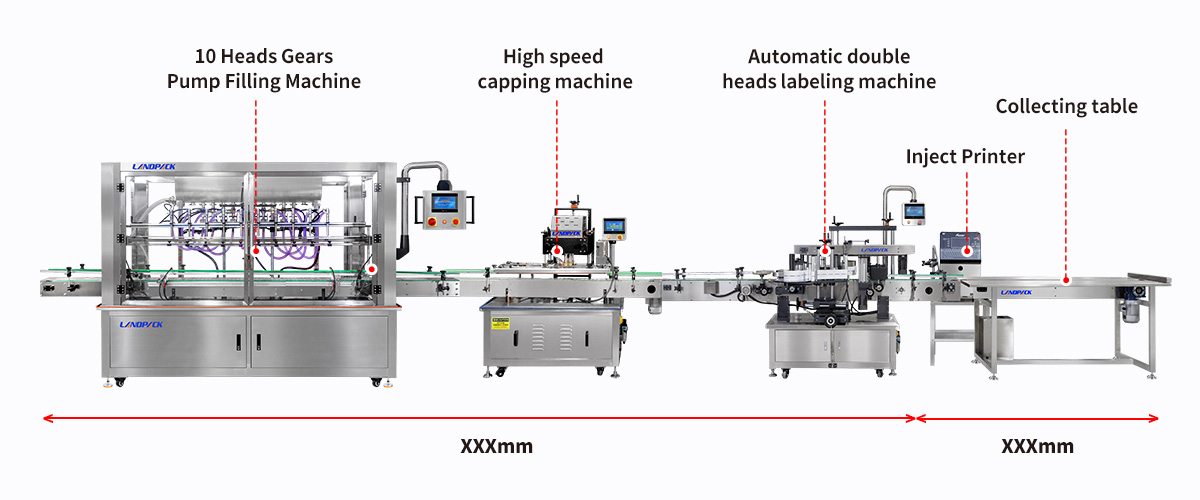

Automatic 4/6/8/10 Heads Gear Pump Liquid Filling Capping Labeling Machine Line

FEATURES

1. One liquid filling line is suitable for various bottle sizes, width and height can be adjusted.

2. The stainless steel design of the whole line is convenient for cleaning.

3. Servo control filling, high precision.

4. PLC control, humanized interface.

5. Suitable for filling 100ml-5L large-capacity liquid product.

Automatic 4/6/8/10 Heads Gear Pump Liquid Filling Capping Labeling Machine Line

PARAMETER

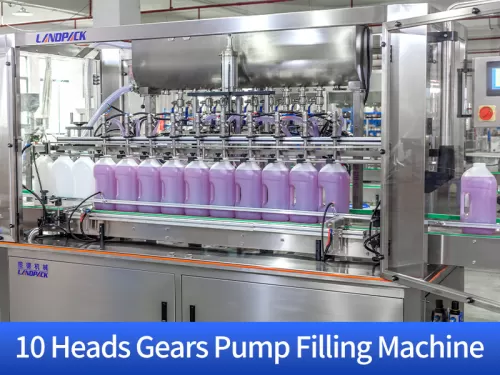

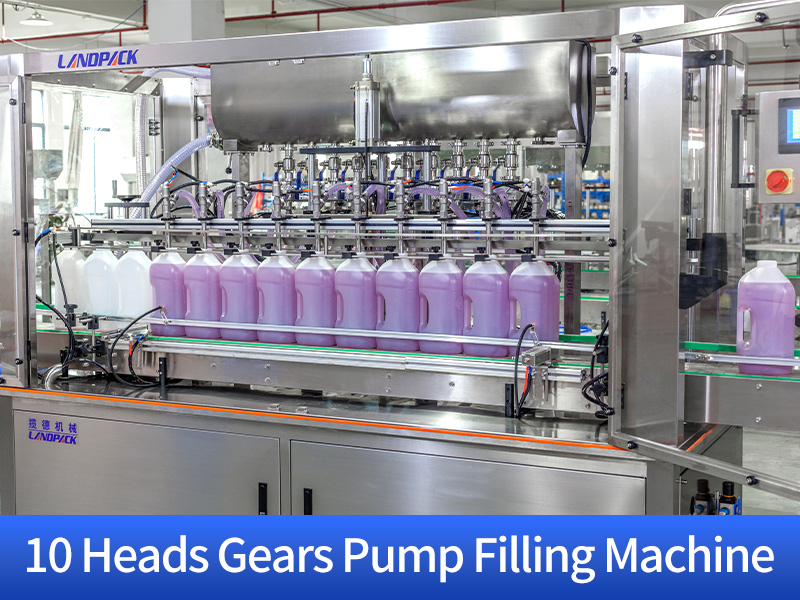

10 Heads Gears Pump Filling Machine
Model	LFZ-10	LFZ-8	LFZ-12	LFZ-06
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<50 bottles/min (the range of 100-500ml)	<40 bottles/min (the range of 100-500ml)	<60 bottles/min	<30 bottles/min (about 500ml)
Measurement Accuracy	±1%	±1%	±1%	±1%
Bottle Diameter	Φ30mm-Φ120mm (customizable)	Φ30mm-Φ120mm (customizable)	Φ30mm-Φ120mm (customizable)	Φ30mm-Φ120mm (customizable)
Sealing Height	30mm-240mm (customizable)	30mm-240mm (customizable)	30mm-240mm (customizable)	30mm-240mm (customizable)
Control system	PLC	PLC	PLC	PLC
Power	1.2KW	1.2KW	1.5KW	1KW
Power supply	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Airconsumption	0.6-1m³/min	0.6-1m³/min	0.6-1m³/min	0.6-1m³/min
Equipment Material	304	304	304	304

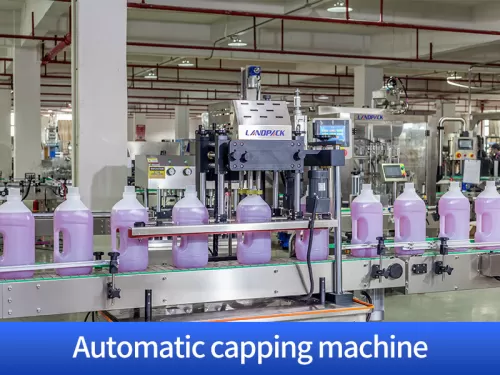

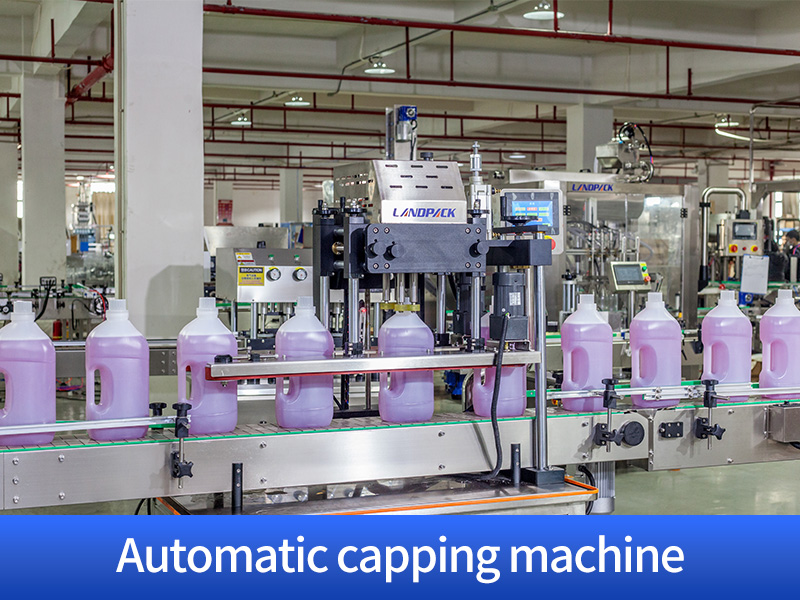

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

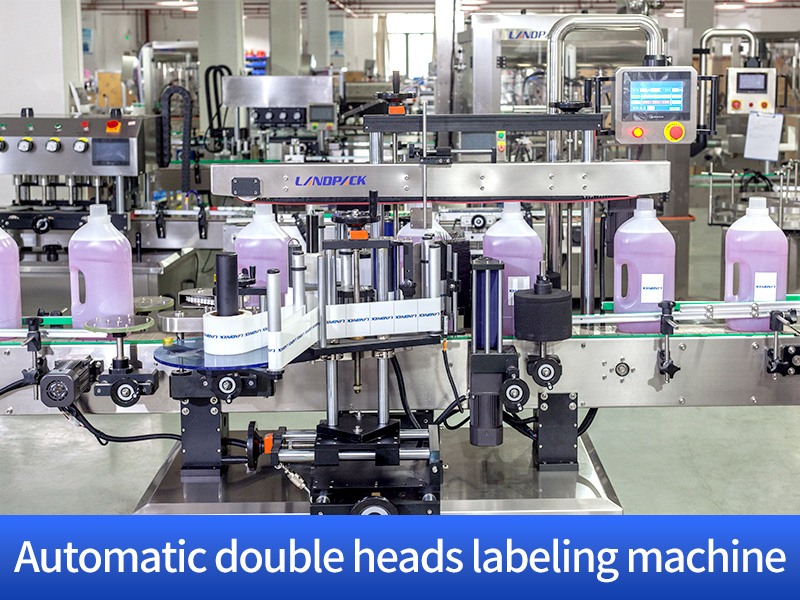

Automatic double heads labeling machine
Model	LFT-SM-200C(Single heads labeling)	LFT-SM-100C(Single heads labeling)
Labeling speed	10-40Bottle/min	15-20Bottles/min
Labeling accuracy	±1mm	±1mm
Label maximum width	200mm（Could be customized）	150mm（Could be customized）
Size of the object being attached	Height≤400mm; Thickness≤100mm（Could be customized）	Height≤400mm; Thickness≤100mm（Could be customized）
Label ID	Φ76.2mm	Φ25.4mm
Label OD	MaxΦ330mm	MaxΦ230mm
Voltage	220V、50HZ	220V、50HZ
Power	3.5KW	2.5KW
Weight	500kg	400kg
Dimension	L3002W1478H1810mm	L2950W1400H1810mm

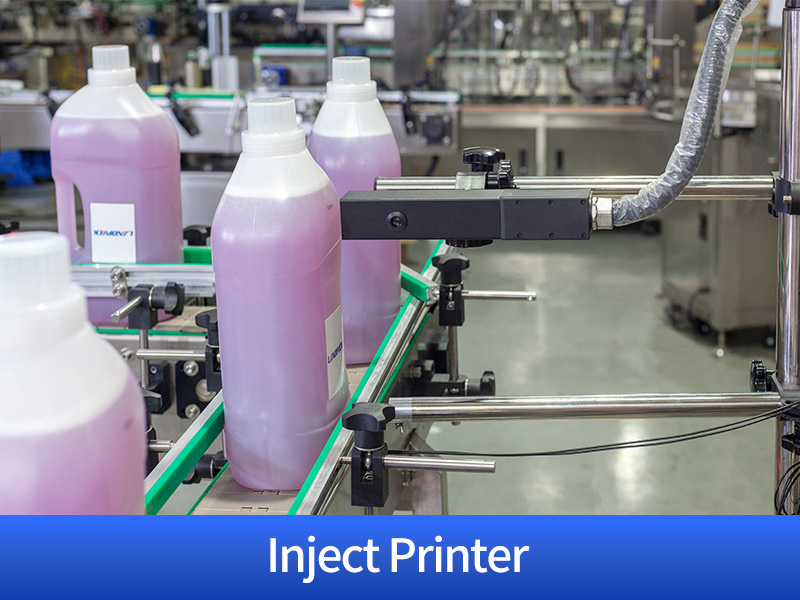

			Inject Printer
			Equipment Specifications	Size: 1358940 (operating screen) / 1508540 nozzle
			Language	English
			Coding Resolution	600DPI
			Calculator	The serial number, the box number, and the pallet number can be flexibly set.
			Printing Height	1-12.7mm
			Printing Speed	0-30 m/min (600 DPI)
			Line Speed	Can be set, automatically measured or external synchronizer to confirm line speed.
			Date Format	Multiple formats of date mode
			Use Consumables	HP ink cartridge
			Consumables Usage	One ink cartridge can print 3mm characters 1.4 million words
			Power	AC 100V-240V 50-60HZ
			Coding Distance	The nozzle is within 6 mm of the product.

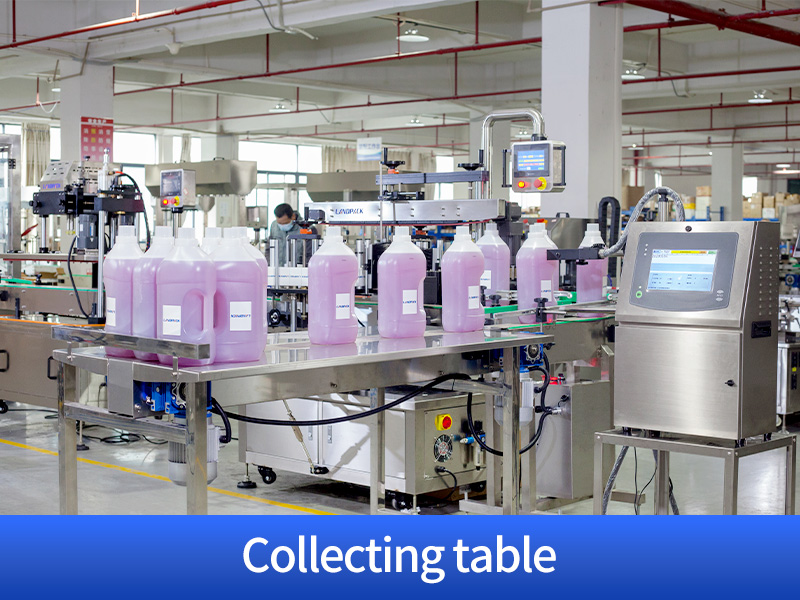

			Collecting Table
			Capacity	30-50Bottle（Could be customized）
			Material	Stainless Steel 304
			Dimension	3002000100mm（Could be customized）
			Weight	200KG
