High Speed Liquid Bottle Jar Filling Capping Labeling Line With Weight Detector

Application:
This piston pump liquid filling line is suitable for peanut butter, juice, honey, fruit jam, butter, olive oil, tomato sauce, chocolate paste, shampoo, body wash, cooking oil, liquid detergent, dishwashing liquid, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

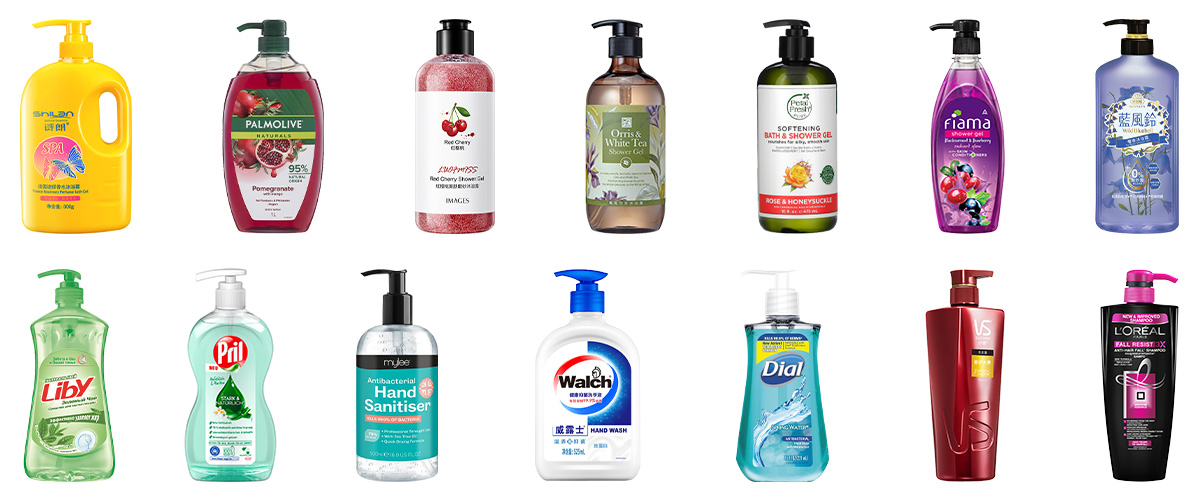

This piston pump liquid filling line is suitable for peanut butter, juice, honey, fruit jam, butter, olive oil, tomato sauce, chocolate paste, shampoo, body wash, cooking oil, liquid detergent, dishwashing liquid, etc.

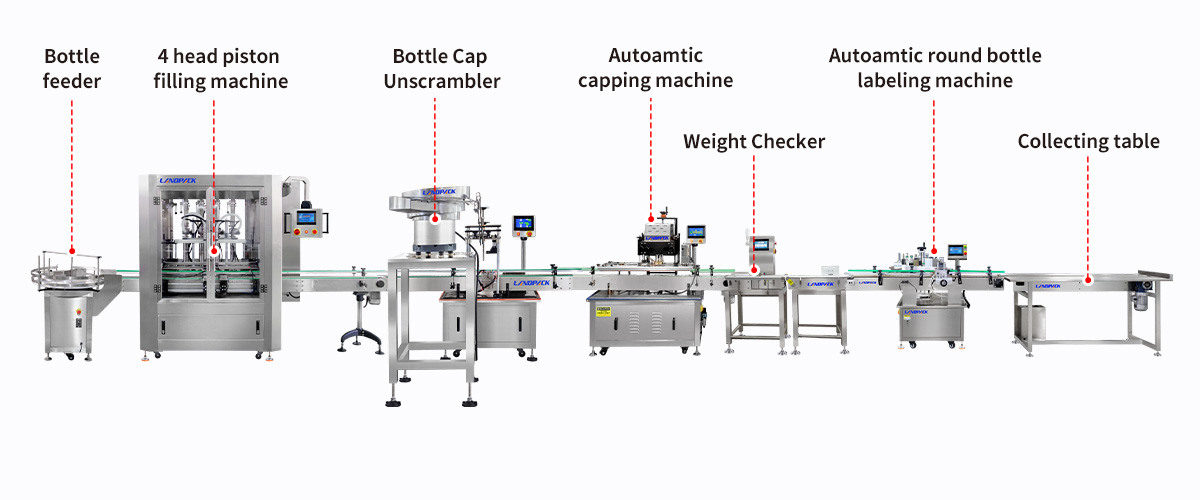

High Speed Liquid Bottle Jar Filling Capping Labeling Line With Weight Detector

FEATURES

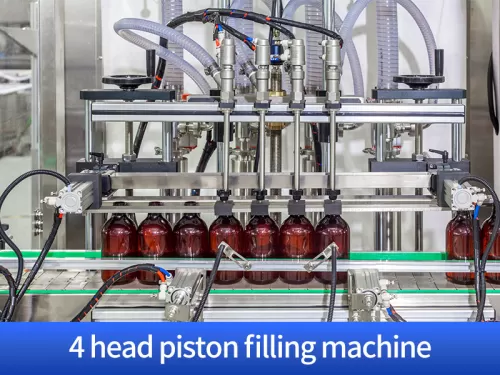

1. 4-head piston filling machine: High-precision filling system with accuracy up to ±1%.

2. Fully automatic capping machine: Cap feeder system saves labor and improves efficiency.

3. Linear capping machine: Designed for bottles of different sizes, with easy adjustment for different bottle sizes.

4. Sensor recognition system: Automatically stops the filling, capping, and labeling process if no bottle is detected. Ensures maximum safety and efficiency.

5. Stainless steel body: Easy to clean and maintain, with a long lifespan.

High Speed Liquid Bottle Jar Filling Capping Labeling Line With Weight Detector

PARAMETER

	Automatic bottle feeder
	Model	LFL-800
	Capacity	10rpm
	Bottle diameter	Φ30-100mm（Could be customized）
	Bottle height	30-120mm（Could be customized）
	Power	200W
	Voltage	220V、50HZ
	Weight	50kg

4 head piston filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

	Automatic cap feeder
	Machine model	LD-XG16E
	Bottle height	30-300mm
	Cap diameter	Φ18-70mm
	Bottle diameter	Φ20-160mm
	Working speed	20-60 bottles / minute (Depending on bottle and cap size and shape)
	Working voltage	AC220V/110V 50-60HZ
	Working pressure	0.4-0.6MPa
	Machine size	About 19307401600mm
	Package size	About 19709901740mm
	Net weight/Gross weight	About 150kg/334kg

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Autoamtic round bottle labeling machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

	Collecting Table
	Capacity	30-50Bottle（Could be customized）
	Material	Stainless Steel 304
	Dimension	3002000100mm（Could be customized）
	Weight	200KG
