Bag Given Automatic Premade Bag Zip Pouch Packaging Machine For Lubricant Oil

Introduction:

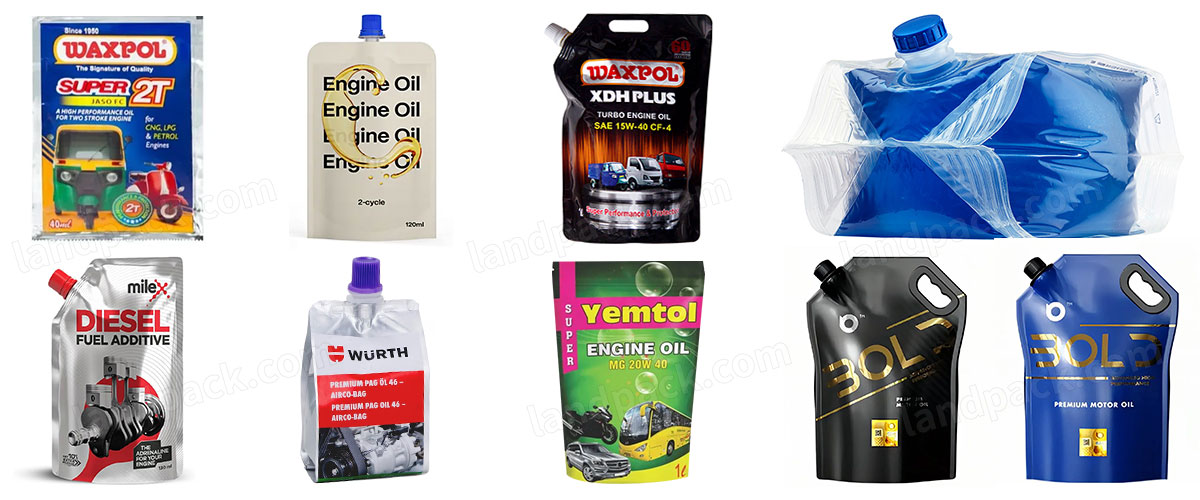

Suitable for liquid or semi-fluid products, such as lubricant oil, beverages, juice, ketchup, detergent, bechamel, mayonnaise, and so on bag-given packing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for liquid or semi-fluid products, such as lubricant oil, beverages, juice, ketchup, detergent, bechamel, mayonnaise, and so on bag-given packing.

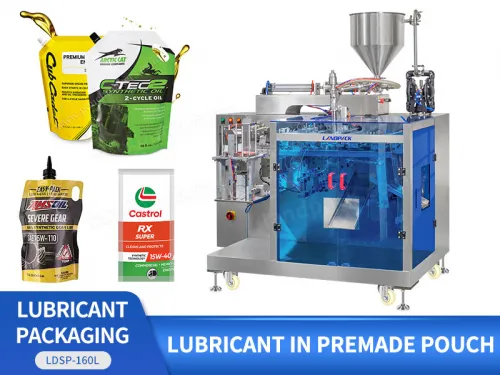

Bag Given Automatic Premade Bag Zip Pouch Packaging Machine For Lubricant Oil

FEATURES

1. A type of premade bag packaging machine.

2. LDSP-160L packing machine is simple to operate, stable to work, labor saving, beautiful appearance. The machine frame is made of carbon steel and the other part made of 304 stainless steel.

3. This machine is full automatic workflow, pouch delivery, date printing, pouch opening, filing, sealing, product completion. Suitable for liquid packaging.

4. The machine can be equipped with different metering systems, such as weighers, liquid pumps, auger fillers, and bucket chains, to handle diverse product filling and packaging needs for premade bags.

5. Modular heating, temperature control more accurate, heating fault have alarm prompt.

6. Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quaity and grade of the product.

Bag Given Automatic Premade Bag Zip Pouch Packaging Machine For Lubricant Oil

WORKFLOW

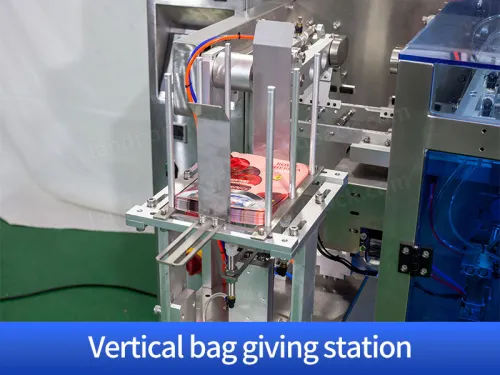

Pouch Loading

Pouch Picking

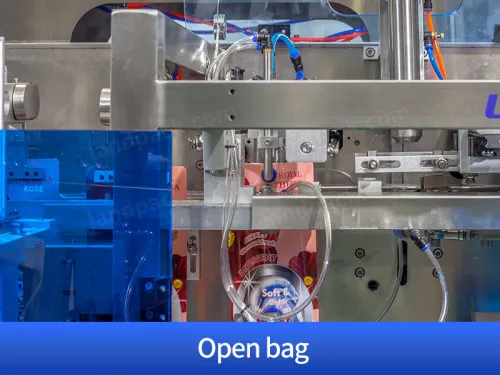

Pouch Opening

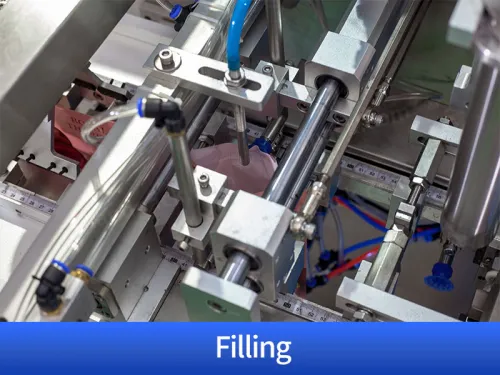

Liquid Filling

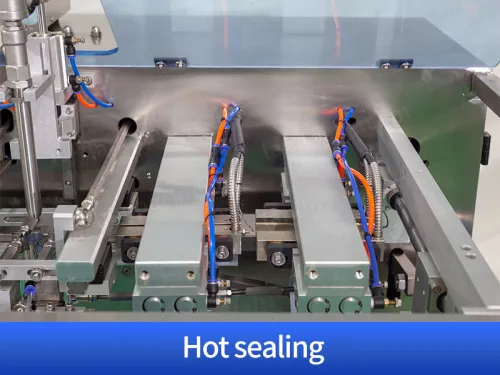

Sealing

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Work Flow					Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
