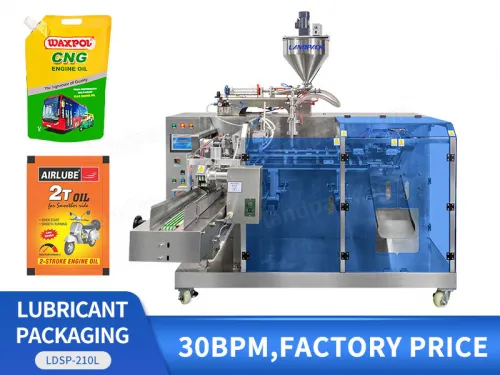

High Efficiency Lubricant Horizontal Premade Pouch Doypack Packing Machine

Introduction:

It can automatically complete a series of operations such as bag feeding, bag opening, measuring, sealing, and cutting, which greatly improves packaging efficiency. Suitable for lubricant, shampoo, detergent, syrup, honey, milk, olive oil, ketchup, paste, juice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Efficiency Lubricant Horizontal Premade Pouch Doypack Packing Machine

FEATURES

1. Different machine models available to meet a wide range premade bag size.

2. Customized main machine structure for various kinds of bag shape. Like doypack zipper bag, 3/ 4 side seal bag, spout pouch, stand up bag and irregular bag, ect.

3. With upgrade PLC control system, easy for operation on touch screen of parameter setting.

4. Machine machine can equipment with different metering system like weigher, liquid pump, auger filler, bucket chain for different kinds of product filling and packing in premade bag.

High Efficiency Lubricant Horizontal Premade Pouch Doypack Packing Machine

WORKFLOW

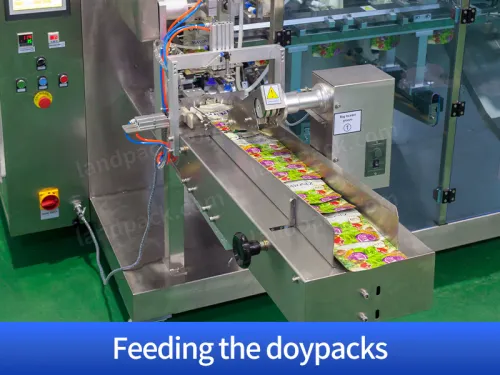

Automatic Pouch Feeding

Automatic Coding

Open The Bags

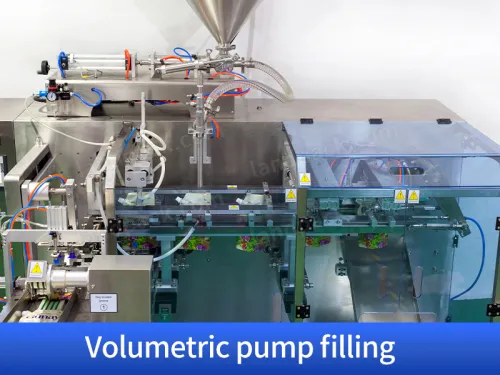

Automatic Volumetric Pump Filling

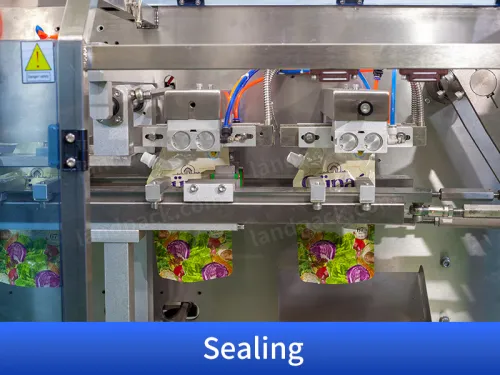

Automatic Sealing

Products Output

PARAMETER

Automatic horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min(speed is determined	25-50 bags/min(speed is determined	20-50 bags/min (speed is determined	20-50 bags/min (speed is determined
	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag, 2. Pick up the bag(coding), 3.Open the bag up and down, 4.Filling, 5.Heating sealing, 6.Output of product
Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator
