Premade Pouch Lubricant Oil Liquid Automatic Rotary Doypack Packing Machine

Introduction:

It is suitable for packaging various liquid products in special-shaped bags, such as various lubricant oil, laundry detergent, shower gel, shampoo, etc. Adopt well-known brand manufacturers for filling system, with stable performance and high efficiency.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Premade Pouch Lubricant Oil Liquid Automatic Rotary Doypack Packing Machine

FEATURES

1. Rotor pump designed for feeding and measuring high-viscosity liquid products.

2. 100L SS316 storage hopper for large liquid storage, equipped with a feeding alarm function.

3. Touchscreen operation with 8 preset liquid capacity options for user convenience.

4. Siemens PLC control system ensures stable operation of the entire machine.

5. Rotary doypack machine features "no bag, no filling" and "no filling, no sealing" functionalities.

6. Filling range from 100ml to 2500ml.

7. High-speed operation of 25-40 bags per minute, reducing labor costs.

Premade Pouch Lubricant Oil Liquid Automatic Rotary Doypack Packing Machine

WORKFLOW

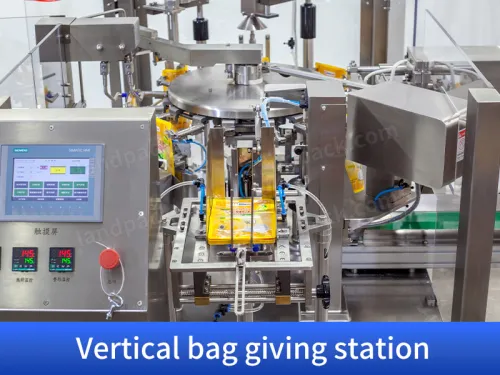

Automatic Bag Feeding

Automatic Bag Open

Automatic Liquid Filling

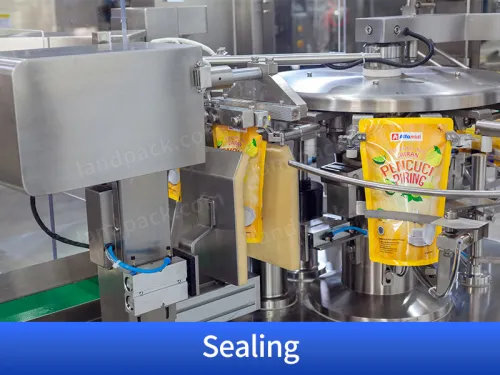

Automatic Sealing

Date Printing

Finished Product Ouput

PARAMETER

	Automatic Rotary Doypack Liquid Packaging Machine
	Model	LD-8200D/ 8240D/ 8300D
	Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	size	W: 100-300mm L: 100-450mm
	Filling range	5-2500g (Depending on type of products)
	Packing speed	25-60 bags/min (The speed depends on type of products and packaging material used)
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
