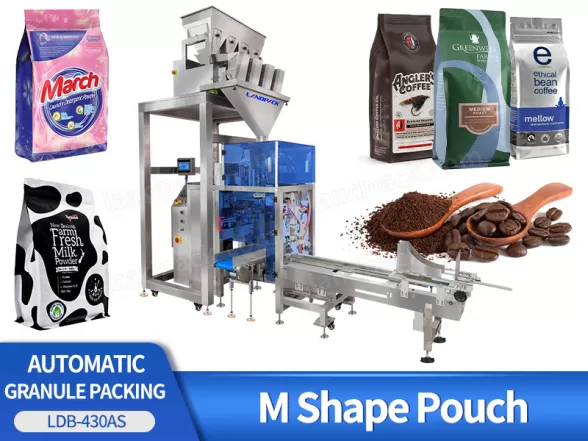

Automatic 4 Head Linear Weigher Mini Doypack Machine For M Shape Pouch

Introduction:

This m shape pouch packing machine is ideal for efficiently packing granules or powder materials, such as coffee beans, nuts, dry food, snacks, coffee powder, milk powder, and washing powder. It ensures precise dosing, high-quality sealing, and reliable packaging.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 4 Head Linear Weigher Mini Doypack Machine For M Shape Pouch

FEATURES

1.Specially Designed for Coffee Gusset Pouch Bags – This machine is specifically engineered to work seamlessly with coffee gusset pouches, ensuring optimal packaging performance for coffee products.

2.Linear Electric Scales for Stable and Accurate Weighing – Utilizes linear-type electric scales to weigh and fill coffee with high precision, providing stable and reliable results with every cycle.

3.Integration with Inkjet Coding Printer for Smart Production – The machine can be paired with an inkjet coding printer, enabling intelligent production with automatic date and batch code printing for enhanced traceability and convenience.

Automatic 4 Head Linear Weigher Mini Doypack Machine For M Shape Pouch

WORKFLOW

1. Z-type feeding conveyor to feed the products.

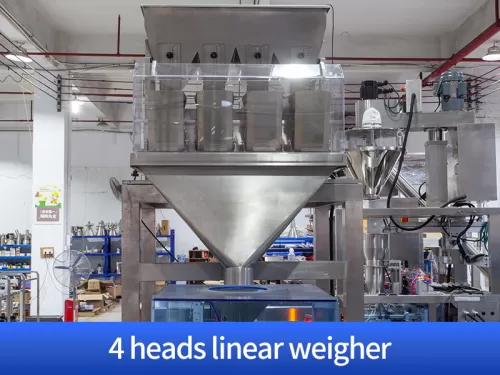

2. 4 heads linear weigher.

3. Automatic m shape pouch feeding.

4. Automatic inkjet date printing.

5. Automatic pick up m shape pouch.

6. Automatic opening m shape pouch.

7. Automatic weighing filling material into m shape pouch.

8. Automatic heat sealing m shape pouch finished products.

PARAMETER

Automatic 4 Head Linear Weigher Mini Doypack Machine For M Shape Pouch
Type	Low Cost Mini Doypack Premade Pouch 5-15kg Granular Packing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase	Gusset Bag, Zipper Bag, box bag
	of functional device）	(Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
