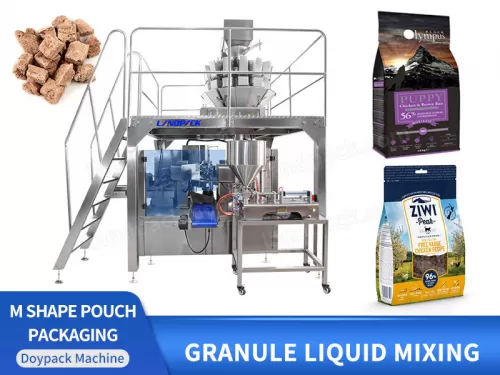

Automatic Dry Fruit Liquid Granule Mixing M Shape Pouch Packing Machine

Introduction:

This machine is tailored for the automatic packaging of liquids and mixed granules, ideal for products like nut, seeds, cereals, candies, chocolates, dried fruits, sun-dried tomatoes, pet food, and instant soup. It supports a wide range of pouch styles, including stand-up pouches, M-shaped Doypacks, zipper pouches, three-side seal bags, four-side seal bags, and flat bags.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Dry Fruit Liquid Granule Mixing M Shape Pouch Packing Machine

FEATURES

1.Precision Weighing System: The 14-Head Multi-Head Weigher guarantees high weighing precision and rapid packing speed, maximizing efficiency for a variety of granular products.

2.Effortless Bag Type Change: The Eight-Station Main Packing Machine operates at high speed and features a one-click bag width adjustment, enabling quick and easy changes of bag types.

3.Intuitive Control Interface: The Advanced Touch Screen Control offers a user-friendly platform for straightforward operation and real-time parameter modifications.

4.Flexible Packaging Options: It offers Versatile Packaging Compatibility, accommodating multiple bag styles such as stand-up pouches, zipper bags, and flat bags.

5.Reliable and Hygienic Construction: With a Durable and Hygienic Design, it is built with stainless steel for long-lasting reliability and adherence to food safety standards.

Automatic Dry Fruit Liquid Granule Mixing M Shape Pouch Packing Machine

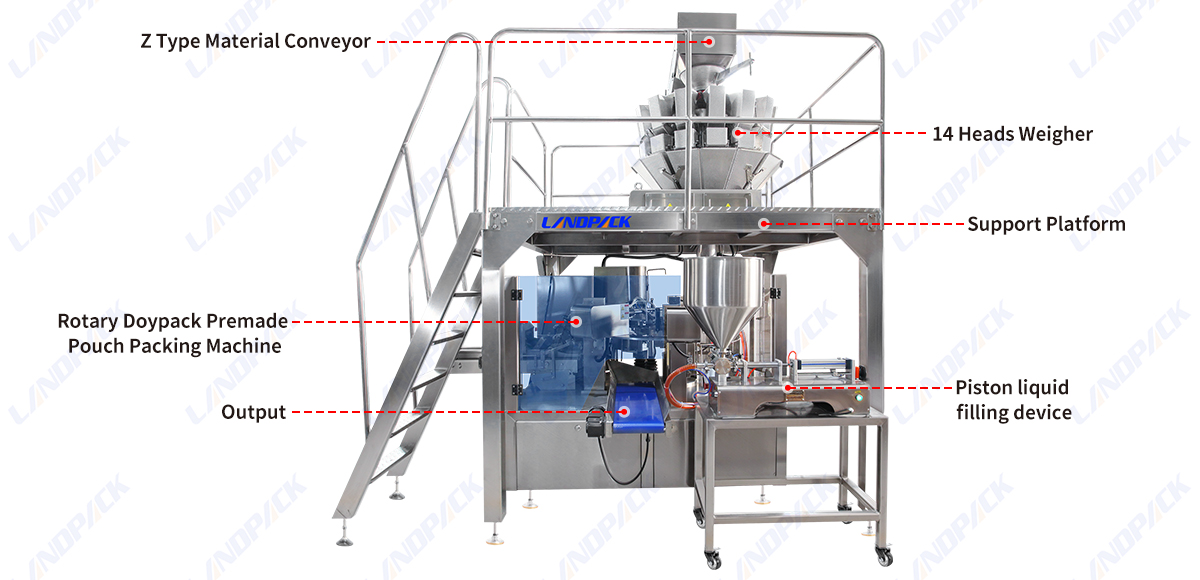

WORKFLOW

1.Multi heads weigher

2.Bags openning/print date

3.Filling product in to bag

4.Filling liquid

5.Heat sealing

6.Finished product output

PARAMETER

		Automatic M Shape Pouch Packing Machine
		Model	LD-8200/LD-8250
		Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
		size	W：70-200/100-250
		Filling range	10-1000g/20-2500g
		Packing speed	40-60bag/min（speed is determined by the product filling quantity）
		Average precision	≤ ±1%
		Total power	2.5KW
		Dimensions	1900mm X 1570mm X 1700mm（LWH）
		Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
		Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
