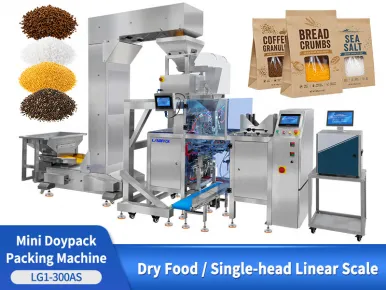

Automatic Granule M Shape Pouch Packing Machine Mini Doypack Machine

Introduction:

This machine is designed for precise dosing and sealing of powder, granules, or irregular solids into premade pouches. It offers versatility for different packaging needs and is compatible with various pouch types—including M shape pouch, flat bottom pouch, gusset pouch, stand-up pouch, and doypack pouches with or without zippers.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for a wide range of food materials, such as spice powder, protein powder, coffee powder, milk powder, flour, rice, nuts, tea leaves, beans, peanuts, sugar, sunflower seeds, salt, snacks, candies, dried fruits, and pet food. Ensuring accurate dosing and efficient packaging, this versatile machine provides reliable solutions for various industries.

Automatic Granule M Shape Pouch Packing Machine Mini Doypack Machine

FEATURES

1.Z-Elevator: Separately transports different materials for streamlined and efficient processing.

2.Linear-Head Weigher: Provides precise weight measurement, ensuring accuracy in filling and packaging.

3.Compact Structure: Space-saving design, ideal for facilities with limited workspace.

4.Linear Weigher: Specially designed for weighing both ground coffee and coffee beans with high precision.

5.Auto-Open Zipper: Enables automatic zipper opening for seamless sealing and efficient packaging.

Automatic Granule M Shape Pouch Packing Machine Mini Doypack Machine

WORKFLOW

1. Z-type feeding conveyor

2. 4 heads linear weigher

3. Take the bags

4. Open the bags

5. Open zipper

6. Filling

7. Vibration

8. Sealing

PARAMETER

Type	LDB-200	LDB-300	LDB-430

Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag
Upgraded Bag Type	(Need additional purchase	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device)
	of functional device)
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0-60 bags/min	0-15 bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65 Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
