Fully Automatic M Shape Pouch Weighing And Packing Machine Doypack Machine

Introduction:

M Shape Pouch Packing Machine is for m shape pouch and flat pouch. It can complete pouch feeding, measuring, filling, and sealing.Suitable for dry fruits, nuts, beans, cereals, seeds, peanuts, dried chili, dried tomatoes, dried flowers, candy.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

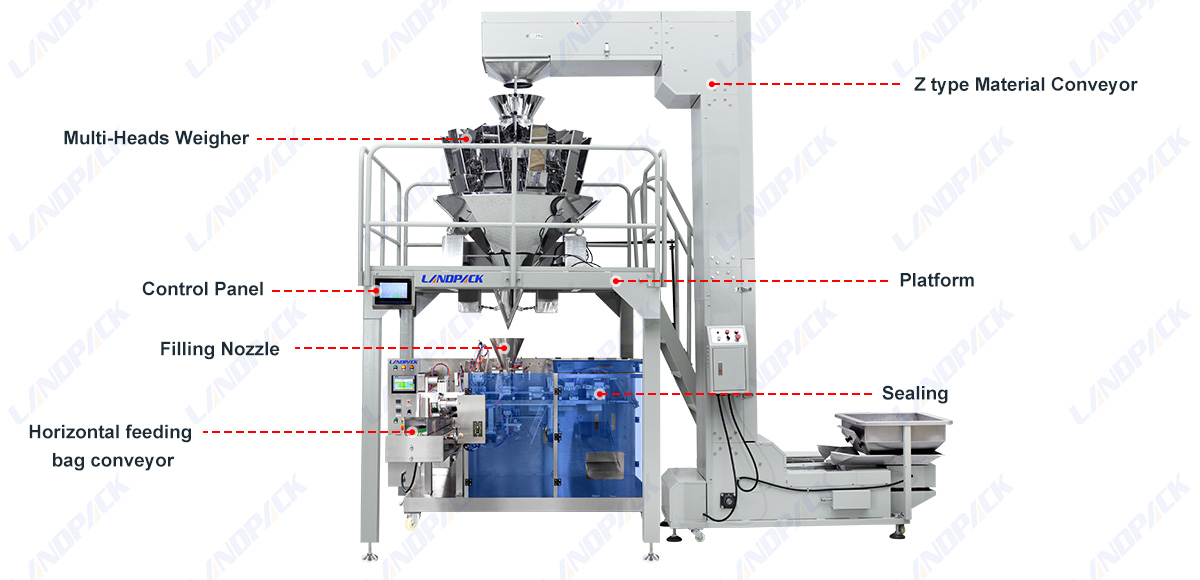

Fully Automatic M Shape Pouch Weighing And Packing Machine Doypack Machine

FEATURES

Automatic Feeding with Adjustable Speed – The machine automatically feeds products with a speed that can be easily adjusted, ensuring optimal performance for different production requirements.

High-Speed and Precise Dosing System – Features a multi-head electronic scale that guarantees fast and accurate weighing for consistent, high-quality packaging.

Reliable, Premium Electrical Components – Utilizes top-tier overseas electrical brands, ensuring superior quality and long-lasting performance.

Customizable Stations for Various Bag Types – The machine includes customizable stations for both M shape pouch and stand-up pouches (doypacks), allowing it to accommodate different bag shapes and sizes.

Dual Sealing for Enhanced Packaging Appearance – Equipped with a dual sealing system, ensuring a tight seal and improving the overall aesthetic of the packaged product.

Fully Automatic M Shape Pouch Weighing And Packing Machine Doypack Machine

WORKFLOW

Feeding the M shape Pouch

Picking the M shape Pouch and coding

Opening the M shape Pouch

Material Filling

Sealing

PARAMETER

Automatic Horizontal M shape Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering, screw elevator
