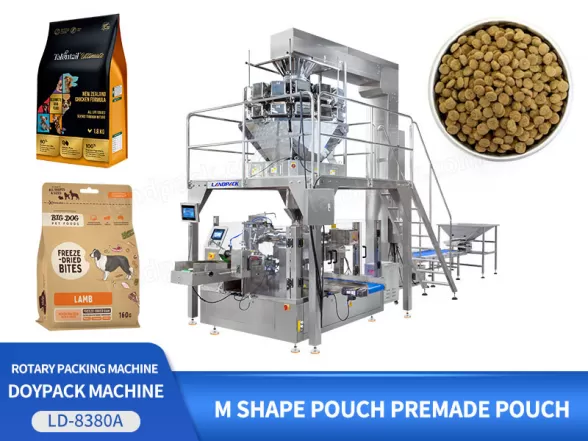

High Speed Dry Food M-Shape Pouch Rotary Doypack Packaging Machine

Introduction:

This automated packaging system is designed for solid food products and grains, including oatmeal, beans, nuts, seeds, cereal, dry fruits, peanuts, dry chili, dry tomatoes, candy, chocolate, biscuits, capsules, and dry flowers.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Speed Dry Food M-Shape Pouch Rotary Doypack Packaging Machine

FEATURES

1.Blockage Avoidance Mechanism: Prevents material build-up at the bag opening, guaranteeing seamless and effective sealing operations.

2.Magnetic Vibration Sieving: Efficiently eliminates metallic impurities, ensuring product integrity and compliance with quality requirements.

3.Precision Multi-Head Weighing System: Equipped with a 14-head, 5L weigher for accurate measurement of various products, reducing waste and improving productivity.

4.Enhanced Efficiency: Integrates advanced weighing and sealing technologies for rapid, dependable packaging with consistent quality output.

5.Wide Application Scope: Applicable to numerous product types, ideal for meeting the diverse packaging demands of different industries.

6.Sturdy Construction: Built to be durable, capable of withstanding harsh production conditions and providing reliable performance.

High Speed Dry Food M-Shape Pouch Rotary Doypack Packaging Machine

WORKFLOW

1.Z-elevator deliver material

2.Multi-Head Weigher Measure Weight

3.Take the bags

4.Print code

5.Open the bags

6.Filling

7.Pushing

8.Sealing

PARAMETER

	Automatic Rotary Doypack Packing Machine
	Model	LD-8200/LD-8250/LD-8380
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
