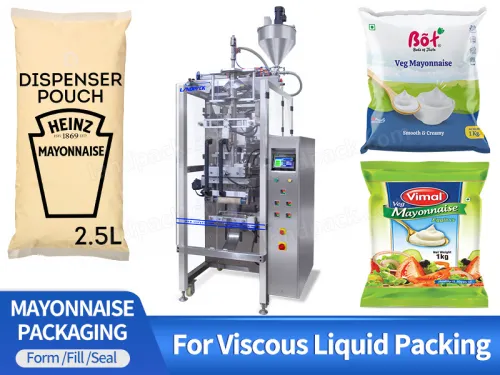

Automatic Mayonnaise Airless Package Vertical Pouch Form Fill And Seal Machine

Introduction:

This liquid air free packing machine is suitable for mayonnaise, sauces, ketchup, jam, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk. Especially suitable for liquid vacuum packing, good for product preservation.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This liquid air free packing machine is suitable for mayonnaise, sauces, ketchup, jam, chili sauce, lotus seed paste, bean paste and other food stuffing as well as drinks of large bulk. Especially suitable for liquid vacuum packing, good for product preservation.

Automatic Mayonnaise Airless Package Vertical Pouch Form Fill And Seal Machine

FEATURES

1. It has an automatic stop and alarm advanced function when there is a shortage of material or pouches.

2. Adopting Japanese Panasonic PLC to draw the film, and pneumatics to seal pouches insures accurate positioning.

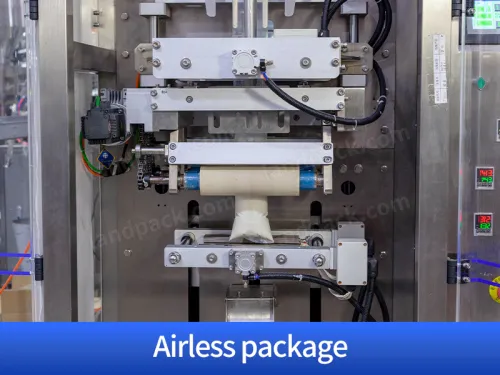

3. Double-roller to exhaust air by extrusion, which can eliminate the air completely to achieve an airless package.

4. One-time completion of bag-making, weighing and adjusting, bagging, sealing, cutting, and packing.

5. It can be equipped with various conveyors. Moreover, VIP5 still works stably under high temperatures.

6. The external frame and structure are made of stainless steel, which is clean and hygienic, up to the indicator of food hygiene quality.

Automatic Mayonnaise Airless Package Vertical Pouch Form Fill And Seal Machine

WORKFLOW

01

Piston Pump: Precisely measures and dispenses the olive oil.

02

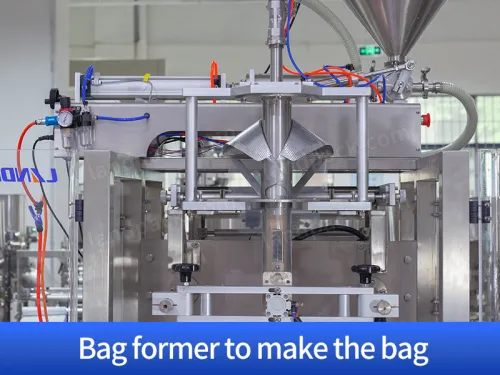

Bag Former: Shapes the bag for packaging.

03

Filling: The olive oil is filled into the bag.

04

Sealing: The bag is securely sealed to maintain freshness.

PARAMETER

Automatic Mayonnaise Airless Package Vertical Pouch Form Fill And Seal MachineAutomatic Liquid Pouch Vertical Packing Machine
ModelDWY-420DWY-620
Process WeighingNoYes
Packing Speed5-20ppm5-20ppm
Package Unit Weight250-7000g250-7000g
Bag Width100-260mm100-260mm
Bag Length150-600mm150-600mm
PrinterOptionalOptional
Mark SensorOptionalOptional
Voltage3×380V+N/2kW3×380V+N/2kW
Air Supply0.6Mpa/0.3M3/Min0.6Mpa/0.3M3/Min
Machine Weight476Kg502Kg
Machine SizeW950×L1300×H1815mmW950×L1300×H1815mm
