Automatic Piston Pump Mayonnaise Filling Line With Capping And Labeling Machine

Application:

This bottle liquid filling line can be customized to fill various liquid products such as mayonnaise, ketchup, peanut butter, alcohol, liquor, hand sanitizer, juice, oil, liquid detergent, shampoo, sauce, paste, honey, syrup, cream, salad sauce, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Piston Pump Mayonnaise Filling Line With Capping And Labeling Machine

FEATURES

1. Complete supporting facilities, the whole line is fully automatic, saving labor

2. 4-head negative ion bottle washing machine, cleans the inside of the bottle and keeps it clean and hygienic

3. Double-sided labeling machine can label round bottles, single-sided or double-sided

4. The label sleeve at the bottle mouth shrinks to prevent theft and prevent air from entering, which is conducive to preservation.

5. Connected to the carton sealing machine, the entire line is fully automated to increase output.

Automatic Piston Pump Mayonnaise Filling Line With Capping And Labeling Machine

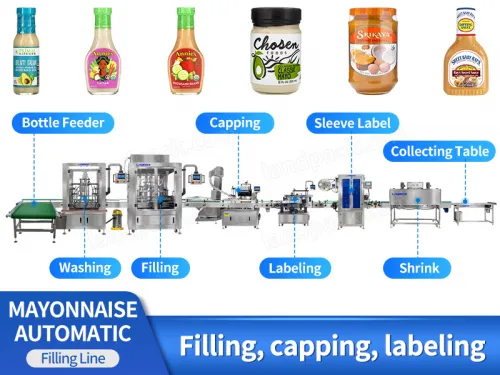

WORKFLOW

Automatic Bottle Feeder

Automatic Bottle Liquid Filling

Automatic Bottle Capper

Automatic Bottle Capping

Automatic Bottle Labeling

Automatic Inkjet Printer

PARAMETER

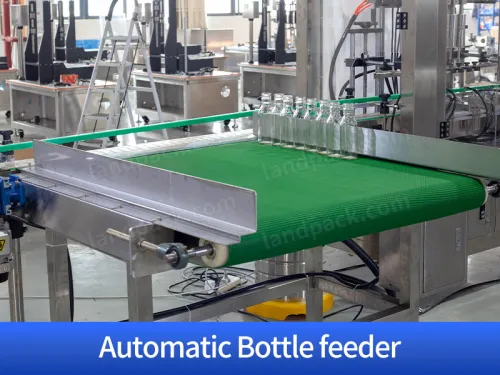

	Automatic Bottle feeder
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(depending on bottle size)
	Package Size	123010101260mm
	Gross Weight	141kg

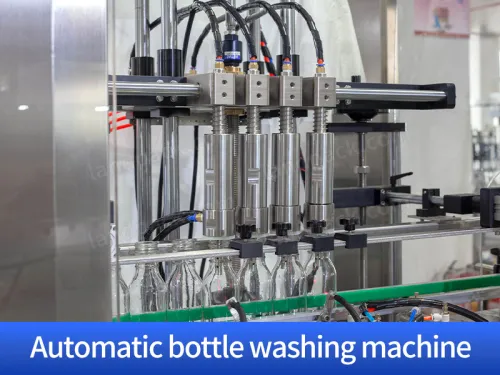

Automatic bottle washing machine
Washing head	4 Heads(can be customized)	6 Heads(can be customized)	8 Heads(can be customized)
Bottle diameter	30-130mm(customized)	30-130mm(customized)	30-130mm(customized)
Washing way	negative ions	negative ions	negative ions
Washing speed	14-24bottles pet mintue	25-35bottles pet mintue	36-46bottles pet mintue
Machine body	SS 304	SS 304	SS 304
Machine voltage	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW	220V(can be customized) 3.5KW
Machine weight	580kg	680kg	780kg
Machine size(LWH)	200010001800mm	200015001800mm	200020001800mm

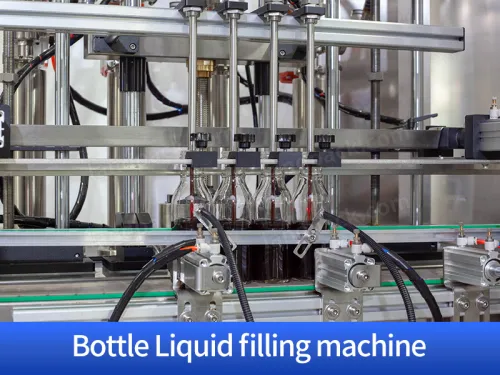

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090 (mm)	L4000W1320H2090 (mm)	L4000W1320H2090 (mm)	L4000W1320H2090 (mm)

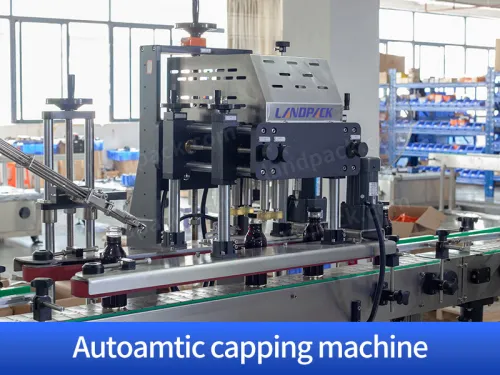

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

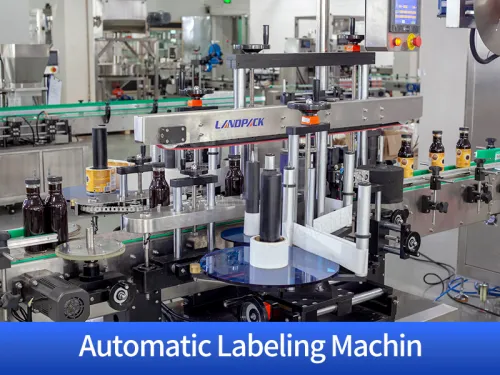

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

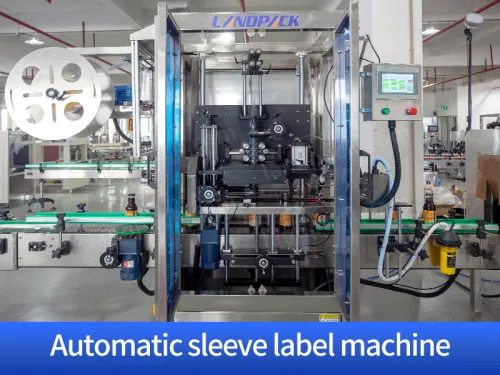

Automatic sleeve label machine
Type	Electric Type	Steam Type
Bottle diameter range	Φ25 -Φ56mm(A), Φ56-Φ86 mm(B)Φ86-Φ106mm(C), Φ106-Φ125mm(D)Special specifications can be designed	Φ25 -Φ56mm(A), Φ56-Φ86 mm(B)Φ86-Φ106mm(C), Φ106-Φ125mm(D)Special specifications can be designed
Host direction	Left to right or right to left	Left to right or right to left
Label length	25 mm -300 mm(customized)	25 mm -300 mm(customized)
Conveyor belt width	102mm(customized)	112mm(customized)
Paper tube diameter	5"-10"apply	15"-200"apply
Voltage	AC380V, 50 / 60HZ, 3 phase	AC380V, 50 / 60HZ, 3 phase
Machine speed	60-100 B/min(it depends on manualoperation and product size)	60-120 B/min(it depends on manualoperation and product size)
Power Host	3KW+24kw	3KW+24kw
Relative temperature	0-50℃	0-50℃
Relative humidity	15%- 90%	15%- 90%
Total size	L600cmW100cmH210cm	L600cmW100cmH210cm
Weight Stainless steel body	600 KG(about)+230KG	600 KG(about)+220KG

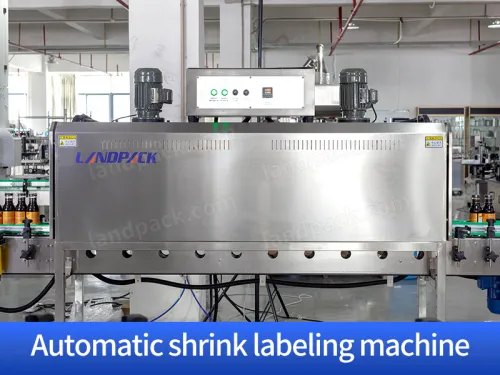

	Automatic shrink labeling machine
	Label length	25mm～300mm
	Bottle height	50mm～230mm(can be customized)
	Bottle width	40-110mm(can be customized)
	Roll Label outer diameter	300mm
	Roll Label inner diameter	76mm
	Accuracy	±1mm
	Label speed	30-80pcs/min
	Conveyor speed	5～25m/min
	Suitable label type	PVC label
	Heating type	electrict heating shrink
	Working air pressure	0.4-0.6Mpa
	Voltage	sleeve machine 220V 8KW, shrink machine 380V 28KW
	Weight	650KG
	Overall dimension	5000mm×900mm×1900mm
