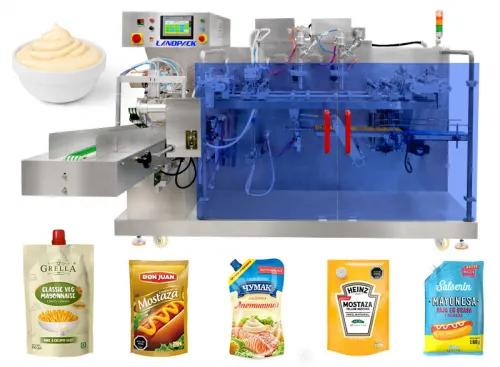

Automatic Premade Pouch Mayonnaise Sauce Packaging Horizontal Doypack Packing Machine

Introduction:

This horizontal doypack machine is suitable for liquid products such as ketchup, seasoning sauce, mayonnaise, barbecue sauce, chili sauce, tartar sauce, condensed milk, soy sauce, honey,juice,iam,jelly,shampoo, hand sanitizer,shower gel, etc.Suitable pouch: Zipper pouch, Spout pouch; 3/4 side sealing pouch

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Premade Pouch Mayonnaise Sauce Packaging Horizontal Doypack Packing Machine

FEATURES

1.Dual Filling Station could reduce filling time by half, and improved filling accuracy.

2. lt is compatible with bags of different sizes without changing accessories, realizing multiple uses of one machine.

3. Automatic detection function, if the bag is not opened or the bag is opened incompletely, nomaterial will be added and no heat sealing will be performed, which effectively prevents waste ofmaterials and saves production costs for users.

4. It adopts German Siemens PLC control and is equipped with a touch screen human-machine interface control system for easy operation.

Automatic Premade Pouch Mayonnaise Sauce Packaging Horizontal Doypack Packing Machine

WORKFLOW

Automatic Bags Feeding

Automatic Bags Open

Automatic Filling

Automatic Bags Sealing

PARAMETER

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
