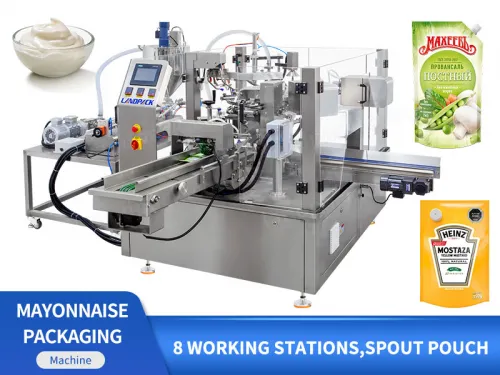

Automatic Rotary Mayonnaise Squeeze Spout Pouch Doypack Packaging Sealing Machine

Application:

This machine is suitable for spout pouch packaging of liquids, such as mayonnaise, skin care, soy sauce, chili sauce, honey, ketchup, tartar, liquid butter, juice, milk, etc.As a multi-functional packaging machine, it also supports a variety of pouch types. Such as: stand up pouch, zipper pouch.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Rotary Mayonnaise Squeeze Spout Pouch Doypack Packaging Sealing Machine

FEATURES

1.Integrated Printer – Prints clear and accurate information, such as manufacturing and expiration dates, on bags.

2.Adjustable Bag Slot – Accommodates various bag types with customizable slot sizes based on bag dimensions.

3.Precision-Controlled Rotary System – Uses a precision indexing device and PLC to ensure accurate operation at each working station.

4.Variable Speed Control – Equipped with frequency conversion adjustment, with actual speed depending on product type and pouch specifications.

Automatic Rotary Mayonnaise Squeeze Spout Pouch Doypack Packaging Sealing Machine

WORKFLOW

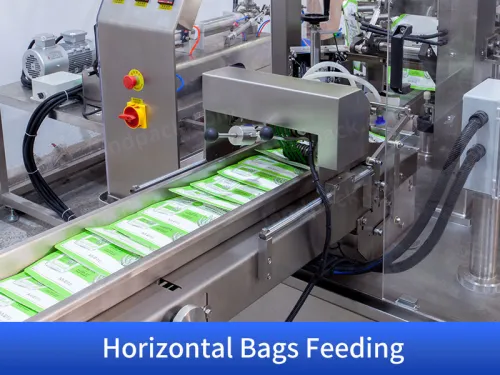

Take the bags

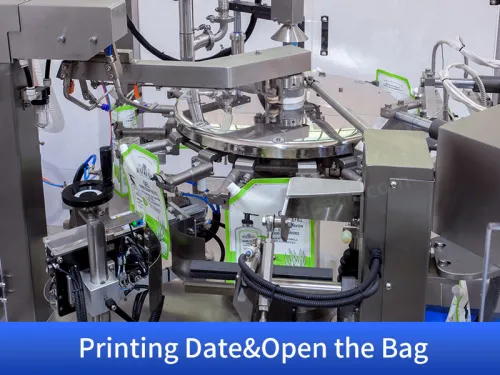

Code printing

Open Spout Pouch

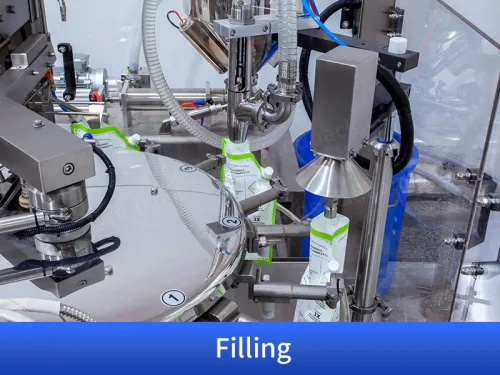

Filling

Sealing

Finished Product Conveyor

PARAMETER

	Automatic Rotary Doypack Packing Machine
	Model	LD-8200/LD-8230/LD-8250
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
