Full Automatic Mayonnaise Bottle Filling Capping Labeling Line

Application:

This Automatic Filling Line can be customized to fill various products,such as : mayonnaise, ketchup, sauce, paste, lotion, ghee,juice, honey, fruit jam, butter, olive oil, tomato sauce, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Automatic Filling Line can be customized to fill various products,such as : mayonnaise, ketchup, sauce, paste, lotion, ghee,juice, honey, fruit jam, butter, olive oil, tomato sauce, etc.

Full Automatic Mayonnaise Bottle Filling Capping Labeling Line

FEATURES

1. The linear machine suits for all kind of bottle. It could be don't need to change any spear part when you change different size bottle,just adjust the machine.

2. The whole set of machine is controlled by the touch screen and PLC controlling system, so it is very easy for the worker to operate the machine well.

3. Movable capping machine can identify the bottle and track the capping, which can increase the capping speed.

4. High speed capping machine by servo motor control.

5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.

6. Machine body and the parts contacting liquid are made of stainless steel, full compliance with GMP standard.

Full Automatic Mayonnaise Bottle Filling Capping Labeling Line

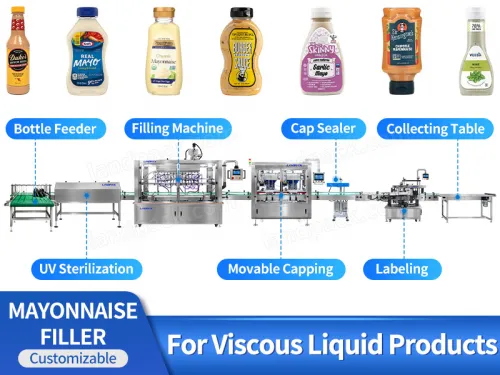

WORKFLOW

Empty Bottle Feeding

Gear Pump Filling

Capping

Aluminum Foil Sealing

Finished Product Output

PARAMETER

			Automatic Bottle feeder
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(depending on bottle size)
			Package Size	123010101260mm
			Gross Weight	141kg

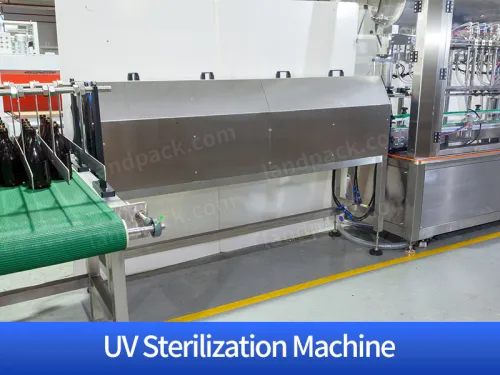

			UV Sterilization Machine
			Bottle diameter	30-130mm(customized)
			Sterilization way	UV disinfection
			Washing speed	14-24bottles pet mintue
			Machine body	SS 304
			Machine voltage	220V(can be customized) 3.5KW
			Machine weight	580kg
			Machine size(LWH)	200010001200mm

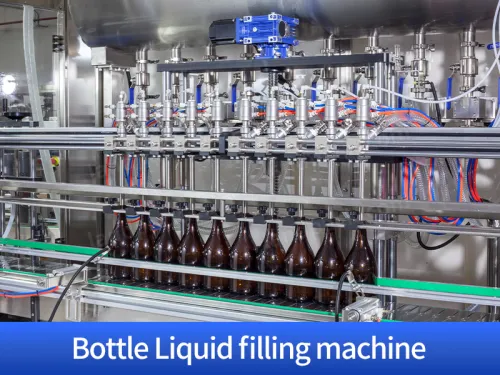

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

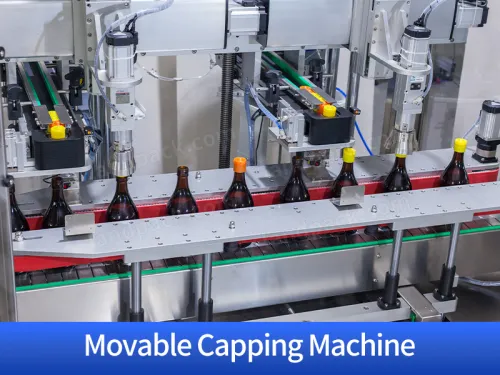

Movable Capping Machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-MG-250(Two wheel Movable Capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-120Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

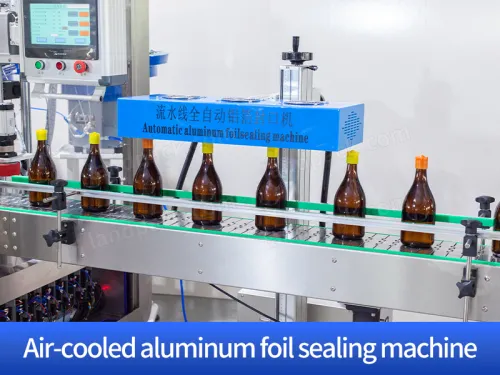

Air-cooled aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

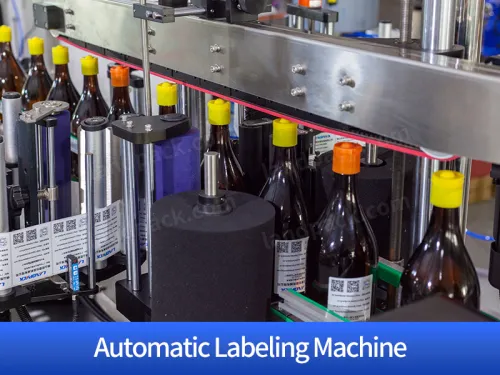

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
