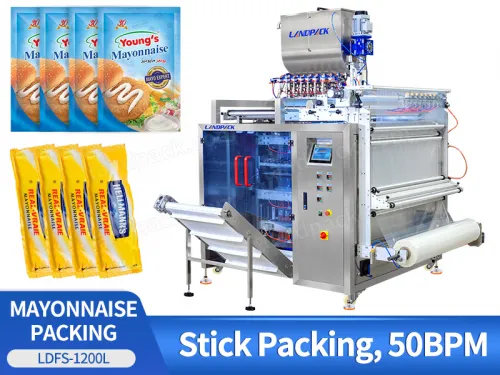

Multi Lanes Liquid Filling Mayonnaise Paste Sauce Stick Sachet Packing Packaging Machine

Introduction:

The machine can produce multi lanes stick pack at same time, and it mainly packaging the liquid or paste in small sachet at high speed, such as shampoo, lotion, hand washing, liquid soap, liquid flavors, juice, oil, jam, honey ,soy sauce, mayonnaise etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Multi Lanes Liquid Filling Mayonnaise Paste Sauce Stick Sachet Packing Packaging Machine

FEATURES

1.The multi lane stick pack machine can automatically complete multi-lane products measuring, feeding, filling and bag forming,date code printing, bag sealing and cutting. And hole punching as option.

2.Motor driven heat seal film pulling system.

3.High sensitive fiber optic photo sensor can automatically trace color mark accurately.

4.PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.

5.PID temperature controller monitors heat sealing temperature within ±1°C.

Automatic Multi Lane Shampoo Sachet Liquid Packing Packaging Machine

WORKFLOW

Film Unwinding

Batch Coding

Film Slitting

Bag Formation

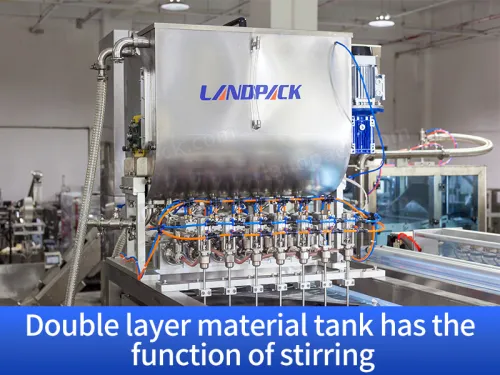

Mayonnaise Filling

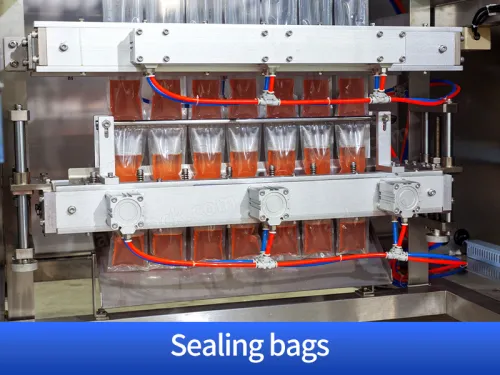

Sealing

Cutting

PARAMETER

	Model	LDFS-960L
	Production capacity	Max. 480 bags/min
	Diameter of the film roll	maximum 300mm
	Packaging film width	The widest 1200 mm
	Sachet Size	L: 45-120mm; W: 35-120mm
	Air pressure	0.5-0.7 Mpa
	Machine noise	less than 80db(A)decibel
	Heating power	5.5 Kw
	Weight	500KG
	Machine size	141516862130 mm
