Milk Powder Packing & Filling Machine / Line

Home > Applications > Powder Packing Filling Machine Line > Milk Powder Packing & Filling Machine / Line > Automatic Milk Powder Bottle Filling Machine Line Protein Powder Filling

Automatic Milk Powder Bottle Filling Machine Line Protein Powder Filling

Application:

This machine is commonly used for bottle filling, capping, and labeling across various industries such as pharmaceuticals, food, cosmetics, and chemicals. It is ideal for products like milk powder, protein powder, medicinal powder, spices, talcum powder, coffee powder, meal replacement powder, and chemical powder, ensuring precise and efficient packaging.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This machine is commonly used for bottle filling, capping, and labeling across various industries such as pharmaceuticals, food, cosmetics, and chemicals. It is ideal for products like milk powder, protein powder, medicinal powder, spices, talcum powder, coffee powder, meal replacement powder, and chemical powder, ensuring precise and efficient packaging.

Automatic Milk Powder Bottle Filling Machine Line Protein Powder Filling

FEATURES

1. Stainless Steel Construction (SS304): Ensures a hygienic and safe design, perfect for food-grade applications.

2. Fully Automated Filling Process: Reduces labor costs while maintaining high safety and hygiene standards.

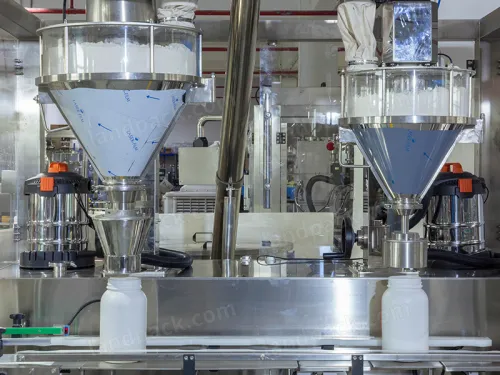

3. Dual Auger Screw System: Provides precise weighing and filling with high accuracy through a secondary measurement system.

4. Adjustable Bottle Compatibility: Easily accommodates a range of bottle sizes with stable and reliable performance.

5. Clear Coding and Attractive Labeling: Ensures accurate date printing and professional packaging with a seamless labeling and sealing process.

6. User-Friendly Operation: Simple to operate, minimizing training requirements and ensuring ease of maintenance.

7. High Efficiency and Consistency: Designed for continuous, precise filling, increasing overall production efficiency.

Automatic Milk Powder Bottle Filling Machine Line Protein Powder Filling

Automatic Milk Powder Bottle Filling Machine Line Protein Powder Filling

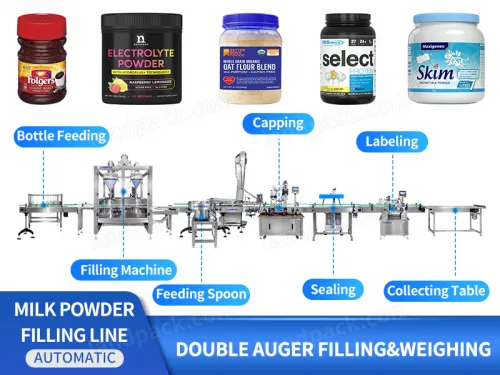

WORKFLOW

01

Empty bottle feeding belt

02

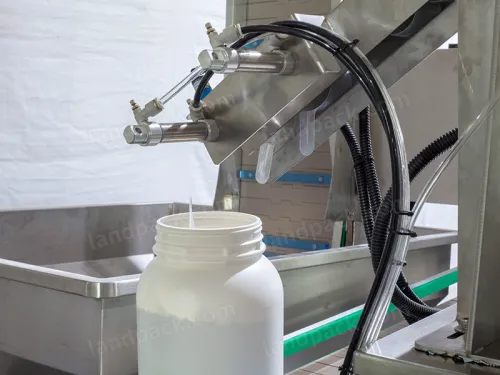

Auger screw measuring and filling

03

Screw secondary weighting and filling

04

Automatic feeding spoon in bottle

05

Automatic feeding and placing caps

06

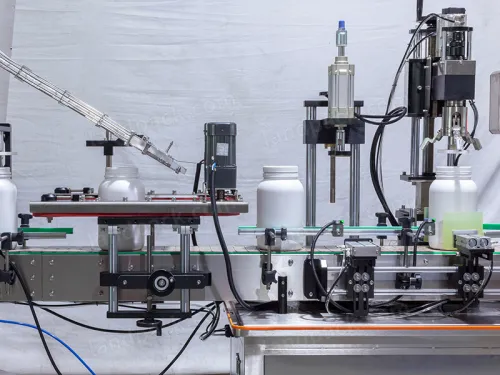

Servo capping machine

07

Aluminum foil sealing

08

Coding dates on label and sticking label

PARAMETER

Automatic Milk Powder Bottle Filling Machine Line Protein Powder FillingBottle Conveyor Feeding Device
Power Supply220V/110V, 50-60Hz, 200W
Turntable Diameter1000mm(Could be customized)
Suitable Bottle Diameter20-450mm
Suitable Bottle Height30-450mm
Working Speed40-60bottles/min (Could be customized)
Package Size1230*1010*1260mm (Could be customized)
Gross Weight256kg
Automatic Milk Powder Bottle Filling Machine Line Protein Powder FillingAutomatic powder weighing filling machine
ModeLFP-01 (Single Head Powder Filling)LFP-01 (Single Head Powder Filling)LFPD-50-30 (Double Head Powder Filling)
Filling Weight10-5000g (Replace screw specifications)10-5000g (Replace screw specifications)100-2000g
Bottle diameterΦ30-Φ140mm (Could be customized)Φ30-Φ140mm (Could be customized)Φ60-Φ135m
Bottle Height50mm-200mm (Could be customized)50mm-200mm (Could be customized)601-260mm
Capacity10-20 bottles/min20-40 bottles/min10-25 bottles/min
Measure accuracy≤500g, ≤±1%; ≥500g, ≤±0.5%≤500g, ≤±1%; ≥500g, ≤±0.5%100-1000g, ≤±2g; ≥1000g, ≤±5g
Power2.5KW5KW4.5KW
Automatic Milk Powder Bottle Filling Machine Line Protein Powder FillingCapping Machine
ModelLDBZ-C (Single heads servo capping)LDBZ-2C (Double head servo capping)LDBZ-3C (Three heads servo capping)
Capacity30 bottles/min40 bottles/min50 bottles/min
Bottle diameterΦ25mm-Φ100mm (Could be customized)
Bottle sealing height40mm-200mm (Could be customized)
Power2KW2.5KW3KW
Voltage220V, 50HZ
Air pressure0.4-0.6Mpa0.5-0.7Mpa0.7-0.9Mpa
Weight300kg350kg400kg

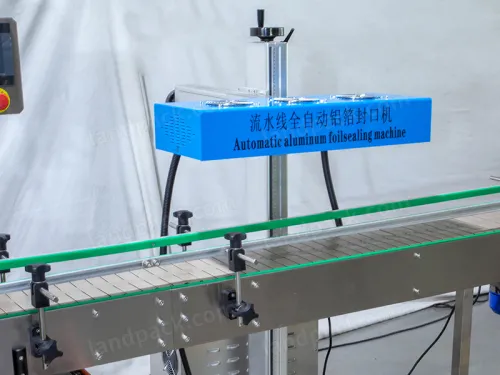

Automatic Milk Powder Bottle Filling Machine Line Protein Powder FillingAutomatic Aluminum Foil Sealing Machine
ModelLD-ZS(Double Heads Aluminum Foil Sealing)LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameterΦ10-200mm (Could be customized)
Applicable bottle heightH:40-300mm(Could be customized)
Speed0-30bottle/min0-10bottle/min
Bottle materialGlass, ceramics, plastics, metals
Voltage220V,50HZ
Power1500W1200W
Dimension1500*800*1750mm1200*600*1550mm

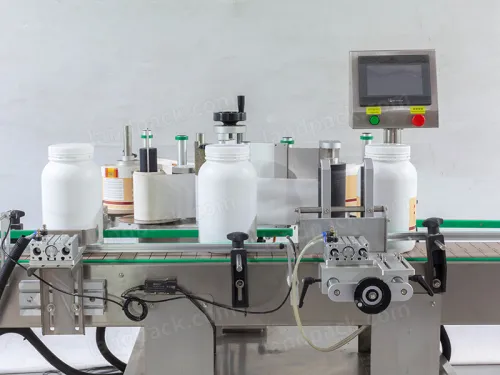

Automatic Milk Powder Bottle Filling Machine Line Protein Powder FillingAutomatic Labeling Machine
ModelLFT-LG-100(Low speed labeling)LFT-GS-100(High speed labeling)
Label length20mm~300mm
Label width/height20mm~200mm(can be customized)
Bottle width30-150mm(can be customized)
Roll Label outer diameter300mm
Roll Label inner diameter76mm
Accuracy±1mm
Label speed40-100pcs/min60-120pcs/min
Conveyor speed5~25m/min15~20m/min
Suitable label typeAdhesive sticker label(transparent label need customized)
Working air pressure0.4-0.6Mpa
Voltage220V can be customized 4KW
Weight350KG450KG
Overall dimension3000mm×1450mm×1950mm3050mm×1550mm×1950mm

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
