Automatic Milk Powder Filling Line Powder Bottling Canning Production Line

Introduction:

This Automatic Milk Powder Filling Line has automatically material conveying, weighing, canning, labeling to eliminate the unnecessary labor cost and promote production efficiency at the same time.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Automatic Milk Powder Filling Line, It is suitable for plastic/ metal cans tins packing and widely used in food, pharmaceutical, chemical, commodity industries etc. for many kinds of powder pack machine can used as : Milk powder filling machine, flour powder filling machine, coffee powder filling. Suitable for protein powder, spice, flour, milk powder, monosodium glutamate, dextrose, coffee poweder, etc.

Automatic Milk Powder Filling Line Powder Bottling Canning Production Line

WORKFLOW & DVANTAGES

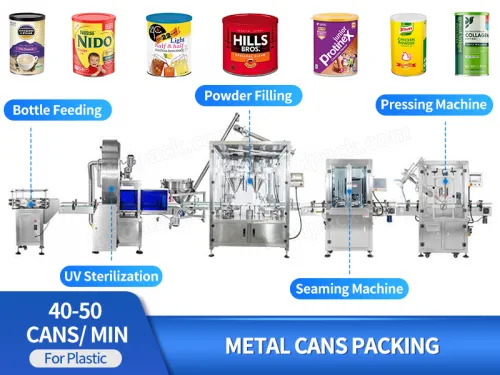

WORKFLOW:

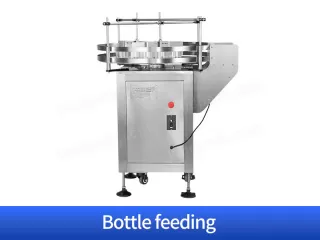

1. The unscrambling machine will unscramble and lined up the cans first.

2. The powder screw feeder feeding the powder to the filling machine.

3. Double-head powder filling machines with turntable cans feeding.

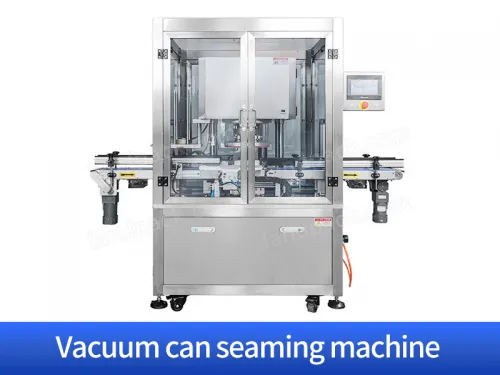

4. The filled cans will get into the vacuum nitrogen sealing machine. Vacuum, nitrogen filling and can sealing at one go.

5. The sealed cans get into the snap capper for putting dust-proof caps on.

6. Cans get labeled by the label machine.

7. Cans are collected by the unscramble machine and are ready to get load into shipping boxes.

ADVANTAGES:

Advantages of Automatic Milk powder filling packing production line:

1. Automatically material conveying, weighing, canning, labeling to eliminate the unnecessary labor cost and promote production efficiency at the same time.

2. Advanced Tech: Human-Computer Interaction Touch Screen, PLC Controller, Photo electricity Sensor, High Accuracy Servo Motor etc.

3. Auxiliary device: like nitrogen gas generator or liquid nitrogen storage tank and other device could be assemble together depend on your request.

4. Application: it is suitable for plastic/metal cans packing and widely used in food, pharmaceutical, chemical, commodity industries etc.

Automatic Milk Powder Filling Line Powder Bottling Canning Production Line

PARAMETER

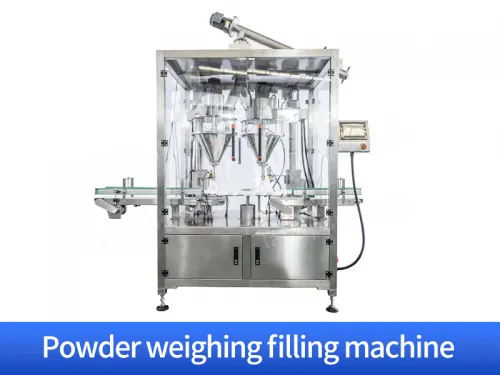

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

Metal Detector
Model	LD-100	LD-150	LD-200	LD-250	LD-300
Detecting window height(mm)	100	150	200	250	300
Effective Detecting width(Max)(mm)	400	400	440	440	440
Fe(mm)-iron ball-steel ball(mm)	0.8-1.0	1.0-1.2	1.2-1.5	1.5-2.0	2.0-2.5
304Sus(mm)304-306(mm)	1.5-2.0	2.0-2.3	2.3-2.5	2.5-3.0	3.0-3.5
Frame material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel

Weight detector
Model	LD10	LD100	LD201	LD401	LD1000
Weight Range	10-99g	100-200g	201-400g	401-999g	1000-10000g
Rate	65bag/min	60bag/min	50bag/min	45bag/min	40bag/min
Precision	±0.5g				±1g
Minimum scale	0.1g
Predesign pattern	10kinds
Size	10506811260
Voltage	220V
Power	300W

Automatic capping machine with cap feeder
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

	Collecting Table
	Capacity	30-50Bottle
	Material	Stainless Steel 304
	Dimension	3002000100mm
	Weight	200KG
