Automatic Milk Powder Filling Line With UV sterilizer And Vacuum Nitrogen Sealing

Introduction:

Automatic milk powder filling line with uv sterilizer/ vacuum nitrogen sealing, equipped with three vacuum nitrogen sealing, weight detection and ultraviolet sterilizers. It is suitable for automatic filling of various powder products, such as milk powder, coffee powder, spice powder, protein powder, nutritional powder, medicine powder, meal replacement powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Milk Powder Filling Line With UV sterilizer And Vacuum Nitrogen Sealing

FEATURES

1.Automatic two-head Auger type metering/filling system works with the automatic capping machine.

2.Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.

3.Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.

4.Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.

5.Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.

6.10 sets of memory modules for memorizing different kinds of products and filling weights.

7. This line is especially suitable for canned milk powder, protein powder, nutrition powder and so on, equipped with UV sterilization and purging.

8. Drop the spoon automatically.

9. The filling machine adopts the weighing filling measurement, the precision is higher than the screw measurement.

10. Equipped with three vacuum-sealed tanks filled with nitrogen to extend the shelf life of products.

Automatic Milk Powder Filling Line With UV sterilizer And Vacuum Nitrogen Sealing

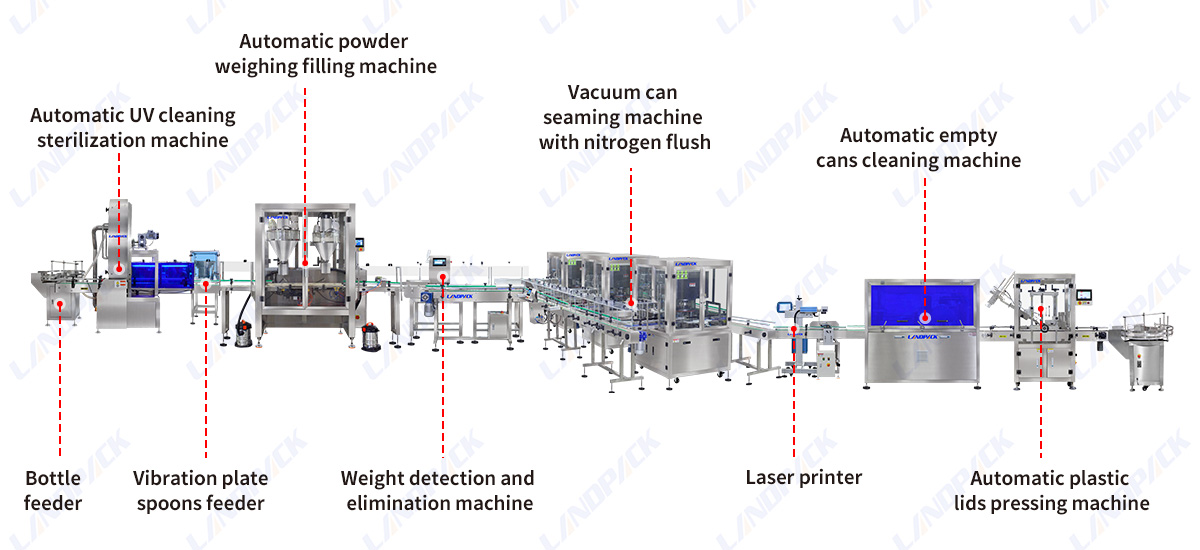

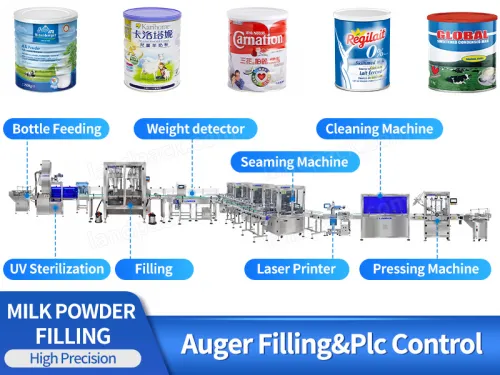

WORKFLOW

Automatic Can Tin UV Sterilization

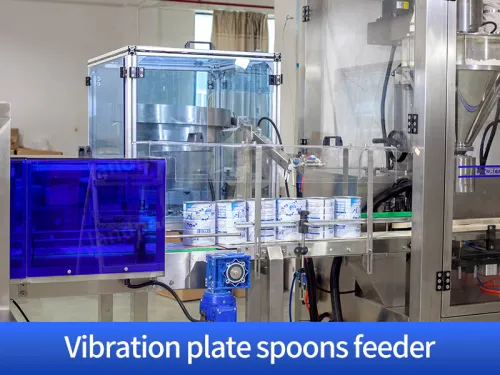

Vibration Plate Spoons Feeder

Automatic Powder Weighing Filling Machine

Automatic Vacuum Can Seaming With Nitrogen Flush

Laser Printer

Automatic Cans Cleaning

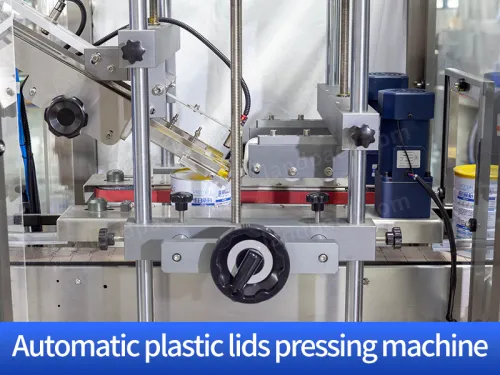

Automatic Plastic Lids Pressing

PARAMETER

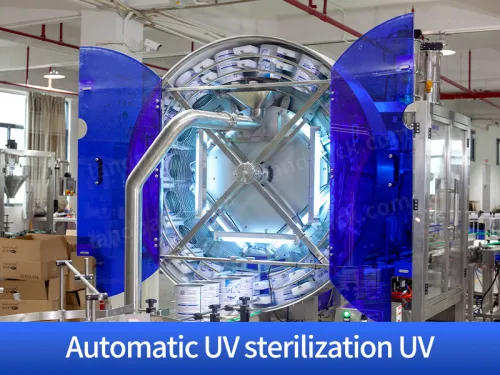

			Automatic UV sterilization UV
			Voltage	220V/50Hz（customized）
			Power	2500W
			Air pressure	0.3-0.5mpa
			Speed	10-50 BPM (can be customized)
			Bottle diameter	76-140mm
			Bottle high	80-200mm
			UV light	7
			Outline dimension	240013002200MM （L×W×H）
			Net weight	350KG

			Vibration plate spoons feeder
			Voltage	220V/50Hz（customized）
			Power	300W
			Speed	10-40 BPM （customized）
			Vibration top diameter	60-80cm
			Spoon size	customized
			Outline dimension	10008001200MM （L×W×H）
			Net weight	150KG

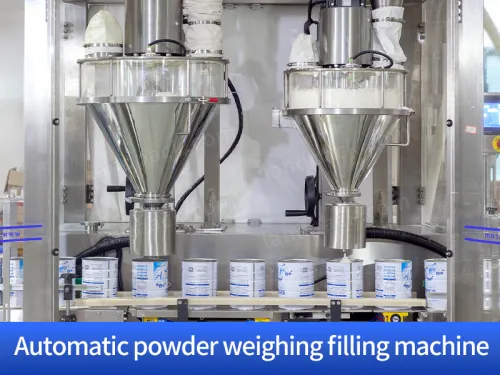

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	卤1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)

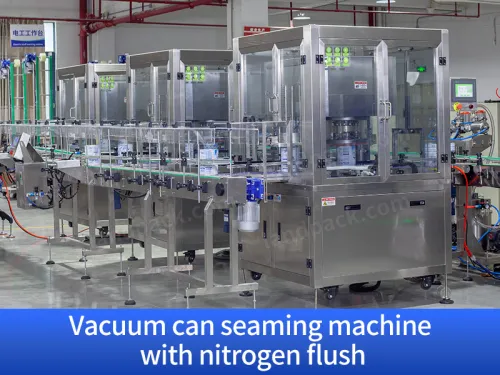

			Vacuum can seaming machine with nitrogen flush
			Bottle type	round,square bottles etc need to be customized.
			Bottle diameter	50-120cm(can be customized)
			Bottle height	50-150mm(can be customized)
			Speed	5-8BPM(it depends on product)
			Caps feeding type	ausomtaic lids feeding
			Machine voltage	220V(can be customized)
			Machine size	200010001700mm
			Machine weight	550kg

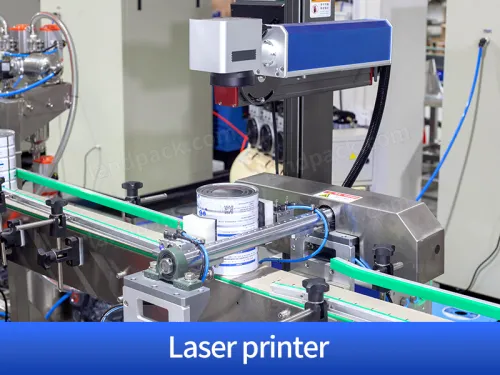

			Laser printer
			Print range	100*100mm
			Positioning way	Infrared focusing
			Focuslens	focal length 150mm
			Speed	Max10000mm/s(can be customized)
			Laser	fiber laser generator
			Machine voltage	220V(can be customized)
			Machine size	8255451425mm
			Machine weight	60kg

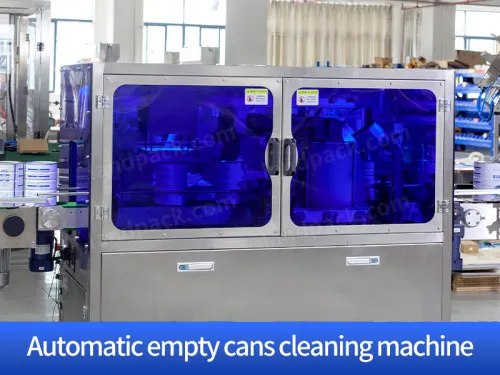

			Automatic cans cleaning machine
			Speed	1-40(can be customized)
			Bottle diameter	60-140mm(can be customized)
			Power	2KW 380V
			Weight	350KG
			Machine size	17008001800mm

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa
