Milk Powder Packing & Filling Machine / Line

Home > Applications > Powder Packing Filling Machine Line > Milk Powder Packing & Filling Machine / Line > Automatic Milk Powder Packing Machine Rotary Doypack Pouch Filling And Sealing Machine

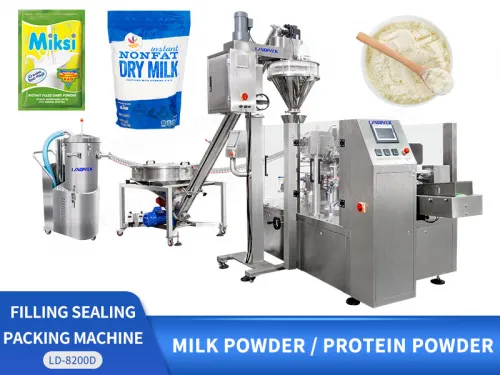

Automatic Milk Powder Packing Machine Rotary Doypack Pouch Filling And Sealing Machine

Application:

Automatic milk powder doypack filling machine(LD-8200D/ 8240D/ 8300D), it is suitable for automatic packing for powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Automatic milk powder doypack filling machine(LD-8200D/ 8240D/ 8300D), it is suitable for automatic packing for powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.

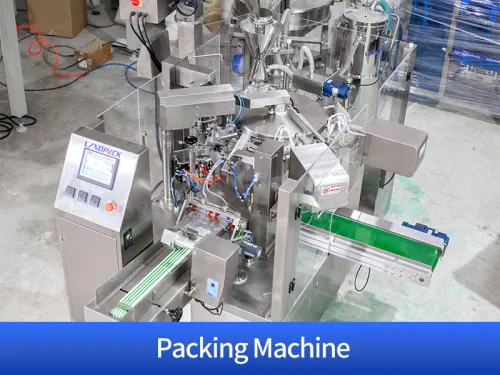

Automatic Milk Powder Packing Machine Rotary Doypack Pouch Filling And Sealing Machine

FEATURES

1. Full automatic intermittent rotary preformed bags dispensing, opening and closing machine combined with automatic auger powder filler, bulk screw feeder and product bulk hopper.

2. Safety guard protected for high speed and consistent production heavy duty components and parts are selected for machine durability.

3. Hygienic construction and easy cleaning operators friendly design touchscreen control system.

4. Adopt advanced PLC, mate with touch screen and electric control system, the man-machine interface is friendly.

5. Dust control and extractor system on special request.

6. Automatic checking system can check bag situation, filling and sealing situation.

Automatic Milk Powder Packing Machine Rotary Doypack Pouch Filling And Sealing Machine

WORKFLOW

01

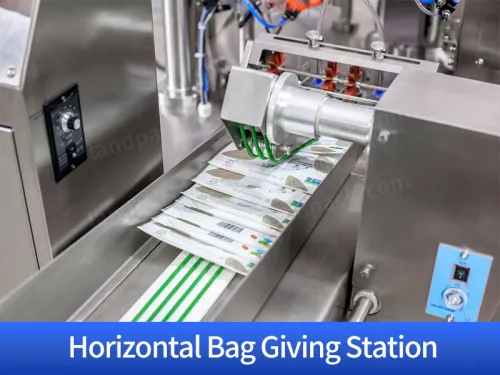

Automatic Bag Feeding

02

Automatic Bag Open

03

Bag Openning

04

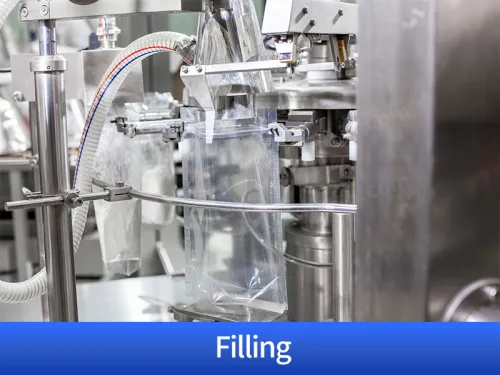

Automatic Liquid Filling

05

Automatic Sealing

06

Date Printing

07

Finished Product Ouput

PARAMETER

Automatic Milk Powder Packing Machine Rotary Doypack Pouch Filling And Sealing MachineAutomatic Powder Doypack Packing Machine
ModelLD-8200
Bag SizeL: 120~550 mm
W: 80~400 mm
Filling Range10~3000g
Packing Speed30~50 bags/min
Air Consmption≤ 0.6m³/min
Machine Voltage220V/380V , 50/60Hz
Total Power2.8 KW
Machine Size2450*1880*1900 mm
Machine Weight750 KG
