Automatic Milk Powder Tin Can Sterilization Filling Canning Seaming Production Line

Introduction:

The milk powder sterilization canning line can accurately dispense dry powder into round rigid containers (metal, plastic, or paper cans) at speeds up to 50 bpm. Its patented two-stage auger filling system ensures precision. Integrated with an inline check weigher and rejection system, it rejects products with substandard weight, ensuring precise weight control and reducing product waste. Widely used in powdered milk and whey protein powder filling and seaming lines, it offers high speed, excellent accuracy, and stable performance. This production line can be used for 401# (φ99mm) and 502$ (φ127mm) cans, and can be customized for 603# (φ153mm), 700# (φ176mm), 708# (φ189mm) and 715# (φ198mm) filling.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The milk powder sterilization canning line is versatile and widely used across multiple industries. In the dairy industry, it efficiently fills and seams powdered milk and infant formula. It's also essential for the nutritional supplements sector, packaging protein powders and other dietary products. The food industry benefits from its capability to can dry food powders such as cocoa, coffee, and drink mixes. In the pharmaceutical field, it is used for packaging powdered medicines and health supplements. Additionally, the chemical and cosmetic industries utilize this line for dispensing and sealing powdered chemicals, additives, and cosmetic powders. Its precision, speed, and reliability make it indispensable for any application requiring hygienic and accurate powder packaging.

Automatic Milk Powder Tin Can Sterilization Filling Canning Seaming Production Line

FEATURES

The milk powder sterilization canning line has several notable characteristics:

1. **High Precision**: The patented two-stage auger filling system ensures accurate dispensing of dry powder, maintaining consistent product weight.

2. **High Speed**: Capable of operating at speeds up to 50 cans per minute (bpm), increasing production efficiency.

3. **Hygienic Design**: Sterilization capabilities ensure that containers are free from contaminants before filling, maintaining product safety.

4. **Versatility**: Can handle various round rigid containers, including metal, plastic, and paper cans.

5. **Integrated Quality Control**: Features an inline check weigher and rejection system to discard products with substandard weight, ensuring precise weight control and minimizing product waste.

6. **Stability**: Provides stable performance, ensuring reliable operation during high-speed production.

7. **Cost-Effective**: Reduces expensive product giveaways through precise weight control, enhancing cost efficiency.

8. **Ease of Use**: Designed for easy operation and maintenance, improving user convenience and reducing downtime.

These characteristics make the machine an ideal choice for efficient and hygienic powder packaging across various industries.

Automatic Milk Powder Tin Can Sterilization Filling Canning Seaming Production Line

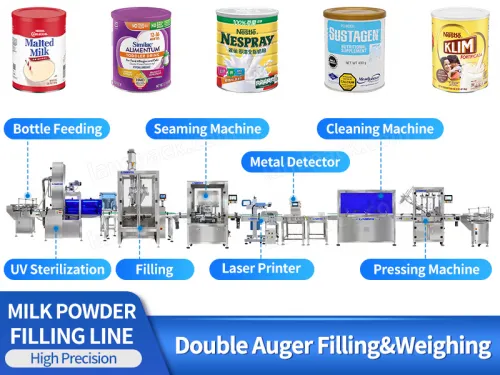

WORKFLOW

Bottle feeder

Automatic UV cleaning sterilization machine

Vibration plate spoons feeder

Double heads powder filler

Vacuum can seaming machine with nitrogen flush

Laser printer+Flip device

Automatic empty cans cleaning machine

Automatic plastic lids pressing machine+Collecting finished product

PARAMETER

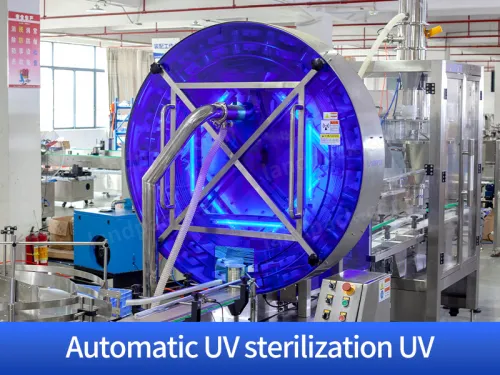

			Automatic UV sterilization UV
			Voltage	220V/50Hz（customized）
			Power	2500W
			Air pressure	0.3-0.5mpa
			Speed	10-50 BPM (can be customized)
			Bottle diameter	76-140mm
			Bottle high	80-200mm
			UV light	7
			Outline dimension	240013002200MM （L×W×H）
			Net weight	350KG

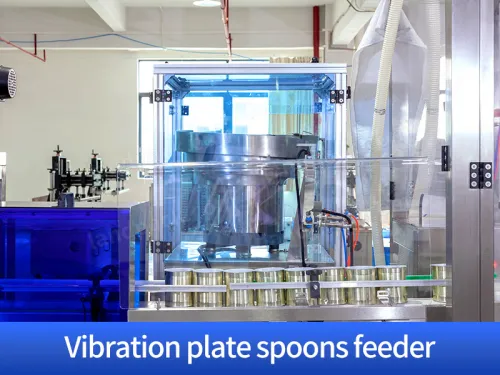

			Vibration plate spoons feeder
			Voltage	220V/50Hz（customized）
			Power	300W
			Speed	10-40 BPM （customized）
			Vibration top diameter	60-80cm
			Spoon size	customized
			Outline dimension	10008001200MM （L×W×H）
			Net weight	150KG

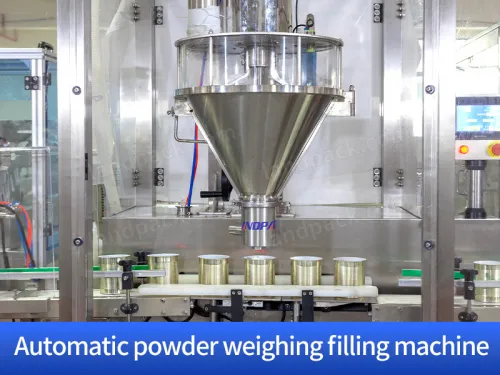

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	卤1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)

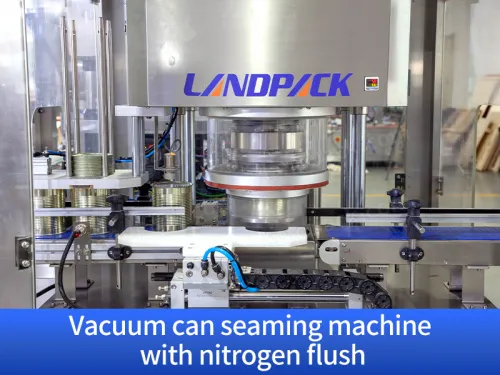

			Vacuum can seaming machinewith nitrogen flush
			Bottle type	round,square bottles etc need to be customized.
			Bottle diameter	50-120cm(can be customized)
			Bottle height	50-150mm(can be customized)
			Speed	5-8BPM(it depends on product)
			Caps feeding type	ausomtaic lids feeding
			Machine voltage	220V(can be customized)
			Machine size	200010001700mm
			Machine weight	550kg

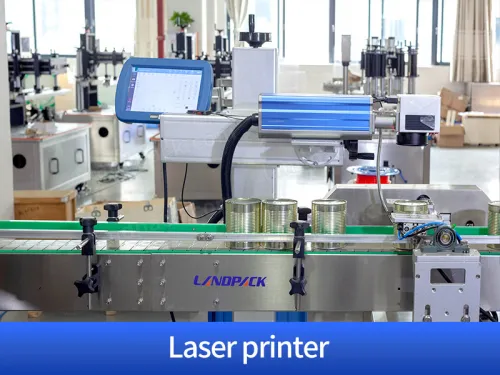

			Laser printer
			Print range	100*100mm
			Positioning way	Infrared focusing
			Focuslens	focal length 150mm
			Speed	Max10000mm/s(can be customized)
			Laser	fiber laser generator
			Machine voltage	220V(can be customized)
			Machine size	8255451425mm
			Machine weight	60kg

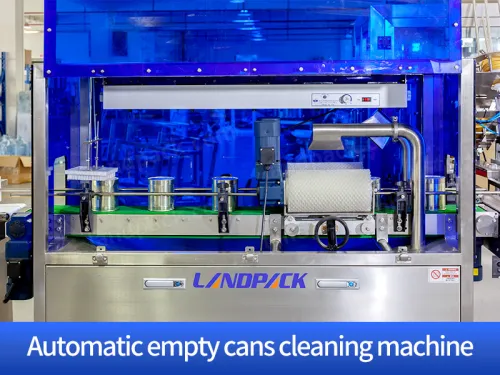

			Automatic empty cans cleaning machine
			Speed	1-40(can be customized)
			Bottle diameter	60-140mm(can be customized)
			Power	2KW 380V
			Weight	350KG
			Machine size	17008001800mm

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa
