Automatic Multi Lane Milk Powder Sachet Packing Machine for 25g 28g 30g 35g 40g

Introduction:

This multi-lane milk powder sachet packaging machine is widely used in bulk powder products in pharmaceutical and health food industries. It is suitable for efficient packaging of milk powder, protein powder, instant coffee powder, meal replacement powder, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

FEATURES

1.Constructed for strength and dependability, the machine boasts a 304 stainless steel framework that adheres to food QS and pharmaceutical GMP cleanliness standards.

2.It’s equipped with advanced safety mechanisms to comply with company safety guidelines.

3.Engineered for peak efficiency and elegance, the machine utilizes premium electrical parts sourced from leading global brands.

4.A Siemens PLC paired with a touch screen delivers seamless automation, superior reliability, and smart functionality at impressive speeds.

5.Designed with cutting-edge automation, the machine features a servo-powered film management system and a color mark adjustment mechanism, both easily customizable via the touch screen.

6.Built for full automation and swift operation, the machine accommodates 4 to 12 rows depending on bag size.

7.It integrates effortlessly with downstream ingredient systems and automatic cartoning units, enabling a streamlined, all-in-one packaging and cartoning process.

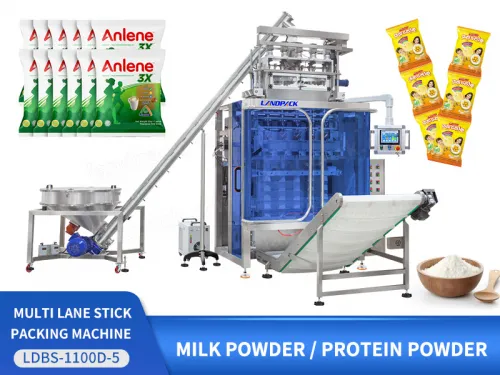

Automatic Multi Lane Milk Powder Sachet Packing Machine for 25g 28g 30g 35g 40g

WORKFLOW

1. Packing flim running system

2. Laser printer

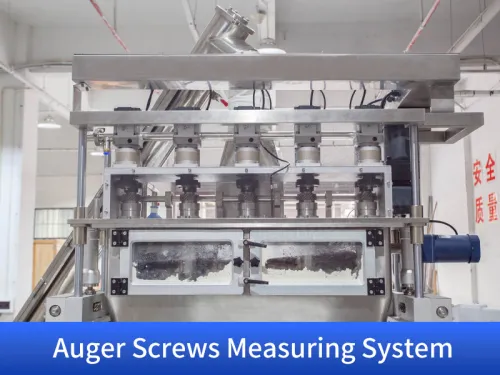

3. Auger screws measuring system

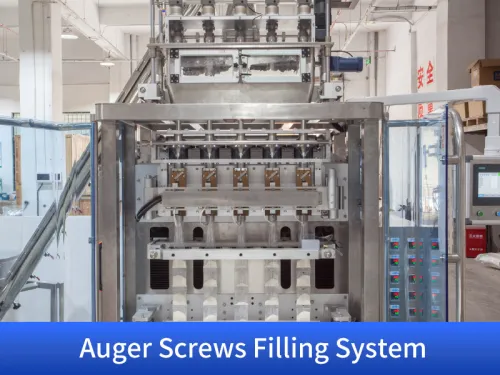

4. Auger screws filling system to fill the powder

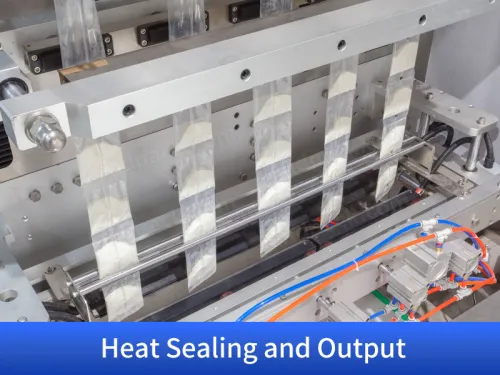

5. Heat sealing and continuously packaging for output

PARAMETER

Multi Lane Sachet Packing Machine
Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg
