High Precision Single Head Milk Powder Filling Capping Labeling Machine Line

This milk powder filling machine line also is used for filling various powder products, such as coffee powder, spice powder, protein powder, nutritional powder, medicine powder, meal replacement powder, etc.

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

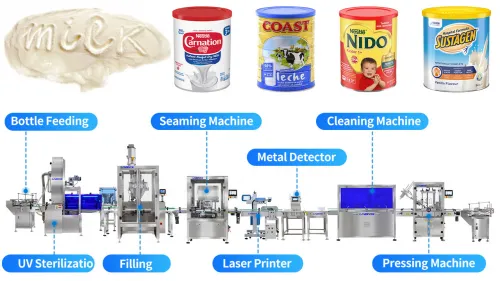

High Precision Single Head Milk Powder Filling Capping Labeling Machine Line

FEATURES

1. The use of cans or bottles of containers, no bottles and bottles are not filling, can be configured automatically into the bottle into the tank system;

2. The structure of the whole machine, reasonable layout, changing packaging varieties, cleaning, and convenience;

3. Imported servo motor, high speed, large torque, which greatly improves the accuracy of packaging;

4. Filling mouth with spinner, leak-proof, suitable for easy-flowing powder;

5. Fully automatic sensor recognition, no bottle, no filling;

6. Fully automatic pressing cap machine , saving labor;

7. The whole line of stainless steel body, is easy to clean and maintain.

6. The size of the bottle is easy to adjust, and it is equipped with an automatic lifting device.

High Precision Single Head Milk Powder Filling Capping Labeling Machine Line

PARAMETER

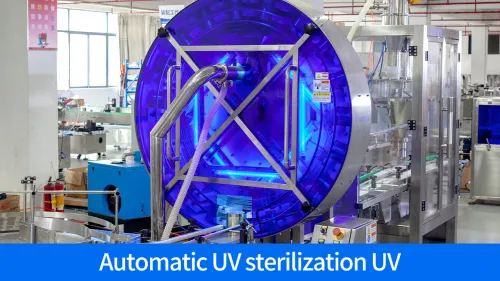

	Automatic UV sterilization UV
	Voltage	220V/50Hz（customized）
	Power	2500W
	Air pressure	0.3-0.5mpa
	Speed	10-50 BPM (can be customized)
	Bottle diameter	76-140mm
	Bottle high	80-200mm
	UV light	7
	Outline dimension	240013002200MM （L×W×H）
	Net weight	350KG

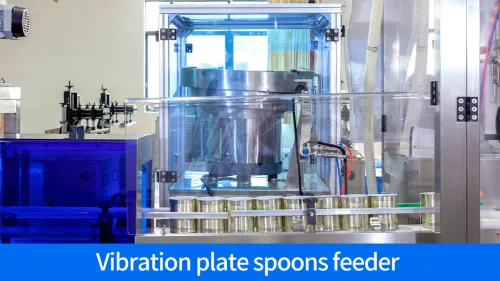

	Vibration plate spoons feeder
	Voltage	220V/50Hz（customized）
	Power	300W
	Speed	10-40 BPM （customized）
	Vibration top diameter	60-80cm
	Spoon size	customized
	Outline dimension	10008001200MM （L×W×H）
	Net weight	150KG

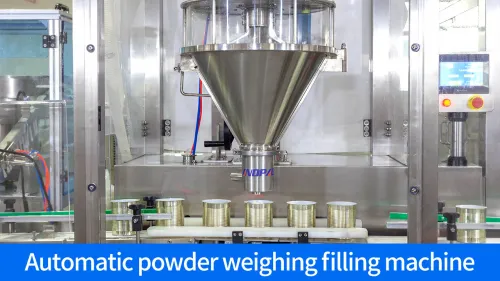

	Automatic powder weighing filling machine
	Model	LD-PAF01
	Filling Range	10-5000g (Customizable)
	Filling Speed	20-40 bottles/min
	Measurement accuracy	±1%
	Power	5 KW
	Working power supply	220V,50Hz
	Working pressure	0.6-0.8MPa
	Weight	500kg
	Size	L11782W3465.09H2523.52(mm)

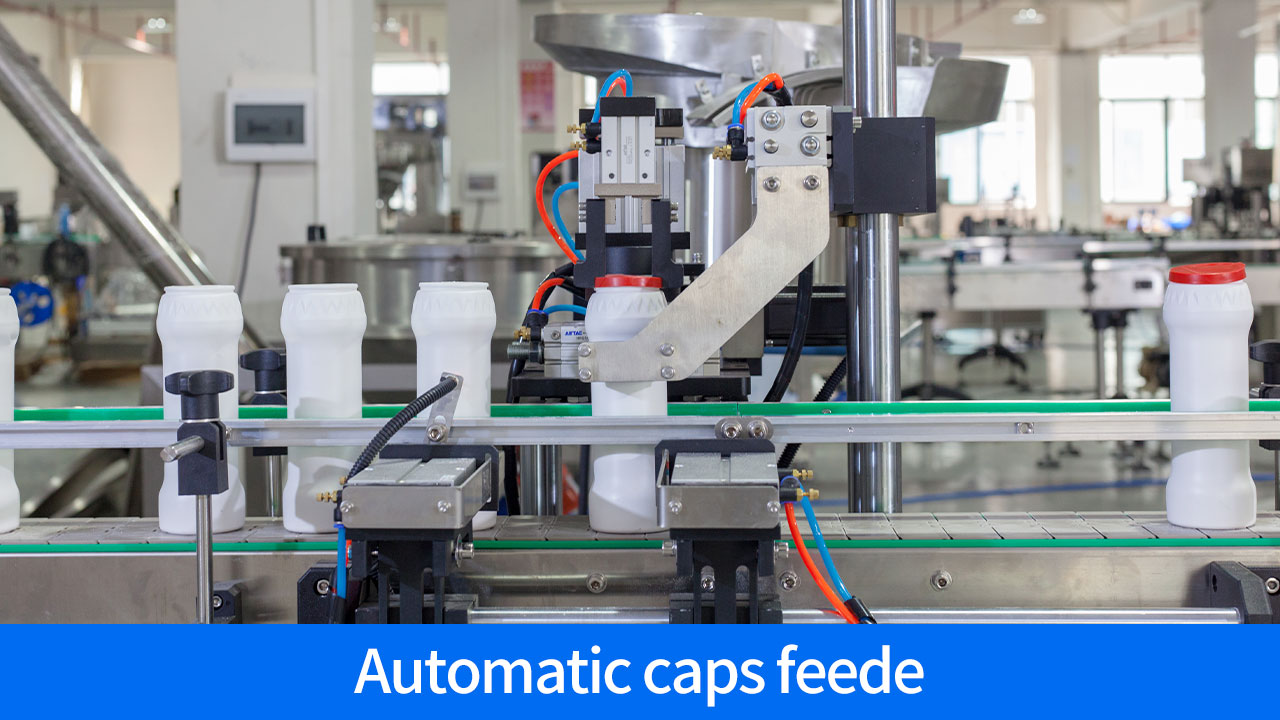

	Automatic caps feeder
	Material of machine	SS304
	Cover diameter	Diameter30-80mm
	Min Cover height	10mm
	Bottle height size	100-250mm (Customized is acceptable)
	Speed	20-25bpm(depends on material and cover size)
	Conveyor size	(L)3000(W)114(H)900mm
	Machine size	(L)2000(W)900*(H)1600mm
	Power	220V.50HZ,2KW
	Control system	PLC+Touch screen
	Air consumption	0.5-0.7mpa

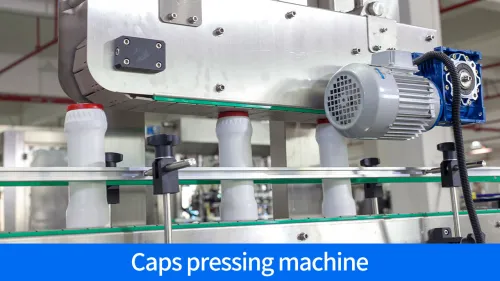

	Caps pressing machine
	Machine model	LD-XG1870G
	Working voltage	AC220V/110V 50-60HZ
	Working pressure	0.4-0.6 MPa
	Bottle height	60-270mm
	Bottle Caps Diameter	Customized
	Working speed	20-40 bottles/minute((can be customized))
	Conveyor size	About 1780115mm (LW)
	Machine size	About 17805801140mm (Machine)
	Machine weight	About 83kg+72kg (Machine+Vibratory Bowl)
	Package size	About 12207901250mm(Machine)
	Package weight	About 123kg
