Introduction:

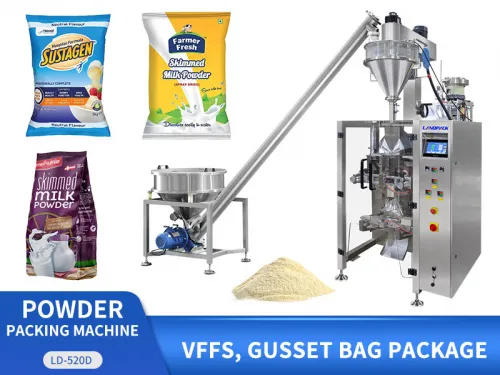

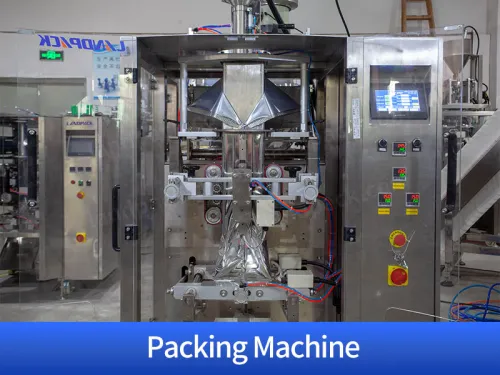

Automatic Powder Vertical Packing Machine is suitable for packing non-stick with flow property powder.Such as milk powder, flour. starch, washing powder, curry powder, spices, instant coffee, tea cornmeal, drink powder, bean powder.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
Automatic Powder Vertical Packing Machine is suitable for packing non-stick with flow property powder.Such as milk powder, flour. starch, washing powder, curry powder, spices, instant coffee, tea cornmeal, drink powder, bean powder.
FEATURES
1. English and Chinese screen display, support multi-language customization. the operation is easy and simple.
2. PLC computer control system, screw rotary measuring, more stable performance, can be adjusted any parameters not need stop machine.
3. It can stock ten group parameters, simple to change variety.

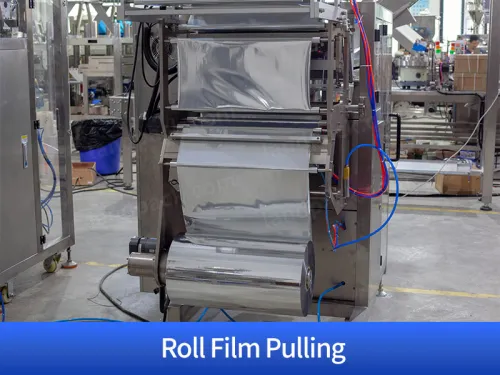

4. Adopting servo motor drawing film, the position is more accurately.
5. Independent temperature control system, precision can reach ±1℃.
WORKFLOW
Horizontal screw measure
Ribbon code printer
Color mark sensor
Bag former

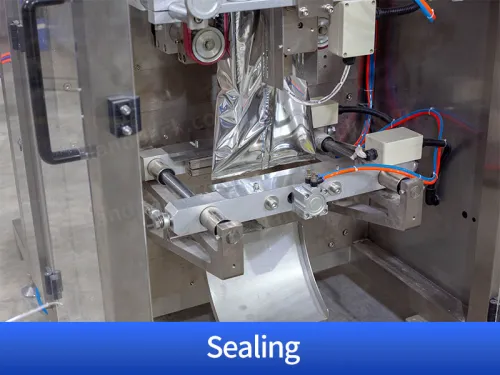

Middle sealing
Cutter
Product Output
PARAMETER
Automatic Powder Vertical Packing Machine | |||
Model | LD-320D | LD-380D | |
Film width | 120-320mm | 180-380mm | |
Bag length | 50-200mm | 60-280mm | |
Bag width | 50-150mm | 60-180mm | |
Diameter of film roll | Max.300mm | Max.320mm | |
Packing speed | 35-70bag/min | ||
Measuring range | 50-500ml | 50-750ml | |
Film thickness | 0.04-0.07mm | ||
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW | |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm | |
Machine weight | About 300kg | About 450kg |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
