High Speed 6 Line Sachet Powder Packing Machine Multi-lane Automatic Milk Powder Packing Machine

Introduction:

This machine is suitable for the packaging of various powdered materials in food, and other industries, such as: coffee powder, milk powder, matcha powder, milk tea powder, flour, corn flour, chili powder, protein powder, meal replacement powder, fruit powder, etc.


Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This machine is suitable for the packaging of various powdered materials in food, and other industries, such as: coffee powder, milk powder, matcha powder, milk tea powder, flour, corn flour, chili powder, protein powder, meal replacement powder, fruit powder, etc.

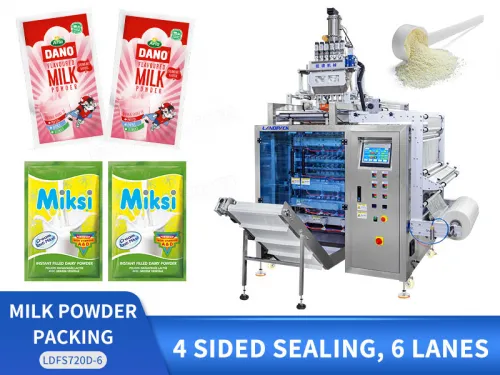

High speed 6 line Sachet Powder Packing Machine Multi-lane Automatic Milk Powder Packing Machine

FEATURES

1. It can automatically complete all tasks such as measuring, cutting, bag making, sealing, slitting, counting, and hot pressing batch numbers in the packaging process.

2. Intelligent PLC control system, touch screen operation, only need to set parameters to accurately control the operation of the system.

3. The silent stepper motor is used to make the production environment quieter and meet the requirements of environmental protection.

4. The number of lane lines is customized according to customer needs to meet different production requirements.

High speed 6 line Sachet Powder Packing Machine Multi-lane Automatic Milk Powder Packing Machine

WORKFLOW

01

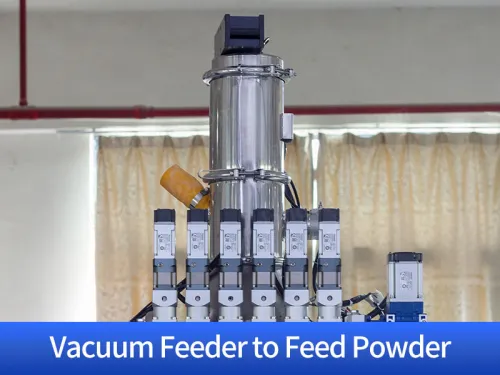

Vacuum pump feeding powder automatically,

02

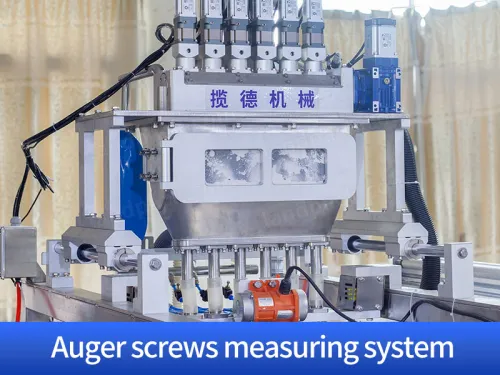

Powder measuring

03

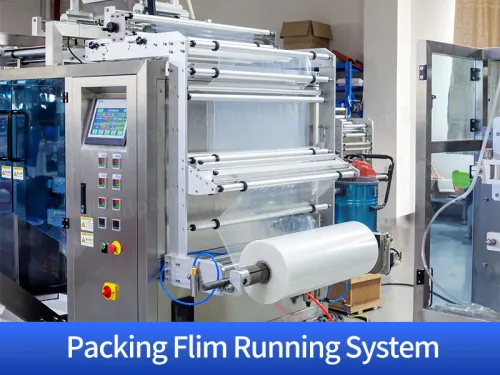

Servo motor pulling film

04

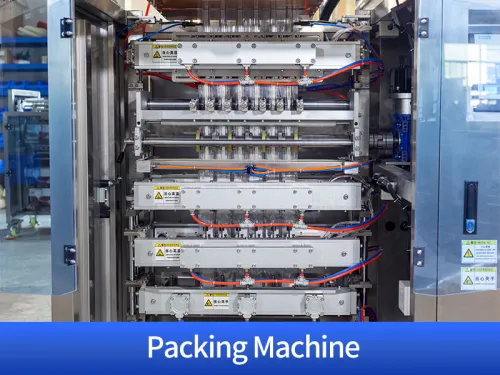

6 tracks sachet packing machine

05

Pull packing film and sealing

06

Feed powder into sachet

07

Cutting and output the finished product

08

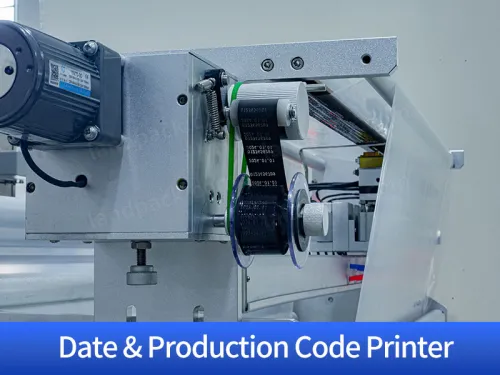

Ribbon date printing

PARAMETER

High speed 6 line Sachet Powder Packing Machine Multi-lane Automatic Milk Powder Packing Machine

Milk Powder Sachet Bag Packing Machine

ModelLD480GLD720GLD960G
Track Number4~6Track4~10Track4~12Track
Filling Method1.Volumetric cup;   2.Weigher

CapacityMax.35 cycle/min

Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/ 4 sides sealing3/ 4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting

Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg



Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
