Automatic Beans Cashew Nut Bottle Filling Capping Line

Application:

This filling line suitable for automatic bottling filling capping of various granular products. such as nuts, beans, peanuts, candy, sunflower seeds, potato chips, popcorn, almonds, dry fruit, vegetable salad, frozen food, jelly, biscuits, chocolate, filbert, corn, pet food, beef jerky, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Beans Cashew Nut Bottle Filling Capping Line

FEATURES

1. Customized bottle feeder to feed the bottles, auto delay feeding to avoid the bottles stuck and make the bottles feed one by one on the conveyor for higher efficiency, no bottles no filling for high automatically, intelligent production and save labor.

2. Customized auto feeding the caps to save labor and intelligent production.

3. The filling line has CE standards with a multi-safety warning function, contact product material parts are food grade with easy cleaning design, and the filling line is safe and reliable for production.

Automatic Beans Cashew Nut Bottle Filling Capping Line

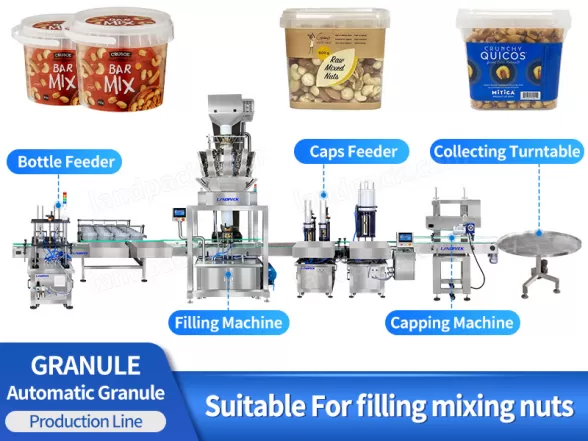

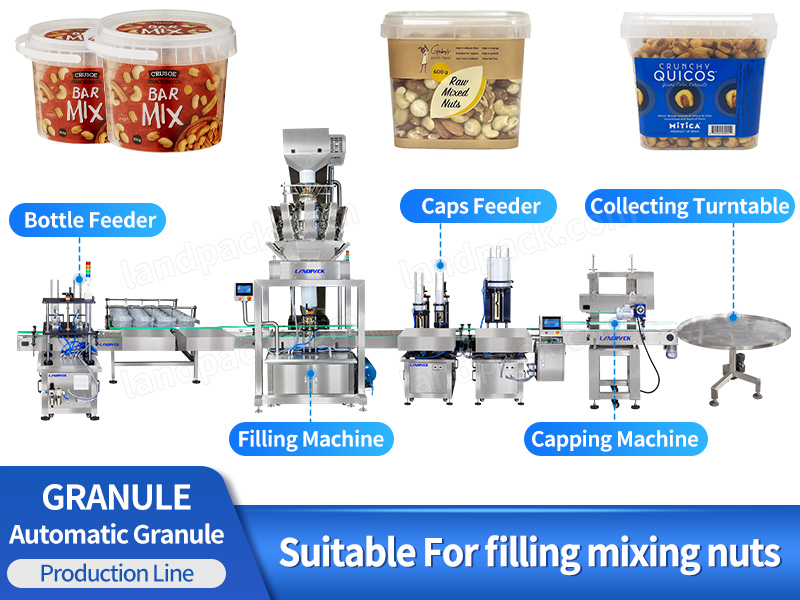

WORKFLOW

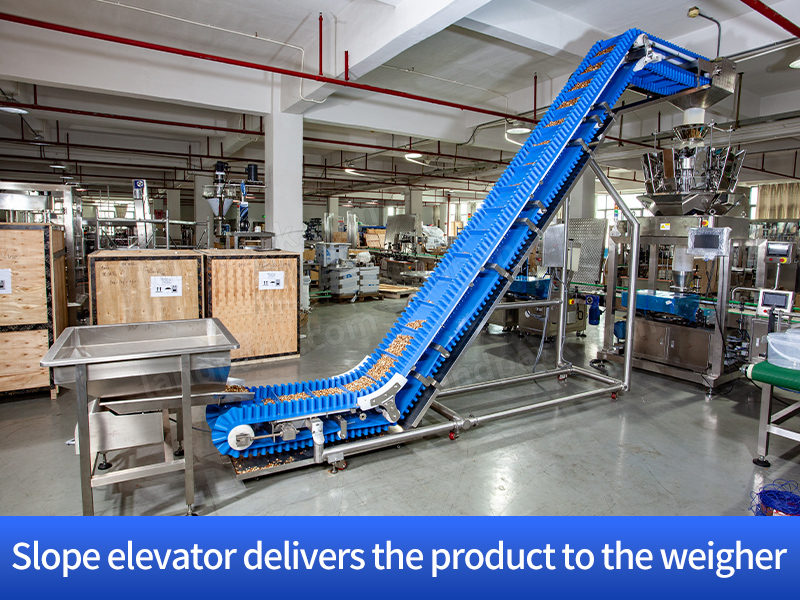

Slope elevator delivers the product to the weigher

Auto feeding the product materials to the filling machine

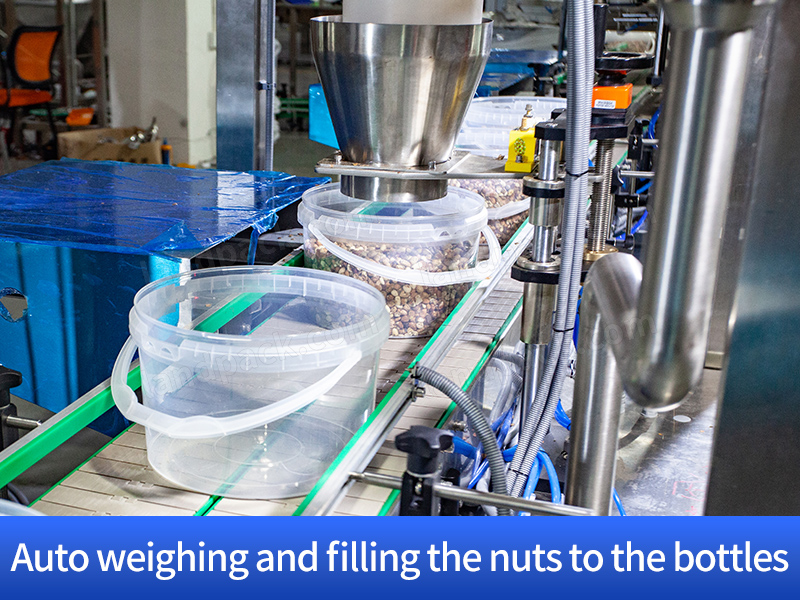

Auto weighing and filling the nuts to the bottles

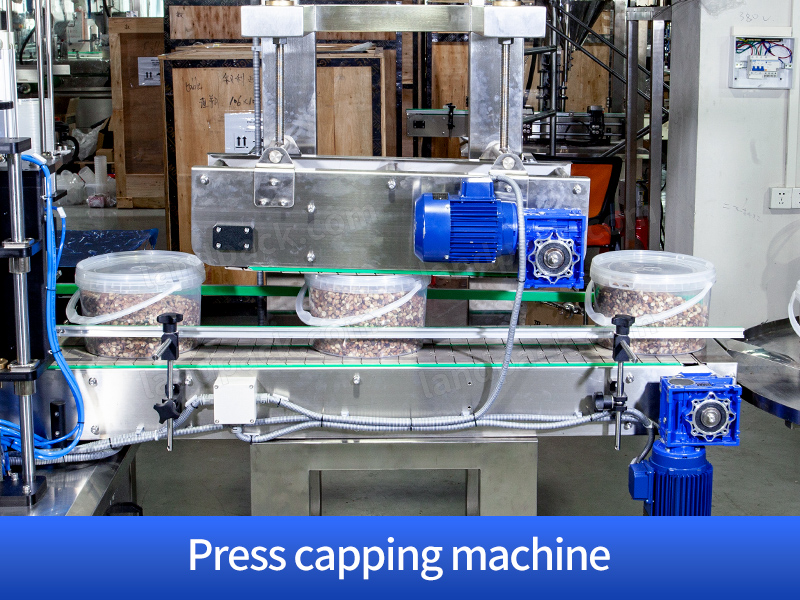

Auto feeding the caps and capping

Output and collecting the bottles

PARAMETER

Box conveyor feeding device
Machine Model	LD-LP1000N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	1000mm（Could be customized）
Suitable Bottle Diameter	20-450mm
Suitable Bottle Height	30-450mm
Working Speed	40-60bottles/min(（Could be customized）)
Package Size	123010101260mm（Could be customized）
Gross Weight	256kg
Z Type Elevator
Model	LDBZ-2L	LDBZ-5L
Conveying capacity	0-6m³/h	0-12m³/h
Operating speed	0.18m/s	0.18m/s
Single Hopper capacity	2L	5L

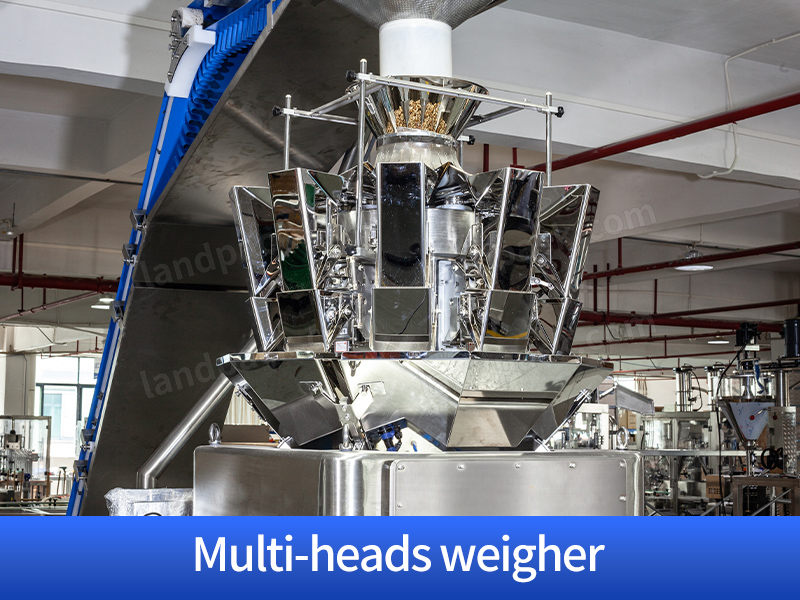

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen
Accuracy weighing and filling
Model	LF-ZP-008
Output	20-30 bottles/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Power	750W,220V,50Hz
Weight	200kg
Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg
Box Capping Machine
Capping form	Chain piece type capping
Application bottle	According to customer's product
Capping speed	30-50 bottles/min
Capping voltage	220V 50/60Hz
Air pressure	0.6-0.8MPa
Packing size	1400(L)950(W)1760(H)mm
Machine weight	About 450KG
