Nuts Cashew Peanut Filling Packing Machine / Line

Home > Applications > Granule Packing Filling Machines / Line > Nuts Cashew Peanut Filling Packing Machine / Line > Automatic Mixed Nuts Cashew Beans Premade Pouch Packing Machine

Automatic Mixed Nuts Cashew Beans Premade Pouch Packing Machine

Application:

Suitable for packing different granule material into doypack premade pouch, such as nuts, cashews, peanuts, candy, beans, granular medicine, seeds, chemical seasoning, melon seeds, pistachios, pesticides, fertilizer, feed, etc.


Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Suitable for packing different granule material into doypack premade pouch, such as nuts, cashews, peanuts, candy, beans, granular medicine, seeds, chemical seasoning, melon seeds, pistachios, pesticides, fertilizer, feed, etc.

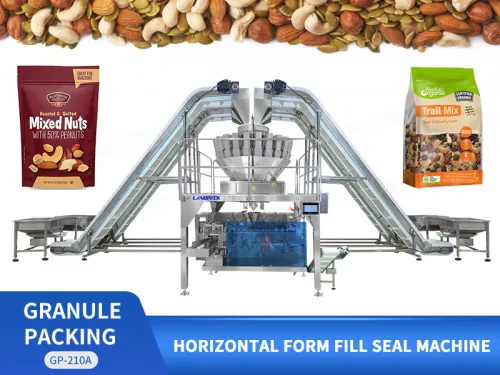

Automatic Mixed Nuts Cashew Beans Premade Pouch Packing Machine

FEATURES

1. Customized Horizontal Premade Pouch Packing Solution: Tailored for specific packaging needs.

2. Four Slope Conveyor Belts: Feeds four types of materials, washable with low-pressure water.

3. 24-Head Weigher: Independently weighs and discharges four materials simultaneously.

4. Horizontal Bag Dispensing Station: Handles premade zipper pouches.

5. Ribbon Date Printer: Prints up to three lines of text.

6. Zipper Pouch Opener: Efficiently opens zipper pouches.

7. Filling Hopper: Features a no-bag, no-filling mechanism.

8. Sealing Device: Includes an empty-bag, no-sealing function.

9. Conveyor Belt Outlet: Transports finished products out.

Automatic Mixed Nuts Cashew Beans Premade Pouch Packing Machine

WORKFLOW

01

4 sets of slope conveyor belt

02

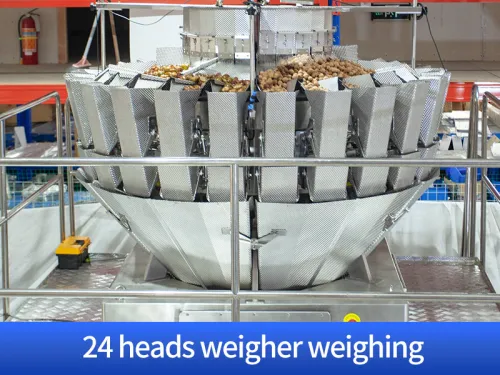

24 heads weigher weighing

03

Horizontal feeding bag conveyor

04

Ribbon code print

05

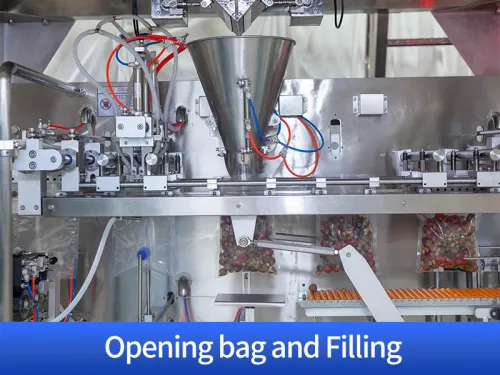

zipper pouch opener

06

Filling hopper

07

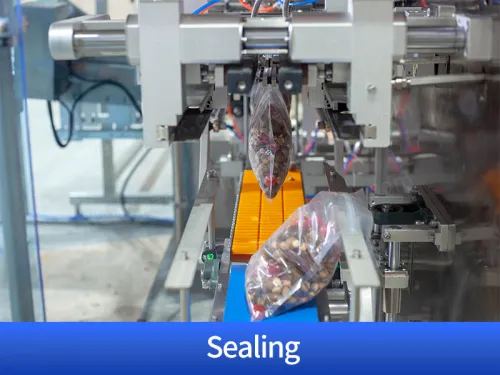

Sealing device

08

Conveyor belt outlet

PARAMETER

Automatic Mixed Nuts Cashew Beans Premade Pouch Packing MachineAutomatic Mixed Nuts Cashew Beans Premade Pouch Packing Machine
TypeLDSP-160LDSP-210LDSP-260
Bag Type3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size110-230mm*80-160mm(L*W)100-210mm/110-320mm(L*W)100-260mm/110-320mm(L*W)
Filling Range10g-100g10g-1kg10g-3kg
Packing Speed20-45bags/min(speed is determined 20-50bags/min (speed is determined20-50bags/min (speed is determined
by the product filling quantity)by the product filling quantity)by the product filling quantity)
Machine weight800KG900KG1000KG
Total Power2.0KW2.0KW2.0KW
Work Flow1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling 5.Heating sealing     6.Output of product
Dimensions1750mm X 1285mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)2140mm X 1366mm X 1360mm(L*W*H)
CollocationScrew metering, screw elevator

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
