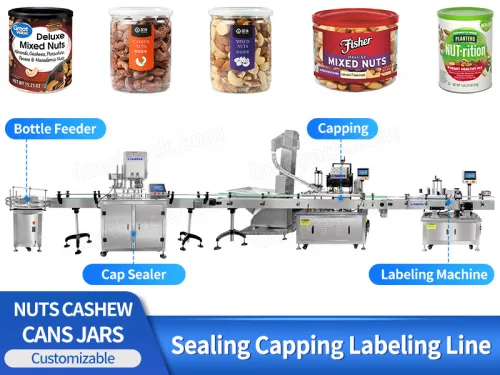

Automatic Nuts Peanut Tin Can Capping And Labeling Machine Filling Line

Application:
It is used for canned food, sealing, capping, and labeling the cans. Can effectively reduce air contact and extend the shelf life, such as goji berries, nuts, raisins, popcorn, pistachios, and other foods.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is used for canned food, sealing, capping, and labeling the cans. Can effectively reduce air contact and extend the shelf life, such as goji berries, nuts, raisins, popcorn, pistachios, and other foods.

Automatic Nuts Peanut Tin Can Capping And Labeling Machine Filling Line

FEATURES

1. The unique design of the can seaming machine roller of this production line can be used for both main and backup purposes; the sealing roller adopts four-roll seal sealing, and the sealing roller never rusts. It is made of chromium steel with extremely high hardness.

2. This production line adopts a lifting type automatic cover, with fast cover speed, stable operation, low noise and wide application range.

3. The design of automatic production line is extremely east to be make up the operation line combined with the filling system,weighing filling system or labeling system.

4. Adopting four-wheel clamping, the structure is simple and reasonable, the performance is stable and reliable, and the work efficiency is high. It solves the drawbacks of the traditional capping machine such as slipping and damage to the cap.

Automatic Nuts Peanut Tin Can Capping And Labeling Machine Filling Line

WORKFLOW

Empty Bottle Feeding

Canning Container

Capping

Labeling

Finished Product Output

PARAMETER

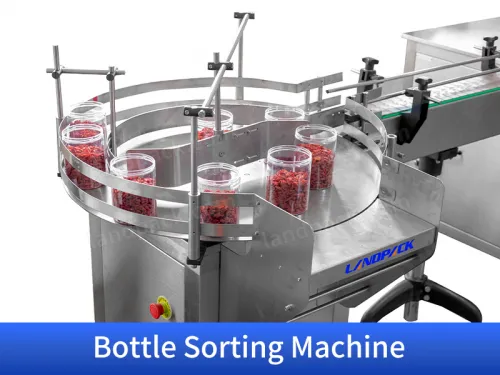

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

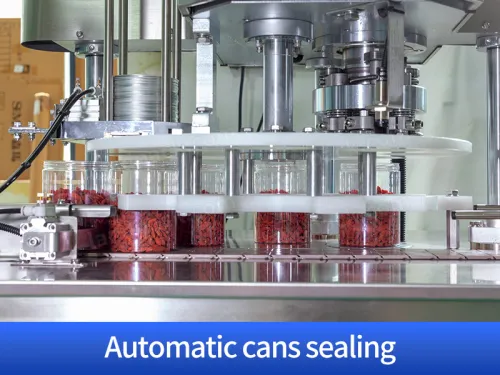

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz

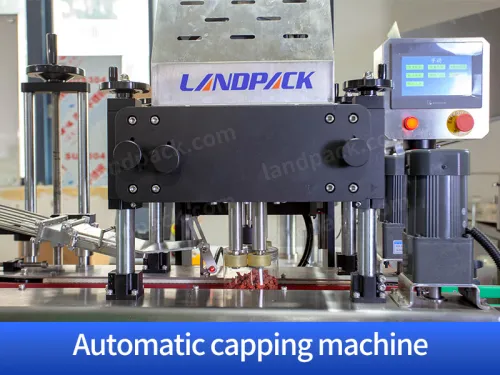

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

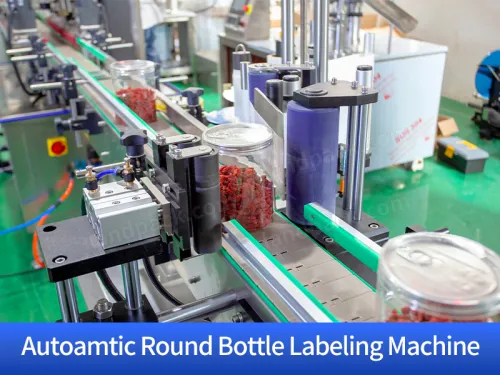

Automatic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
