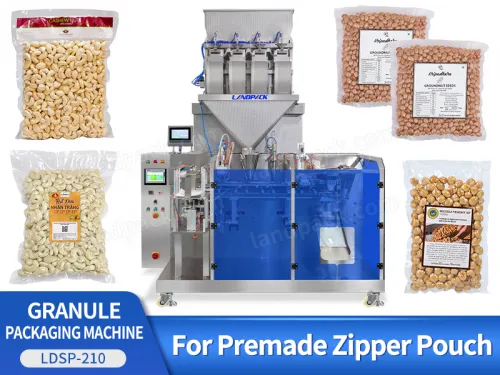

Fully Automatic Horizontal Nut Peanut Cashew Doypack Premade Pouch Packing Machine

Application:

Suitable for packing grains and particles into stand up pouch doypack pouch premade pouch. such as peanut, candy, beans, granular medicine, seed, chemical seasoning, melon seed, pistachios, pesticide, fertilizer, feed, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Horizontal Nut Peanut Cashew Doypack Premade Pouch Packing Machine

FEATURES

1. Flexible Machine suits for different bag sizes.

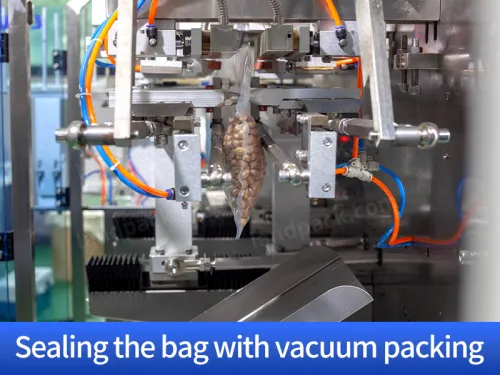

2. Suits for the nut peanut and Vegetable with vacuum packing.

3. Stable and high-speed running.

4. Suitable for various prefabricated bags: standing bags, four-sided sealing bags, zippered bags, etc.

Fully Automatic Horizontal Nut Peanut Cashew Doypack Premade Pouch Packing Machine

WORKFLOW

Granule Material Feeding

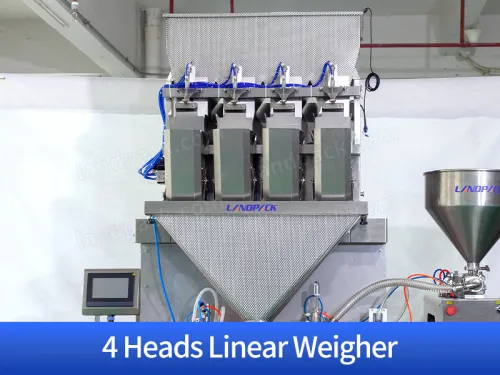

Granule Material weighing

Premade Pouch Opening Filling Sealing

Finished Product Output

PARAMETER

Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW

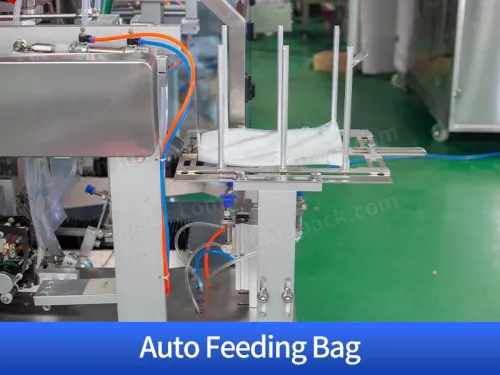

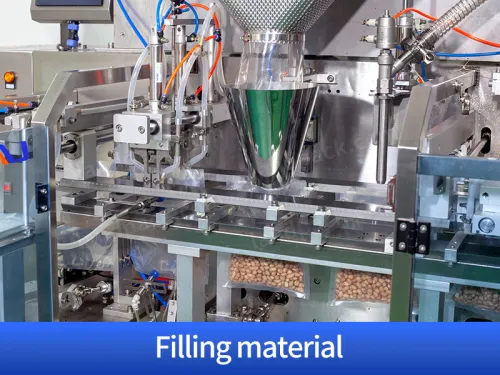

Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling
Work Flow					Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
