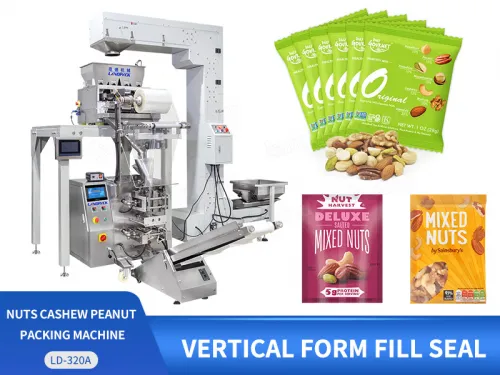

High Precision Linear Weighing Packing Machine For Nut Cashew Beans

Application:

High precision linear weighing packing machine(LD-320AS) for nut cashew, can quickly automate the packaging process and improve production efficiency. Suitable for nut, cashew, dry food, beef jerky, canady, chips, snack, peanut, pistachio, pet food, almond, beans, sugar, salt, ect.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Precision Linear Weighing Packing Machine For Nut Cashew Beans

FEATURES

1. Products dosing, Filling, Laminate heat sealable pouch making and sealing;

2. Stainless steel 304 structure and surface;

3. Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;

4. Simple changing of pouch former, to adapt different pouch size requirement;

5. Intelligent temperature controlling configuration, ensure the artistic and neat sealing;

6. Configure with packaging film pre-pulling device, to enable stable pouch making;

7. easy to change the packaging film;

8. Mesure at high accuracy : The weigher weight the material;

9. Take up small place , Match the small weigher, elevator and support platform, take up little place;

10. Cost-effective, Compare with the LD-420 main packer, the LD-320 model could reach the demand of the snack packing with low cost.

High Precision Linear Weighing Packing Machine For Nut Cashew Beans

WORKFLOW

Feeding by the elevator

4 heads weigher to measure

Form and seal the bag

Output the finished product

PARAMETER

Semi Automatic Granule Vertical Packing Machine
Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
