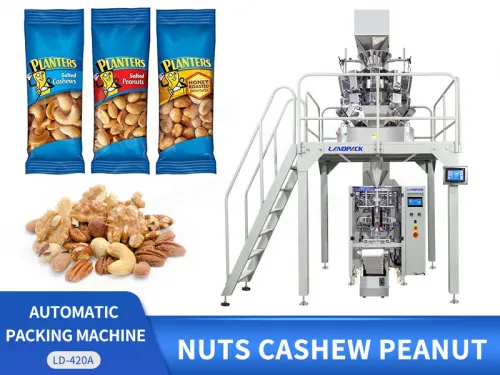

High Speed Vertical Automatic Pouch Sachet Snack Peanut Cashew Nuts Packaging Machine Packing Machine For Nuts

Application:

Suitable for irregular lumpy and granular materials, such as nut, candy, puffed food, small biscuits, fried dried fruit, sugar, frozen food hardware and plastic products, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for irregular lumpy and granular materials, such as nut, candy, puffed food, small biscuits, fried dried fruit, sugar, frozen food hardware and plastic products, etc.

High Speed Vertical Automatic Pouch Sachet Snack Peanut Cashew Nuts Packaging Machine Packing Machine For Nuts

FEATURES

1.Hygienic and Safe: The equipment is made of 304 stainless steel that meets food QS and pharmaceutical GMP hygiene standards, and is equipped with safety features in line with enterprise safety management requirements.

2.Accurate Temperature Control: The independent temperature control system ensures accurate temperature control, resulting in beautiful and smooth sealing.

3.Intelligent Control: The equipment uses servo motor film pulling, PLC control, and touch screen control for automatic control, resulting in high reliability, intelligence, speed, and efficiency.

Automatic Vertical Oatmeal Grain Form Filling Sealing Packaging Machine

WORKFLOW

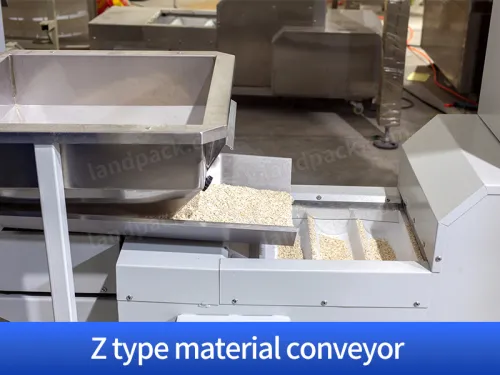

Z-type material conveyor

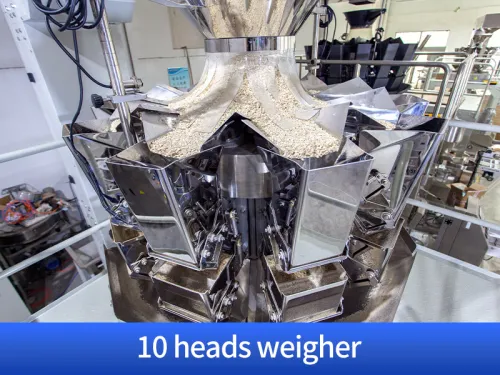

10 heads weigher and packing

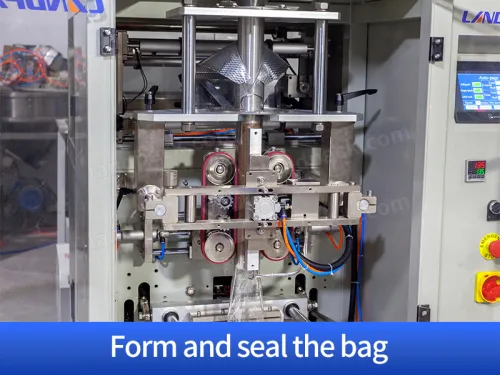

Form and seal the bag

Output the finished product

PARAMETER

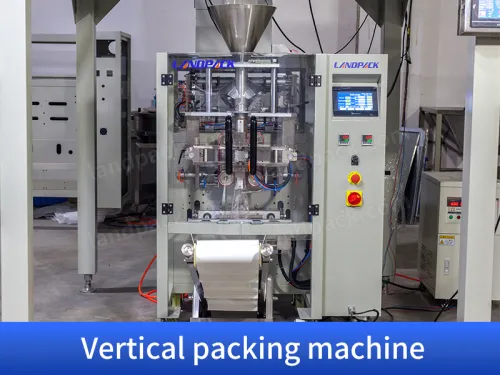

Automatic Granule Vertical Packing Machine
Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
