Application:
This Automatic Filling Line can be customized to fill various products,such as : juice, honey, fruit jam, butter, olive oil, tomato sauce, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
This Automatic Filling Line can be customized to fill various products,such as : juice, honey, fruit jam, butter, olive oil, tomato sauce, etc.
FEATURES
1. The linear machine suits for all kind of bottle. It could be don't need to change any spear part when you change different size bottle,just adjust the machine.
2. The whole set of machine is controlled by the touch screen and PLC controlling system, so it is very easy for the worker to operate the machine well.
3. Movable capping machine can identify the bottle and track the capping, which can increase the capping speed.
4. High speed capping machine by servo motor control.
5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.
6. Machine body and the parts contacting liquid are made of stainless steel, full compliance with GMP standard.

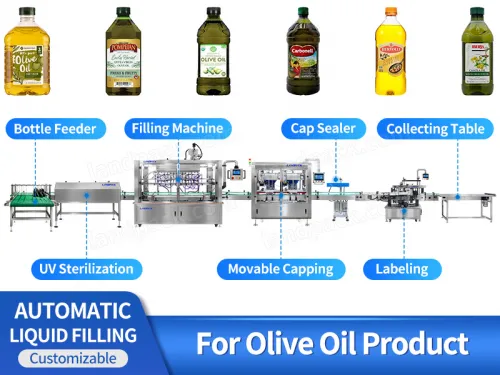

WORKFLOW
Empty Bottle Feeding
Gear Pump Filling
Capping
Aluminum Foil Sealing
Finished Product Output
PARAMETER

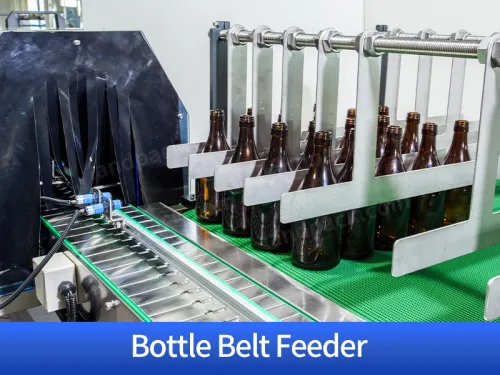

Automatic Bottle feeder | ||||
Machine Model | LD-LP800N | |||
Power Supply | 220V/110V, 50-60Hz, 200W | |||
Turntable Diameter | 800mm | |||
Suitable Bottle Diameter | 20-100mm | |||
Suitable Bottle Height | 30-320mm | |||
Working Speed | 40-60bottles/min(depending on bottle size) | |||
Package Size | 1230*1010*1260mm | |||
Gross Weight | 141kg |

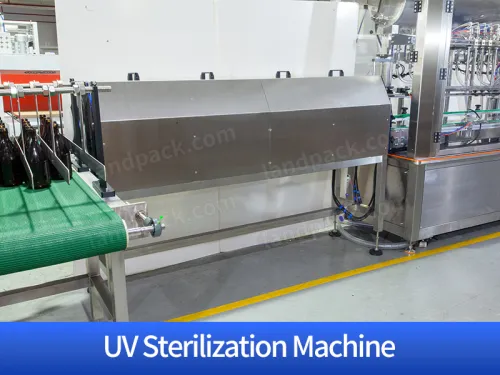

UV Sterilization Machine | ||||
Bottle diameter | 30-130mm(customized) | |||
Sterilization way | UV disinfection | |||
Washing speed | 14-24bottles pet mintue | |||
Machine body | SS 304 | |||
Machine voltage | 220V(can be customized) 3.5KW | |||
Machine weight | 580kg | |||
Machine size(L*W*H) | 2000*1000*1200mm |

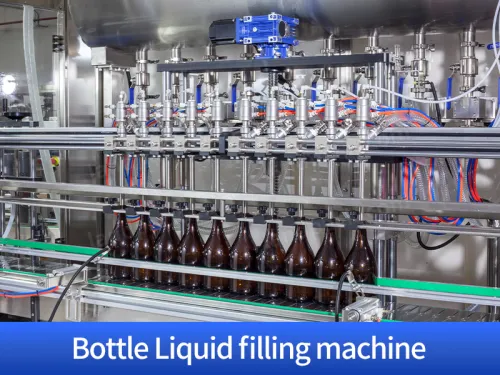

Bottle Liquid filling machine | |||||||
Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 | |||
Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | |||
Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min | |||
Measurement Accuracy | ±1% | ±1% | ±1% | ±1% | |||
Power | 2KW | 2.5KW | 3.5KW | 5KW | |||
Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | |||
Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | |||
Weight | 600kg | 650kg | 800kg | 800kg | |||
Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |

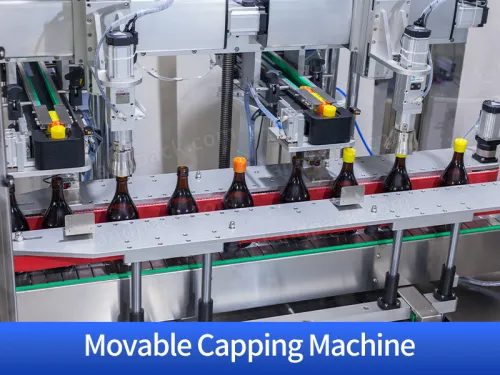

Movable Capping Machine | ||||||
Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-MG-250(Two wheel Movable Capping) | |||
Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-120Bottles/min | |||
Bottle cap diameter | Φ22mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | Φ18mm-Φ80mm(Could be customized) | |||
Bottle diameter | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | Φ35mm-Φ140mm(Could be customized) | |||
Bottle sealing height | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | 38mm-300mm(Could be customized) | |||
Power | 1.5KW | 2KW | 1.5KW | |||
Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |||
Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa | |||
weight | 250kg | 350kg | 300kg | |||
Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |

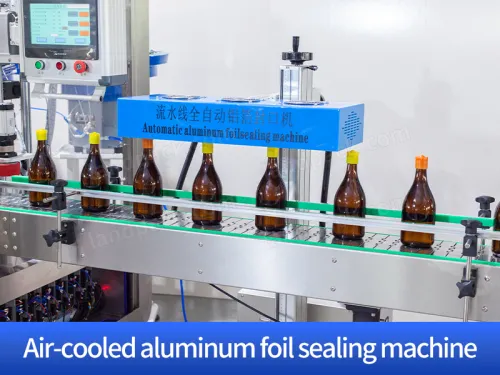

Air-cooled aluminum foil sealing machine | |||||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |||
Applicable bottle diameter | Φ10-200mm(Could be customized) | Φ10-200mm(Could be customized) | |||
Applicable bottle height | H:40-300mm(Could be customized) | H:40-300mm(Could be customized) | |||
Speed | 0-30bottle/min | 0-10bottle/min | |||
Bottle material | Glass, ceramics, plastics, metals | Glass, ceramics, plastics, metals | |||
Voltage | 220V,50HZ | 220V,50HZ | |||
Power | 1500W | 1200W | |||
Dimension | 1500*800*1750mm | 1200*600*1550mm |

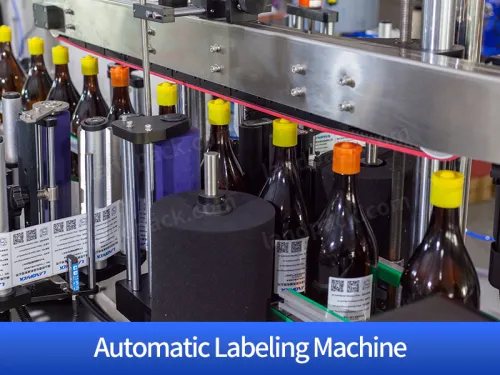

Automatic Labeling Machine | |||||
Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |||
Label length | 20mm~300mm | 20mm~300mm | |||
Label width/height | 20mm~200mm(can be customized) | 20mm~200mm(can be customized) | |||
Bottle width | 30-150mm(can be customized) | 30-150mm(can be customized) | |||
Roll Label outer diameter | 300mm | 300mm | |||
Roll Label inner diameter | 76mm | 76mm | |||
Accuracy | ±1mm | ±1mm | |||
Label speed | 40-100pcs/min | 60-120pcs/min | |||
Conveyor speed | 5~25m/min | 15~20m/min | |||
Suitable label type | Adhesive sticker label(transparent label need customized) | Adhesive sticker label(transparent label need customized) | |||
Working air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |||
Voltage | 220V can be customized 4KW | 220V can be customized 4KW | |||
Weight | 350KG | 450KG | |||
Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm |
I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
