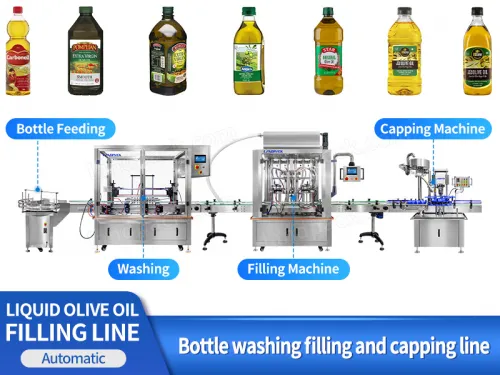

Automatic 6 Head Olive Oil Bottle Washing Filling Capping Machine Line

Application:

The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as olive oil, alcohol, fruit juice, mouthwash, hand sanitizer, body wash, face cream, juice, edible oil, sauce, daily necessities, mobility liquid, detergent, automobile oil, glass water, shower gel, shampoo, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 6 Head Olive Oil Bottle Washing Filling Capping Machine Line

FEATURES

1. Automatic bottle washing filling capping procession line.

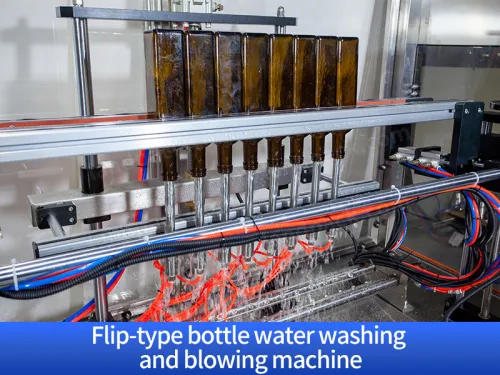

2. Adopts flip-type water washing and blowing integrate machine.

3. Machine adopts 6 heads piston pump device, fast speed and high filling precision.

4. High speed capping machine by servo motor control.

5. When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.

6. Machine body and the parts contacting liquid are made of stainless steel, full compliance with GMP standard.

Automatic 6 Head Olive Oil Bottle Washing Filling Capping Machine Line

WORKFLOW

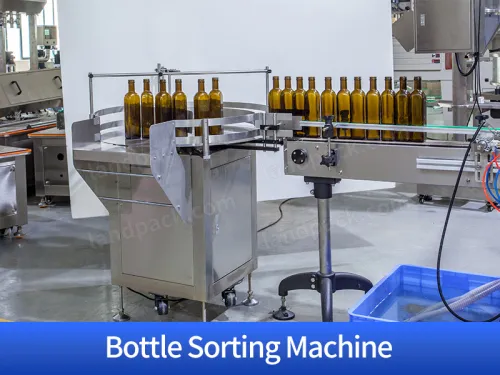

Empty Bottle Feeding

Bottle Washing

Liquid Piston Filling

High-Speed Capping

PARAMETER

			Automatic bottle washing machine
			Machine Model	LD-LP600W
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	20-50bottles/min(（Could be customized）)
			Package Size	123012101260mm
			Gross Weight	880kg

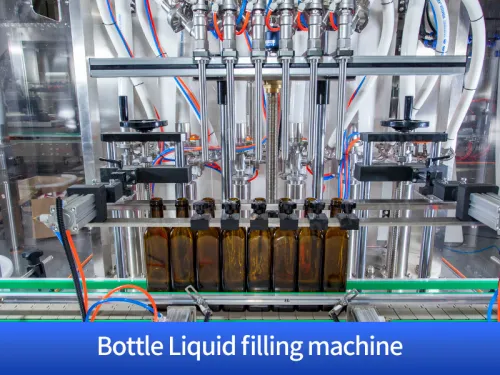

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

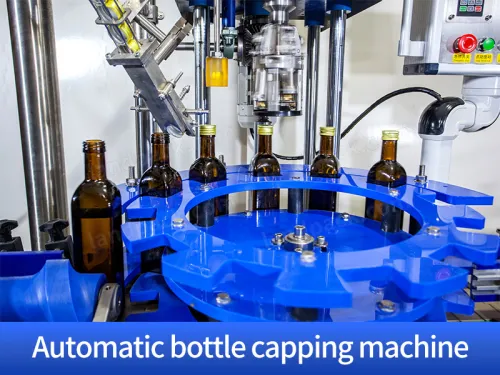

			Automatic bottle capping machine
			Machine Model	LD-LP440Z
			Power Supply	110/220V 50-60HZ 1KW
			Capacity	1000bph
			Suitable cap size	φ25-38mm（Could be customized）
			Suitable bottle height	About 150-320mm
			Machine size	About 355017002250mm
			Package size	About 172016002380mm
			Package weight	680kg
