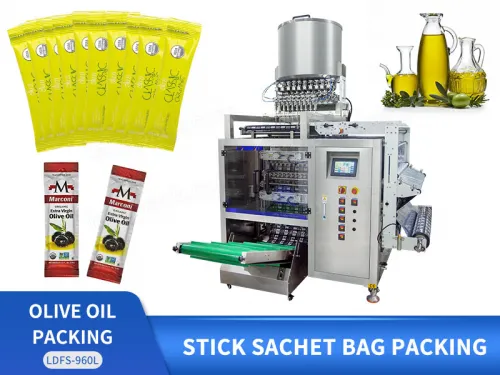

Automatic Multi Lanes Liquid Stick Sachet Filling Packing Machine For Olive Oil

Introduction:

Our versatile multi-lane stickpack machines can accommodate from 4 to 10 lanes to form different shapes of stickpack. Perfect for products olive oil, ketchup, shampoo, shower gel, fruit juice.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Our versatile multi-lane stickpack machines can accommodate from 4 to 10 lanes to form different shapes of stickpack. Perfect for products olive oil, ketchup, shampoo, shower gel, fruit juice.

Automatic Multi Lanes Liquid Stick Sachet Filling Packing Machine For Olive Oil

FEATURES

1. PLC controller, high function and control the whole machine’s work steps.

2. The easy-to-use air-shaft film roller system allows quick film changes, reducing downtime and boosting productivity.

3. Equipped with a multi-head ribbon date printer, our machine ensures accurate and efficient date printing for each packaging lane.

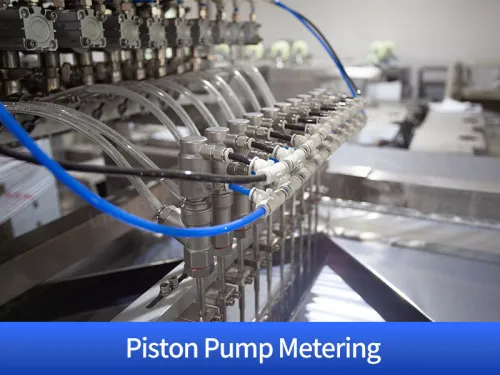

4. Our anti-leaking filling nozzles offer precise metering, preventing spills and waste, which saves costs and enhances product quality.

5. For strong package integrity, our machine features a dual horizontal sealing mechanism that keeps products fresh and leak-proof.

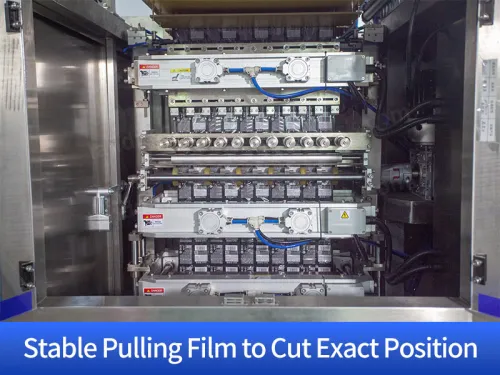

6. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position

Automatic Multi Lanes Liquid Stick Sachet Filling Packing Machine For Olive Oil

WORKFLOW

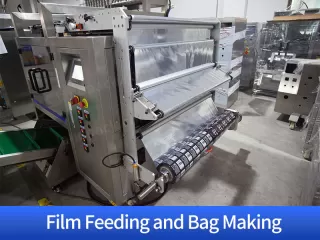

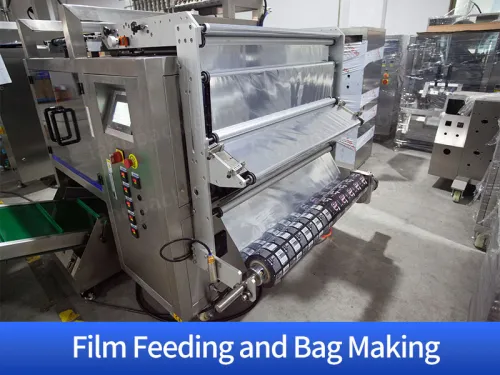

Film Unwinding

Batch Coding

Film Slitting

Bag Formation

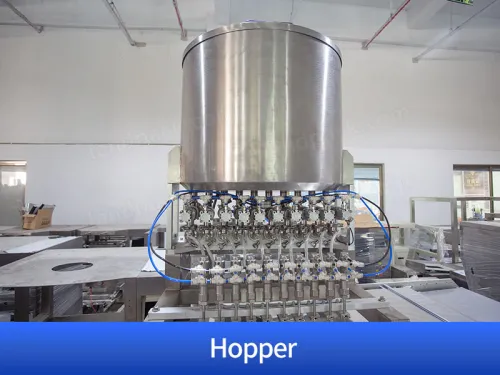

Olive Oil Filling

Sealing

Cutting

PARAMETER

			Multi-Lane Olive Oil Filling Machine
			Model	LDFS960L-4
			Lane Number	4 lanes
			Bag Width	12-90mm
			Bag Length	40-165mm
			Packing Speed	30-50 Bags/Min/Lane
			Control System	PLC +Servo +Touch Screen
			Cutting Type	1.Flat Cutting,2.Zigzag Cutting 3.Continuous Cutting 4.Customized Special Shap Cutting
			Optional device	Date Coder,Air-filling Device,Tear Notch Device
