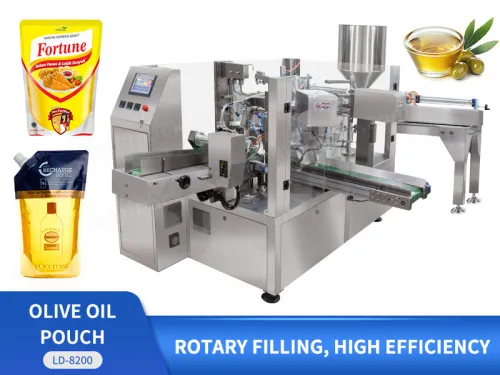

Automatic Olive Oil Rotary Doypack Packing Machine Premade Pouch Filling And Sealling Machine

Introduction:

It is suitable for all kinds of liquid packing , such as olive oil, paste, shampoo, detergent, hand sanitizer, sauce, honey, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc. Applicable to packaging of products in the fields of food, daily chemicals, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

It is suitable for all kinds of liquid packing , such as olive oil, paste, shampoo, detergent, hand sanitizer, sauce, honey, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc. Applicable to packaging of products in the fields of food, daily chemicals, etc.

Automatic Olive Oil Rotary Doypack Packing Machine Premade Pouch Filling And Sealling Machine

FEATURES

1. Rotor Pump for feeding and measuring the high viscousity Liquid Products.

2. 100L SS316 Storage Hopper for big Tank Liquid Storage No Liquid With Feeding Alarm Function.

3. 8 pre setting Liquid Capacity easy to Operate on the touch screen.

4. Simens PLC Control system keep the full set machine running stable.

5. Rotary doypack machine has the functions of no bag no filling & no filling no sealing.

6. Filling Range from 100ml-2500ml.

7. High Speed 25-40bags per min saving labour cost.

Automatic Olive Oil Rotary Doypack Packing Machine Premade Pouch Filling And Sealling Machine

WORKFLOW

01

Piston metering device

02

Horizontal bags feeding

03

Date printing

04

Zip lock openning

05

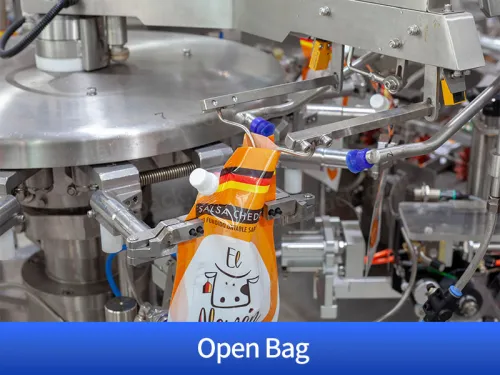

Up/down bag opening

06

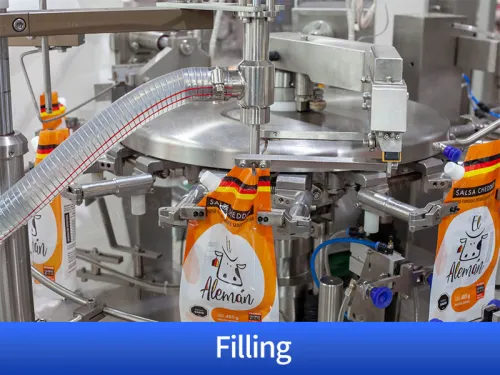

Automatic filling

07

Automatic sealing

08

Finished product ouput

PARAMETER

Automatic Olive Oil Rotary Doypack Packing Machine Premade Pouch Filling And Sealling MachineRotary Doypack Oil Filling Macine
TypeLD-8200L/ 8240L/ 8300L
Bag Size100-300mm L: 100-450mm
Filling Volume5-2500g (Depending on type of products)
Capacity25-60 bags/min (The speed depends on type of products and packaging material used)
Package AccuracyError≤±1%
Compress Air Requirement≥0.8m³/min supply by user

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
