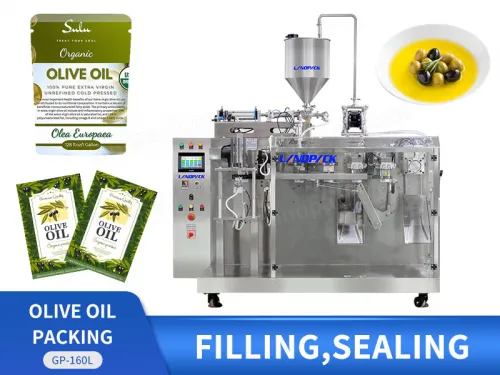

Automatic Premade Bag Standing Pouch Edible Oil Olive Oil Filling Packing Machine

Introduction:

This machine can measure, fill, and bag seal, which can be done automatically and is suitable for olive oil, detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverages, tomato sauce.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This machine can measure, fill, and bag seal, which can be done automatically and is suitable for olive oil, detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverages, tomato sauce.

Automatic Premade Bag Standing Pouch Edible Oil Olive Oil Filling Packing Machine

FEATURES

1.Rapid change of the specificationgs of th bag,bag width can be automati-cally adjusted by one button.

2.Single shaft and the CAM design:packing speed faster;more stable operation;maintenance easier and reduce defective rate.

3.Modular heating, temperature control more accurate,heating fault have alarm prompt.

4.Advanced design idea,reduce the material loss,ensure the stability of enquipment opration,extend the operating life of the enquipment.

Automatic Premade Bag Standing Pouch Edible Oil Olive Oil Filling Packing Machine

WORKFLOW

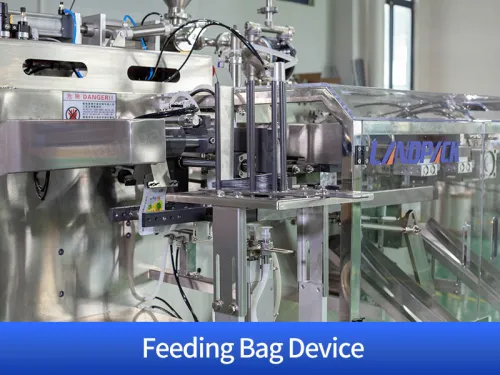

Pouch Loading

Pouch Picking

Pouch Opening

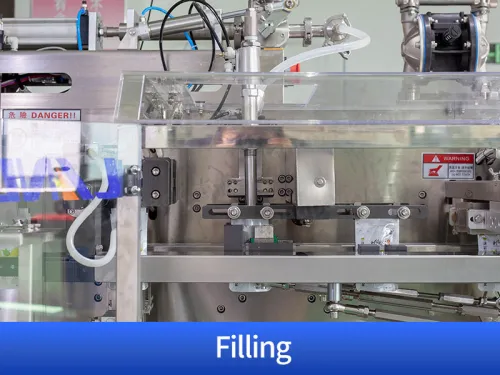

Liquid Filling

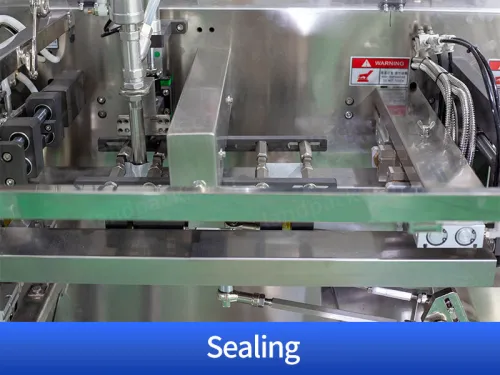

Pouch Sealing

PARAMETER

Olive Oil Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW

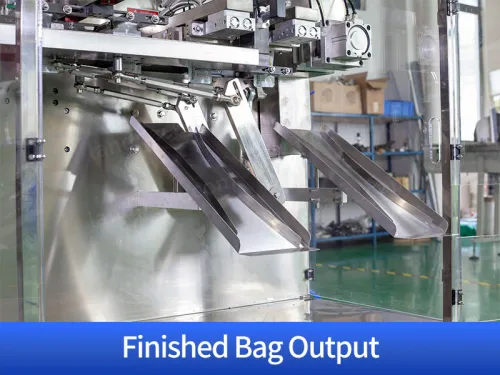

Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
