Automatic Aluminium Tube Paint Filling And Sealing Machine With Dust Cover

Introduction:

The machine is suitable for products which choose tubes as packaging containers. The equipment fills such materials as paint,ointments, creams, gels or fluids with high viscosity into the tube

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The machine is suitable for products which choose tubes as packaging containers. The equipment fills such materials as paint,ointments, creams, gels or fluids with high viscosity into the tube

Automatic Aluminium Tube Paint Filling And Sealing Machine With Dust Cover

FEATURES

1.Compact design and auto tube feed. Driving part fully-closed.

2.Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

3.Tube washing and feeding conducted pneumatically, accurate and reliable.

4.Auto picketage affected by photoelectric inductance.

Automatic Aluminium Tube Paint Filling And Sealing Machine With Dust Cover

WORKFLOW

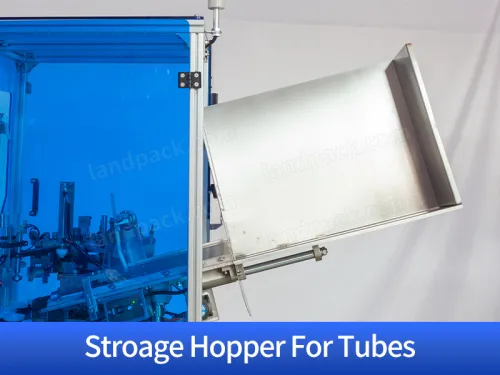

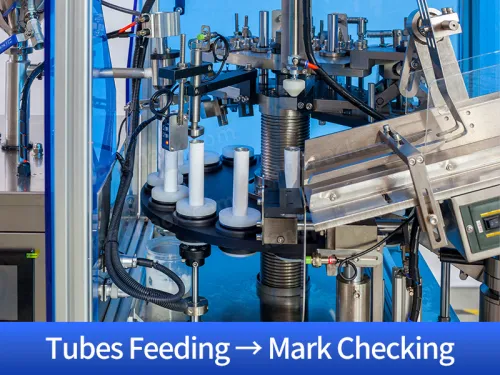

Empty Tube Feeding

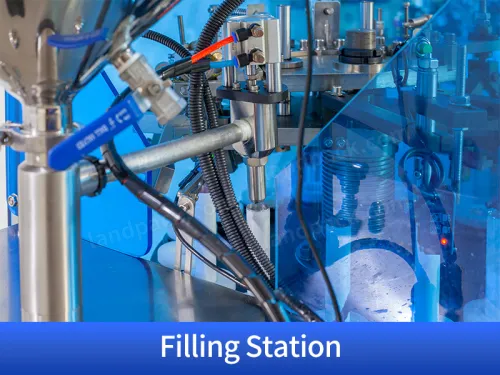

Liquid Paint Filling

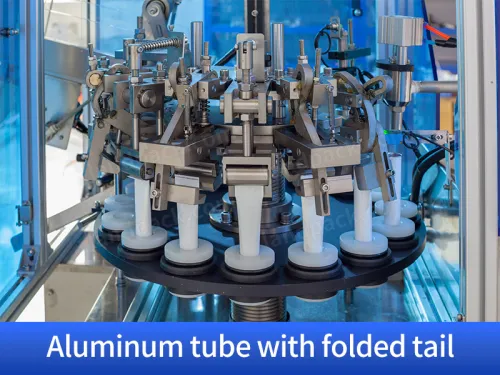

Tube Sealing

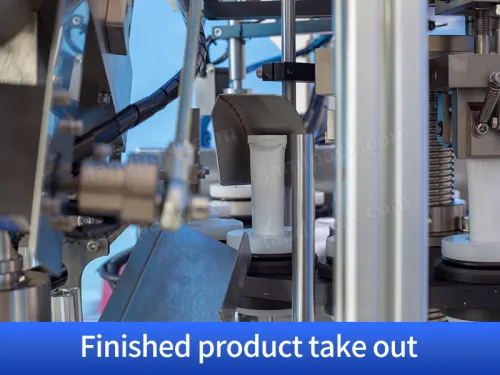

Finished Output

PARAMETER

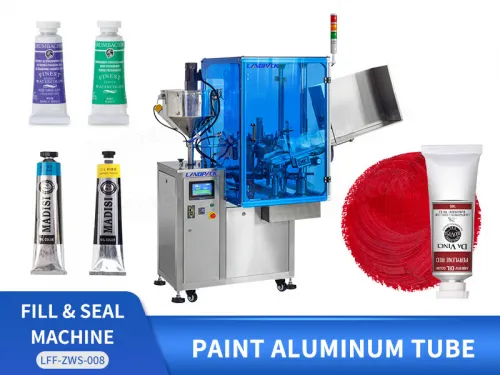

		Aluminium Tube Filling And Sealing Machine
		Model	LFF-ZWS-008
		Tube material	Aluminum / Metal tube
		Tube diameter	φ15—φ70
		Tube length	50—180（customizable）
		Filling volume	40—60ml/pcs（adjustable）
		Filling accuracy	≤±1%
		Product capacity	3600—43600 pcs/h（adjustable）
		Working pressure	0.55—0.65Mpa
		Motor power	2KW (380V/220V 50Hz/60Hz, three phase)
		Working Position	10Automatic Aluminum Tube Filling And Sealing Machine with Cover Pcs
