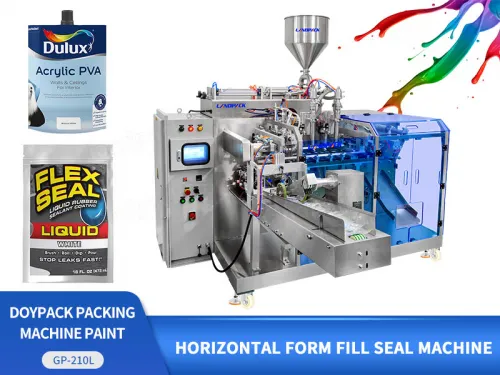

Automatic Paint Horizontal Doypack Packing Machine With Explosion-Proof Device

Introduction:

This horizontal doypack packing machine is suitable for paint, sauce, tomato sauce, olive oil, salad dressing, chili sauce, jam, peanut butter, chocolate sauce, shampoo, etc. Suitable Pouch: various premade pouches, and doypack, such as 3/4 side seal bags, stand-up bags, spout bags, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Paint Horizontal Doypack Packing Machine With Explosion-Proof Device

FEATURES

1. Horizontal bag loading device, the bag can hold a large number.

2. Double-piston metering pump, wide metering range.

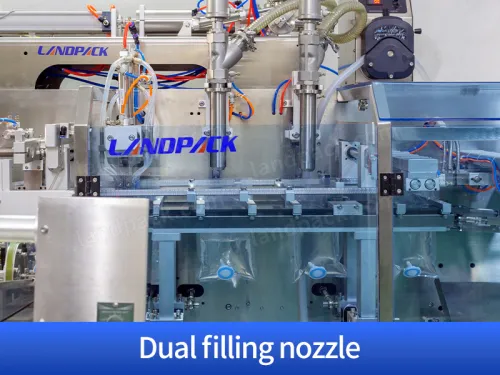

3. Double feeding nozzles to increase the packaging speed.

Automatic Paint Horizontal Doypack Packing Machine With Explosion-Proof Device

WORKFLOW

Automatic Bags Feeding

Automatic Bags Open

Automatic Filling

Automatic Bags Sealing

Products Out

PARAMETER

Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min(speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag, 2. Pick up the bag(coding), 3.Open the bag up and down, 4.Filling, 5.Heating sealing, 6.Output of product
Dimensions	1750mm1285mm1360mm(LWH)	2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator
