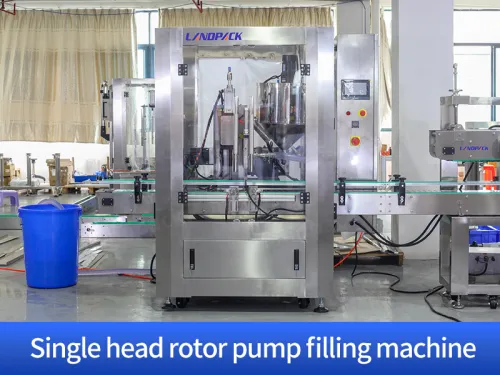

Automatic Single Head Gear Pump Paint Plastic Bottle Filling Line With Cap Pressing Machine

Introduction:

This type of filling machine is suitable for liquid, paint,ink,solvent,pesticide,oil and detergent. It is suitable for plastic barrel/cans etc. This model has the function of automatic filling, covering, lid pressing and weighing in one machine.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Single Head Gear Pump Paint Plastic Bottle Filling Line With Cap Pressing Machine

FEATURES

Automatic grade; semi-automatic, button control

Automatic weight checking system, precise filling.

Filling, cover pressing and cover cliping in one machine

Pneumatic lifting and lid pressing system

Automatic Single Head Gear Pump Paint Plastic Bottle Filling Line With Cap Pressing Machine

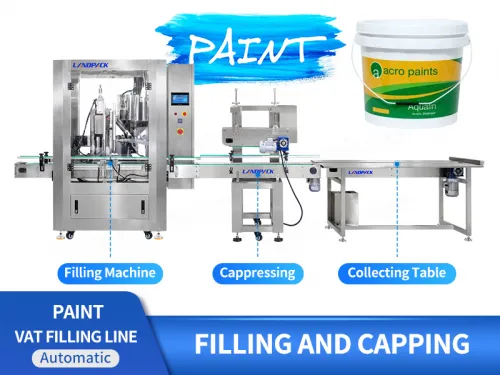

WORKFLOW

Empty Bottle Feeding

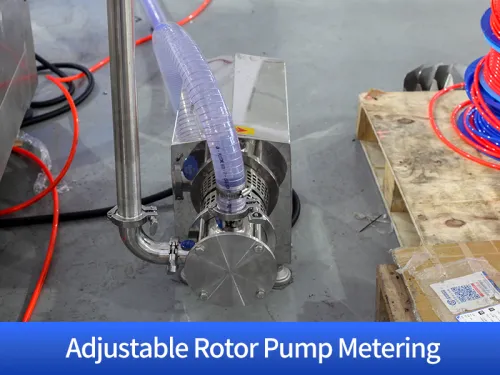

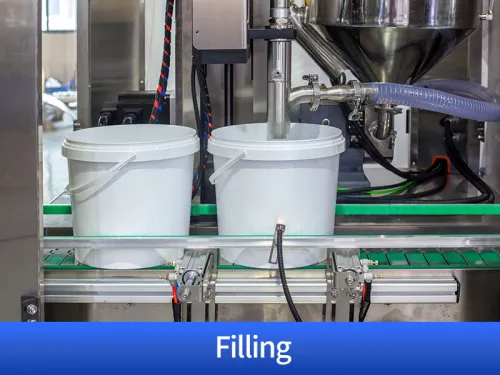

Rotar Pump Filling

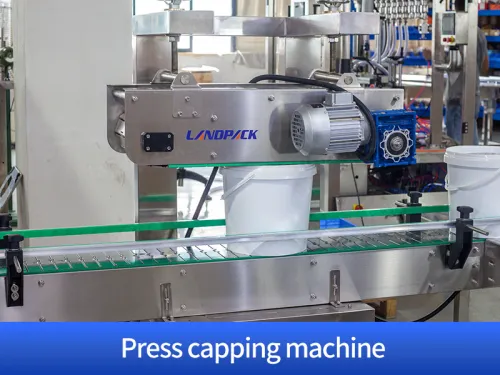

Capping and Pressing

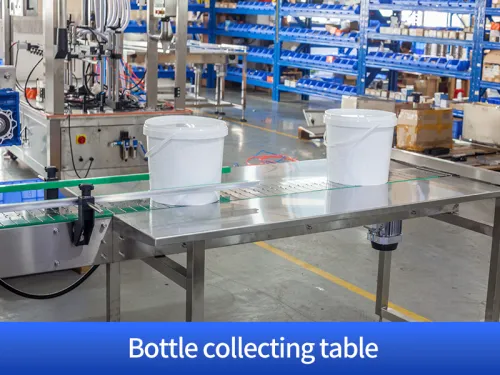

Finished Product Output

PARAMETER

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

			Capping machine
			Material of machine	SS304
			Cover diameter	Diameter30-180mm
			Min Cover height	10mm
			Bottle height size	100-500mm (Customized is acceptable)
			Speed	10-20 bpm(depends on material and cover size)
			Conveyor size	(L)3400(W)114(H)900mm
			Machine size	(L)2500(W)900*(H)1600mm
			Power	220V.50HZ,2KW
			Air consumption	0.5-0.7mpa
