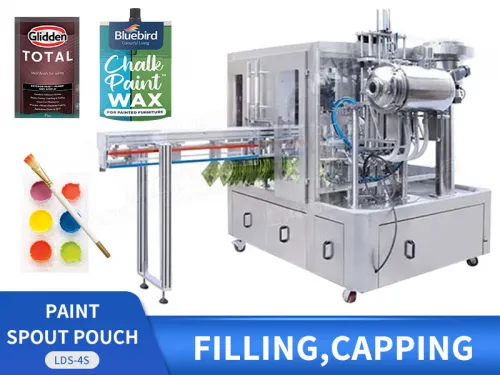

High Speed Dyestuff Paint Spout Pouch Filling Capping And Packing Machine

Introduction:

This filling capping and packing machine is suitable for paint, laundry detergent, puree, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.


Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

This filling capping and packing machine is suitable for paint, laundry detergent, puree, sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc. Premade pouch can be spout pouch, nozzle bag, 3-side-seal, gussette pouch, standup pouch with zipper or no-zip-lock.

High Speed Dyestuff Paint Spout Pouch Filling Capping And Packing Machine

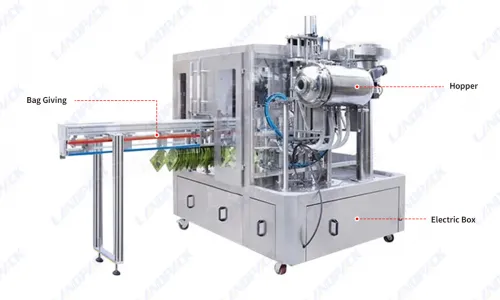

FEATURES

1. Landpack standup pouch filling capping machine, are automatic high-speed filling production line, from the bag, filling, cover, gland are fully automatic operation.

2. Electrical and pneumatic components are used both at home and abroad brand-name manufacturers of products, stable quality, long life

3. Important mechanical parts are used advanced precision machining center production, so the mechanical with a good, smooth work, advanced quality and reliable performance.

4. The machine adopts the new design more energy-efficient, the structure is reasonable and beautiful, adopts the acid-proof stainless steel material, each section can run independently, conforms to the hygienic standard, is convenient for the maintenance and is the automatic production line which is the self-standing bag product.

High Speed Dyestuff Paint Spout Pouch Filling Capping And Packing Machine

WORKFLOW

01

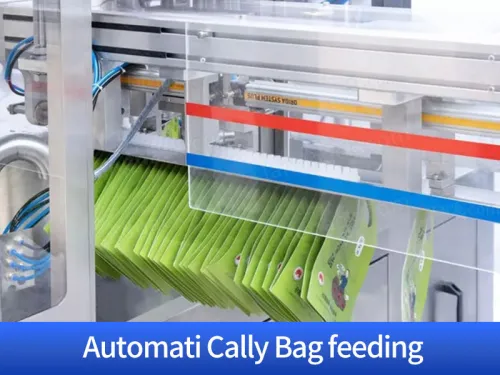

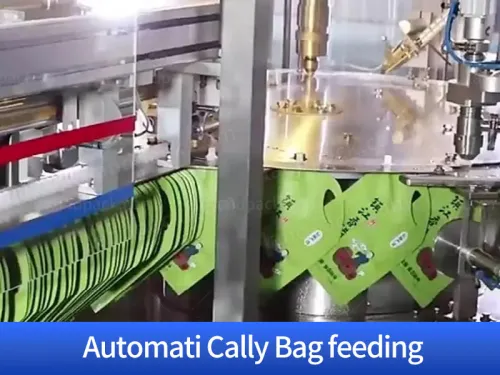

Premade Pouch Feeding

02

Automatic Filling

03

Automatic Capping

04

Products Outing

PARAMETER

High Speed Dyestuff Paint Spout Pouch Filling Capping And Packing MachineModelLDS-25LDS-4SLDS-6S
Filling nozzles246
Capping heads246
Bag typePouch with spout and cap
Filling materialliquids, paste, oil, juice etc material that get ability to flow.
Filling range10-350 ml
Capacity (for 250g filling)1500-2000BPH3500-4000BPH4500-6000BPH
Power supplyAC 220V/380V 50/60Hz (can be customized based on different voltages)
Weight900kg1100kg1200kg
