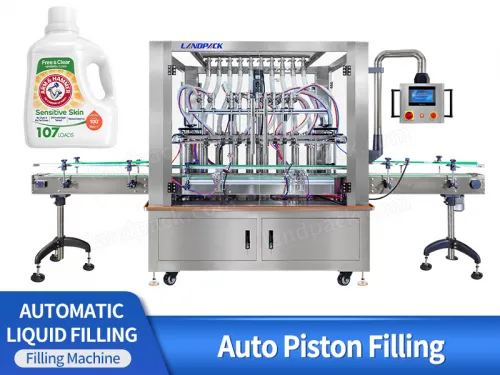

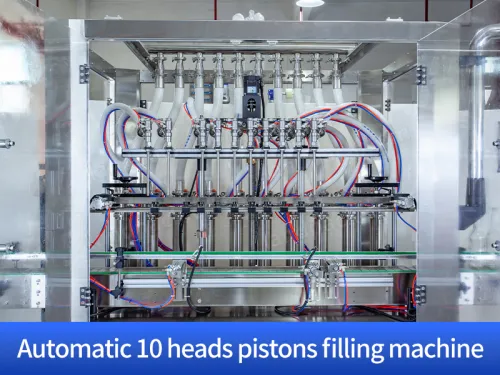

Automatic 10 Heads Piston Filling Paste Filling Bottle Machine

Introduction:

This series of automatic 10 heads piston filling machines is used for filling liquid and cream products with different viscosity. It is widely uesed in daily chemical, food, grease and other industries.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This liquid filling machine is suitable the following industries:

* Beverage Filling Machine Line (such as water, juice, beer, liquor, vodka, wine etc.)

* Food Filling Machine Line (such as olive oil, honey, sauce, oil, chocolate, vinegar etc.)

* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc.)

* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc.)

Automatic 10 Heads Piston Filling Paste Filling Bottle Machine

FEATURES

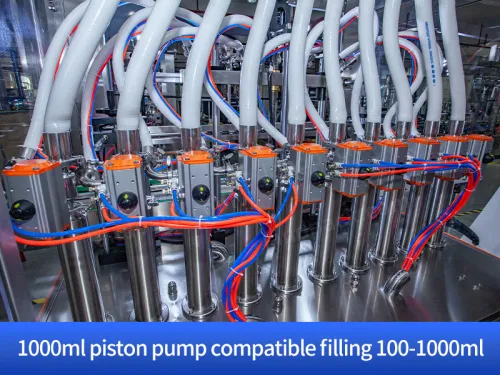

Piston-type linear filling with high precision filling, easy installation and commissioning, cleaning and maintenance is simple, no dripping.

The machine is applied to bottles or other containers with different sizes and shapes, and suitable for liquid and paste filling.

Filling accuracy is high,within filling range,the filling volume and filling speed can be set at your option.

It is widely used for food and beverage industry, chemical industry, cosmetic industry, pharmaceutical industry, and etc.

Automatic 10 Heads Piston Filling Paste Filling Bottle Machine

WORKFLOW

Automatic Filling

PARAMETER

Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
